3. Parts replacement
44983601TH Rev.1
3-16 /

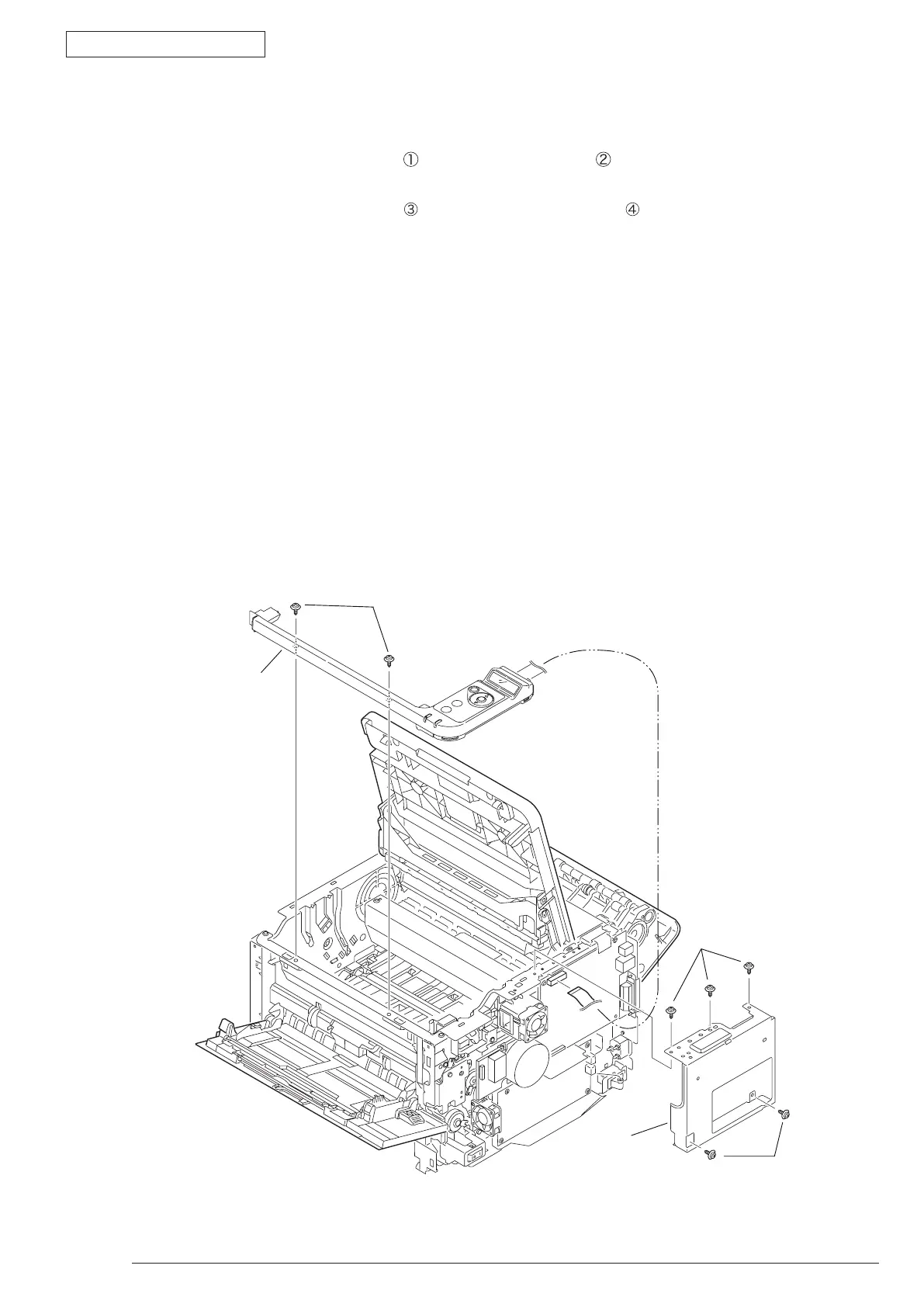

3.3.11 Cover Assy OPE
(1) Remove the Cover-Side-R and Cover–Side-L. (Refer to 3.3.4 / 3.3.5)
(2) Remove the five screws (Silver)
. Remove the Plate-Shield .
(3) Remove the FFC cable from the CU-board.
(4) Remove the two screws (Black)
. Remove the Cover-Assy-Ope .
(5) Installing is performed by the reverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
③
④
①
①
②
