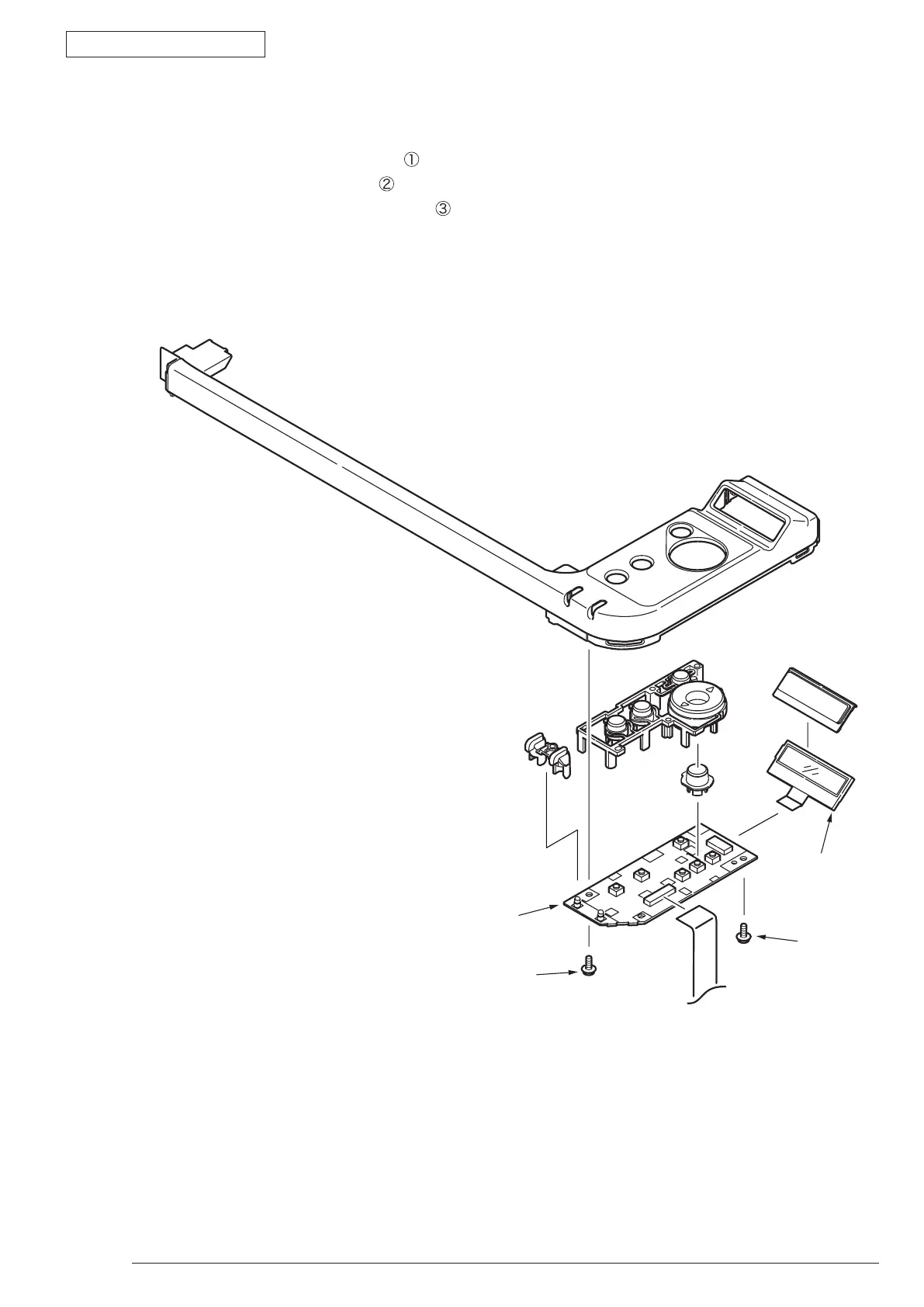

3.3.12 Ope PCB Assy ( B431 )
(1) Remove the Cover Assy Ope. (Refer to 3.3.11)
(2) Remove the two screws (Black)
.
(3) Remove the Ope PCB Assy
.
(4) Remove the FFC cable and the LCD
.
(5) Installing is performed by the reverse procedure with removing.
③
②
①
①
