Oki Data CONFIDENTIAL
3. Parts replacement
44983601TH Rev.1
3-18 /

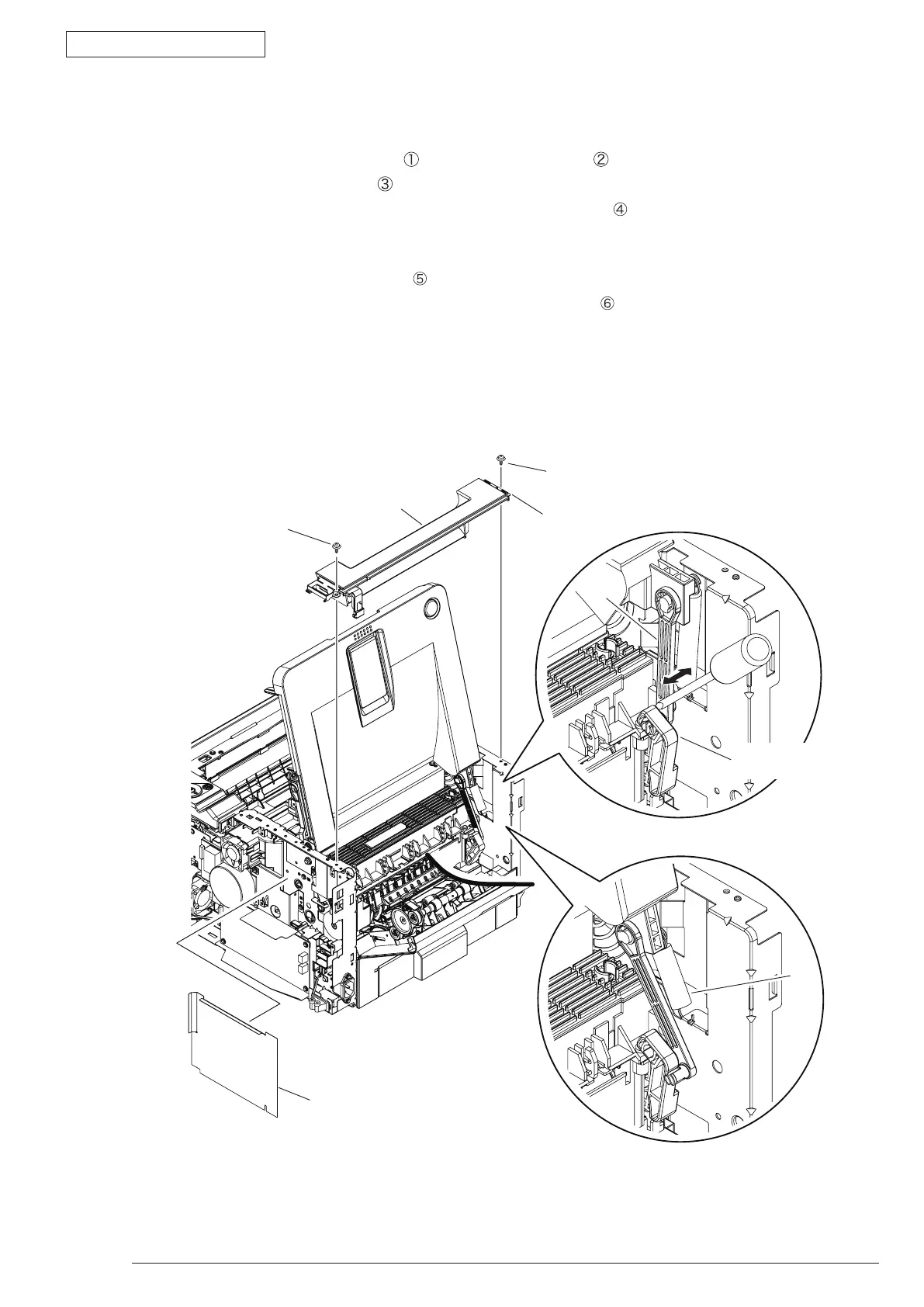

3.3.13 Cover Assy Stacker
(1) Remove the Cover-Side-R and Cover–Side-L. (Refer to 3.3.4 / 3.3.5)
(2) Remove the two screws (Silver)
. Remove the Cover-Eject .
(At this moment, Plate-Rear
is also removed.)
(3) With the Cover Assy Stacker closed, detach Lever-Link-Fuser
(on both sides) from the Fuser Assy
release lever by using a flat-head screwdriver or something.
(4) Remove the CU-Board. (Refer to 3.3.6)
(5) Remove the Sheet-Insulation-CU
.
(6) With the Cover Assy Stacker opened, remove Spring-Stacker
(on both sides).
⑥
④
⑤
③
②
①
Closed the Cover Assy Stacker
Opened the Cover Assy Stacker
Release lever
To Next Page
