3. Parts replacement
44983601TH Rev.1
3-25 /

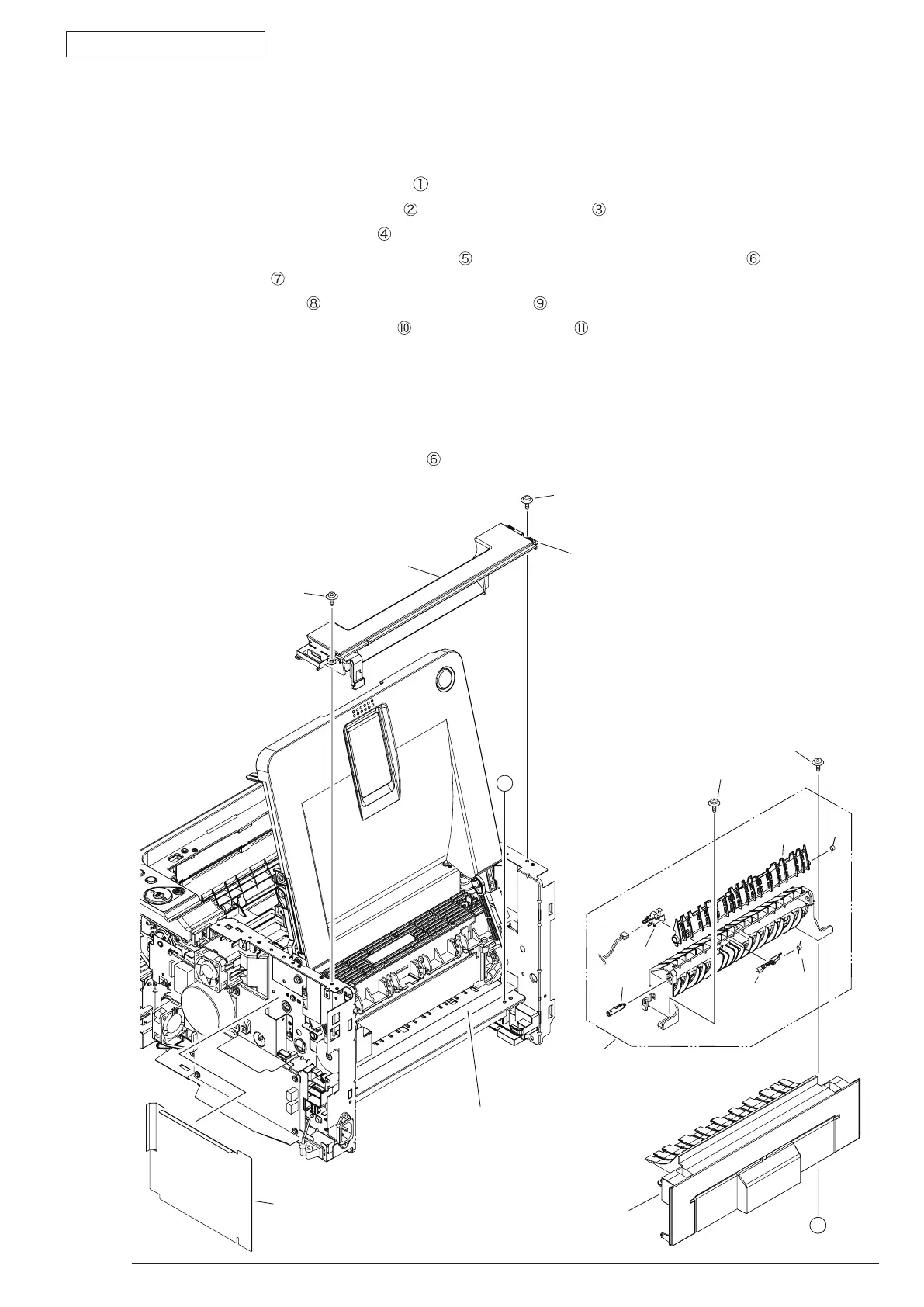

3.3.18 Guide Eject Lower Assy
(1) Remove the Cover-Side-R and Cover–Side-L. (Refer to 3.3.4 / 3.3.5)
(2) Remove the CU-Board. (Refer to 3.3.6)
(3) Remove the Sheet-Insulation-CU
.
(4) Remove the two screws (Silver)
. Remove the Cover-Eject .
(At this moment, Plate-Rear
is also removed.)
(5) Remove the two screws (Silver : 8mm)
. Remove the
Cover-Cassette-Rear Assy and Guide-Eject-
Lower-Assy .
(6) Remove the post
. Remove the Separator-SB-FD .
(7) Remove the Lever-Exit-Sensor
and Spring-Sensor-Exit .
(8) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
2. Install Cover-Cassette-Rear Assy
carefully to avoid the FFC cable from being caught.
A
A
②
③
⑤
⑤
⑥
⑦
⑧
⑨
⑩
⑪
⑫
①
④
FFC cable
