Oki B431L6

Oki Data CONFIDENTIAL
3. Parts replacement
44983601TH Rev.1
3-26 /

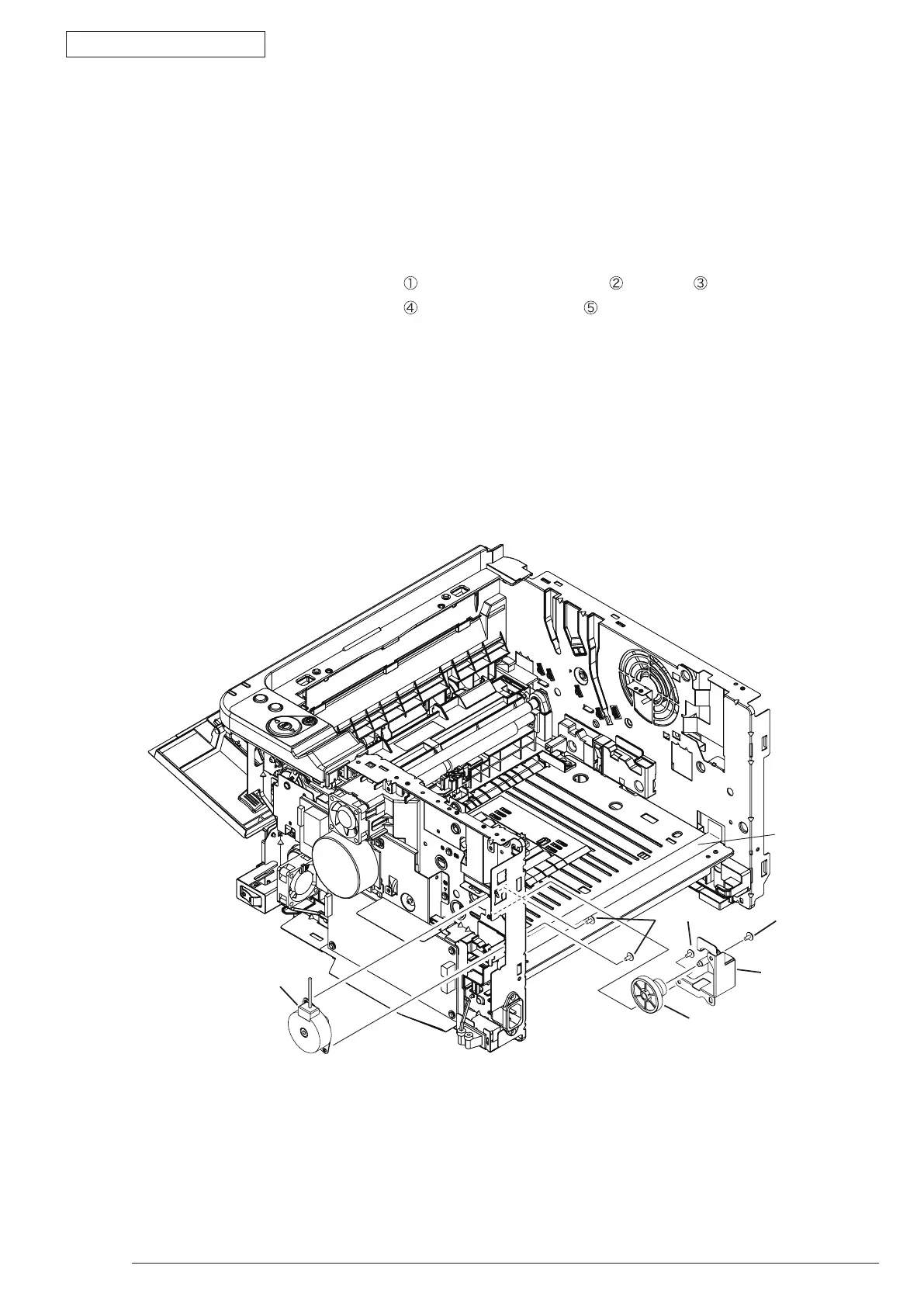

3.3.19 Eject Motor
(1) Remove the Cover-Side-R and Cover–Side-L. (Refer to 3.3.4 / 3.3.5)
(2) Remove the CU-Board. (Refer to 3.3.6)
(3) Remove the Cover Assy Stacker. (Refer to 3.3.13)
(4) Remove the Fuser Assy. (Refer to 3.3.15)
(5) Remove the Cover Assy Rear. (Refer to 3.3.17)
(6) Remove the Guide-Eject-Lower-Assy. (Refer to 3.3.18)
(7) Remove the two screws (Silver)
. Remove the
Plate-Gear-Exit and Gear .
(8) Remove the two screws (Silver)
. Remove the
Eject-Motor .
(9) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
FFC cable
①
②
③
④
⑤
①
