3. Parts replacement
44983601TH Rev.1
3-28 /

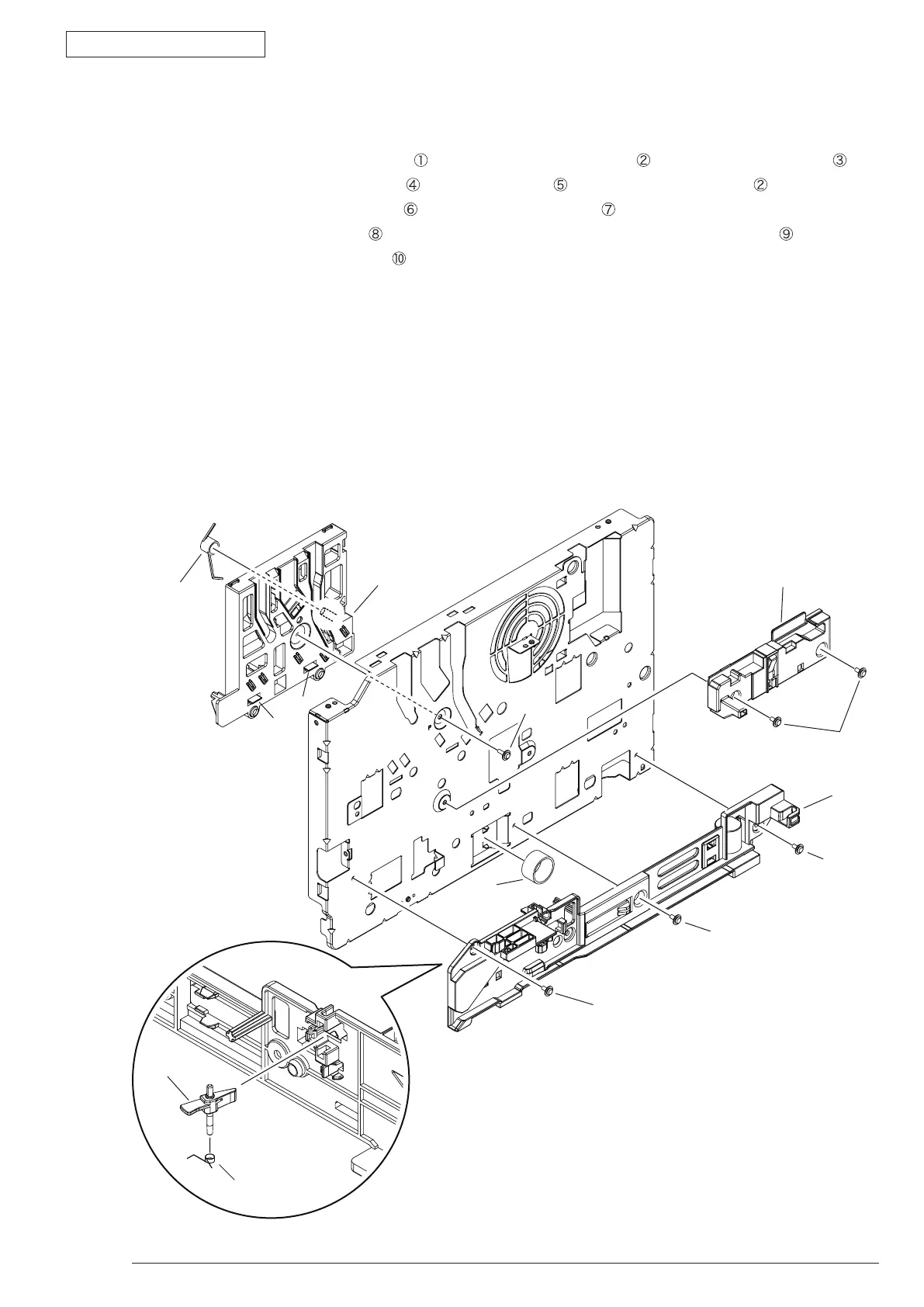

3.3.21 Plate Side L Assy
(1) Separate the Plate Side L Assy. (Refer to 3.3.20)
(2) Remove the three screws (Silver)
. Remove the
Guide-Cassette-L and Spring-Lock-Cassette .
(3) Remove Lever-Sensor Cassette
and Spring-Sensor from the Guide-Cassette-L .
(4) Remove the two screws (Silver)
. Remove the
Frame-inner-L .
(5) Remove the screw (Black)
, disengage the two tabs (a and b), and remove Guide-ID-L .
(6) Remove the Spring-ID-Lock-L
.
(7) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
①
①
⑤
④
②
③
⑥
⑧
⑨
⑩
⑦
①
a
b
To Next Page
