Oki Data CONFIDENTIAL
3. Parts replacement
44983601TH Rev.1
3-30 /

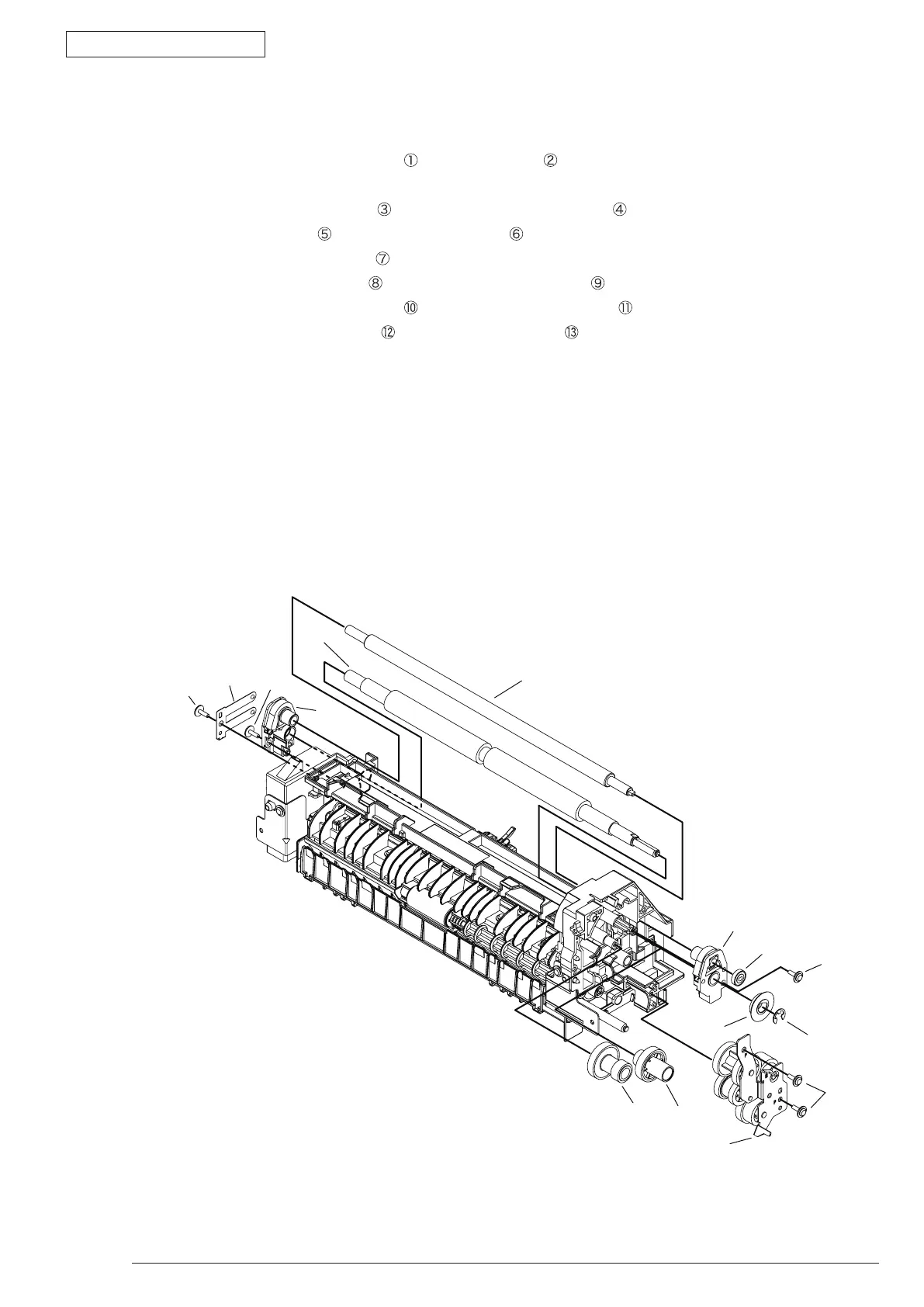

3.3.23 Roller Regist
(1) Separate the Front Assy. (Refer to 3.3.20)
(2) Remove the two screws (Black)
and Plate-Feed-B .
(Be careful not to lose the gear that is removed with the plate.)
(3) Remove the Gear-Idle-MPT
. Remove the Gear-Reduction-MPT . (B431 only)
(4) Remove the E-ring . Remove the Regist-Gear .
(5) Remove the Gear-Pressure
.
(6) Remove the screw (Black)
. Remove the Plate-Contact-REG .
(7) Remove the two screws (Black)
. Remove the Holder-Regist-L/R
.
(8) Remove the Roller-Pressure
. Remove the Roller-Regist
.
(9) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
①
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
⑩
⑪
⑪
⑫
⑬
