3. Parts replacement
44983601TH Rev.1
3-32 /

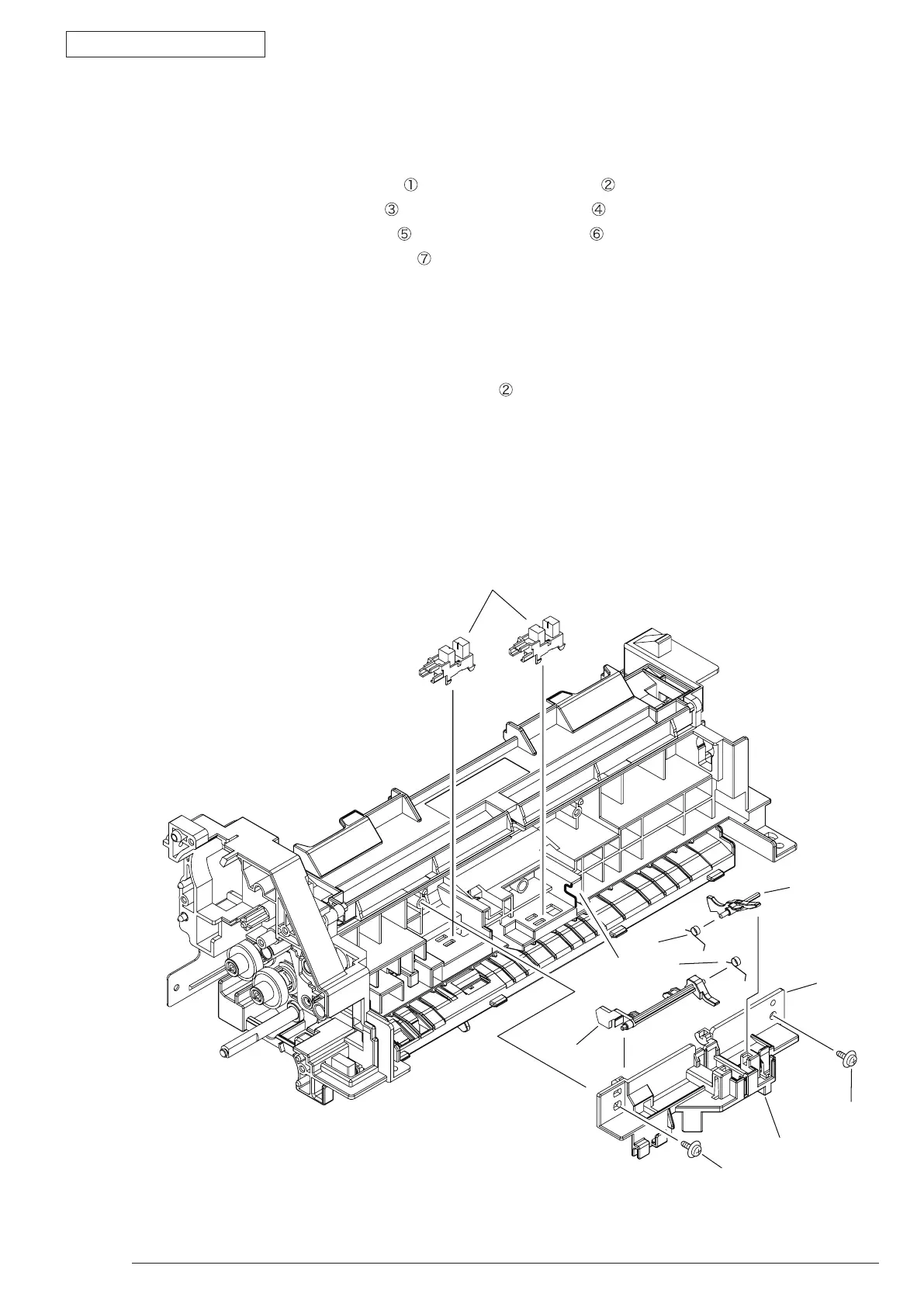

3.3.25 Lever In Sensor / Lever WR Sensor / /Photo Interrupter
(1) Separate the Front Assy. (Refer to 3.3.20)
(2) Separate the Roller-Pressure and Roller Regist. (Refer to 3.3.23)
(3) Remove the two screws (Black)
.
Remove
the Holder-Sensor .
(4) Remove the Lever-In-Sensor . Remove the Spring-Sensor .
(5) Remove the Lever-WR-Sensor
. Remove the Spring-Sensor .
(6) Remove the two Photo Interrupter
.
(7) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. Beware of not to touch the DC motor inattentively (Do not rotate motor).
2. Make sure that the latch B of Holder-Sensor
has engaged the latch A of the Front
⑦
①
①
②
③
④
⑤
⑥
B
A
