3. Parts replacement
44983601TH Rev.1
3-33 /

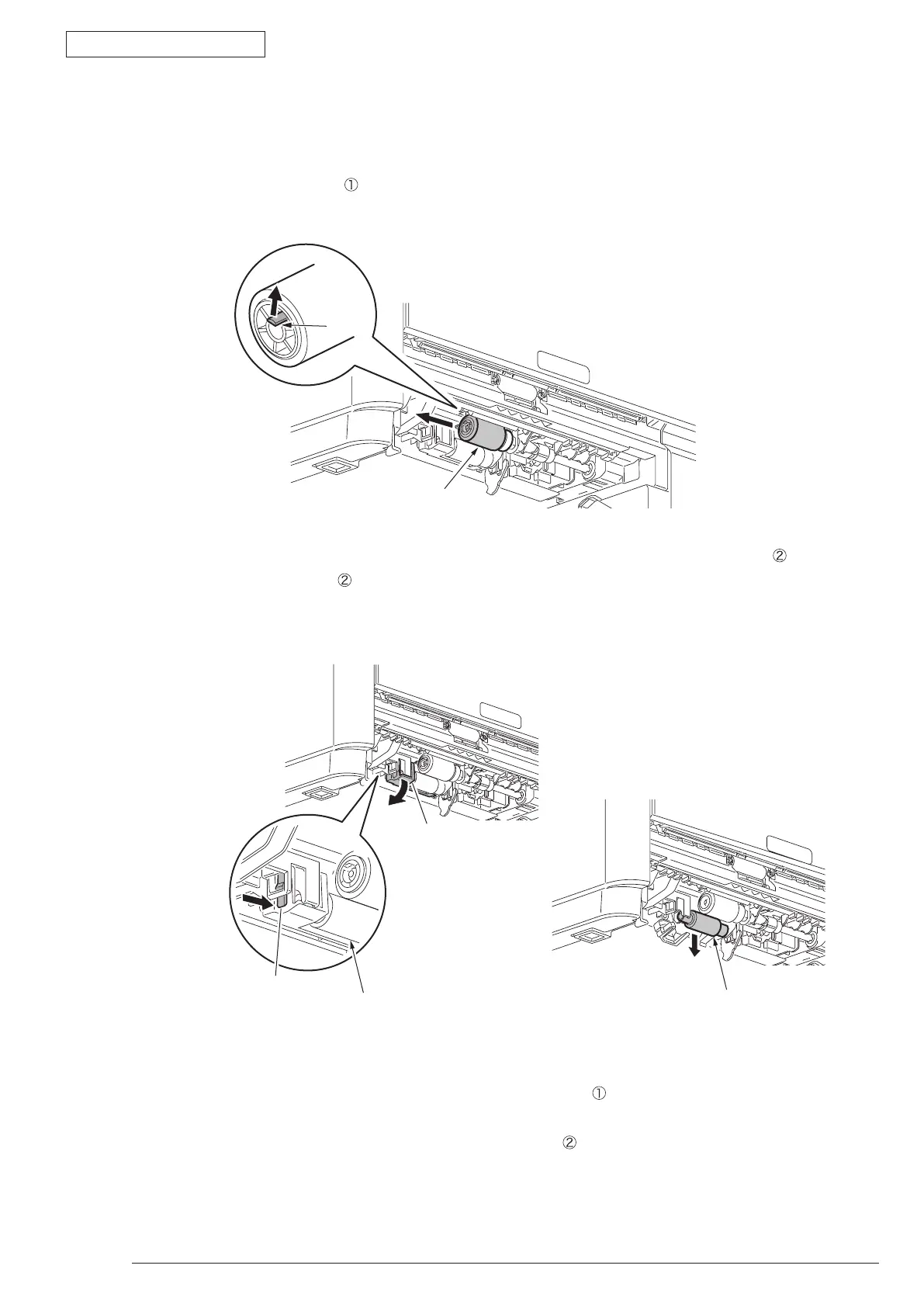

3.3.26 Paper feeding roller (Roller-Pick-Up,Roller-Feed-NOW,Roller-Assy-MPT)
• In the case of Tray 1
(1) Turn off the printer and pull out the paper cassette tray.
(2) Remove the feed roller
as pushing its tab outward.
(3) As pushing the tab downward, open the cover (black) that is on the left of the feed roller
.
(4) Pull out the feed roller
downward.
(5 ) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. To install the feed roller (with no gear: Roller-Feed-NOW)
, keep pushing it until it clicks into place
and is fixed to the shaft.
2. To install the feed roller (with a gear: Roller-Pick-Up)
, keep pushing the cover until the tab of the
cover clicks into place.
①
Tab
②
②
Cover
Tab
