3. Parts replacement
44983601TH Rev.1
3-34 /

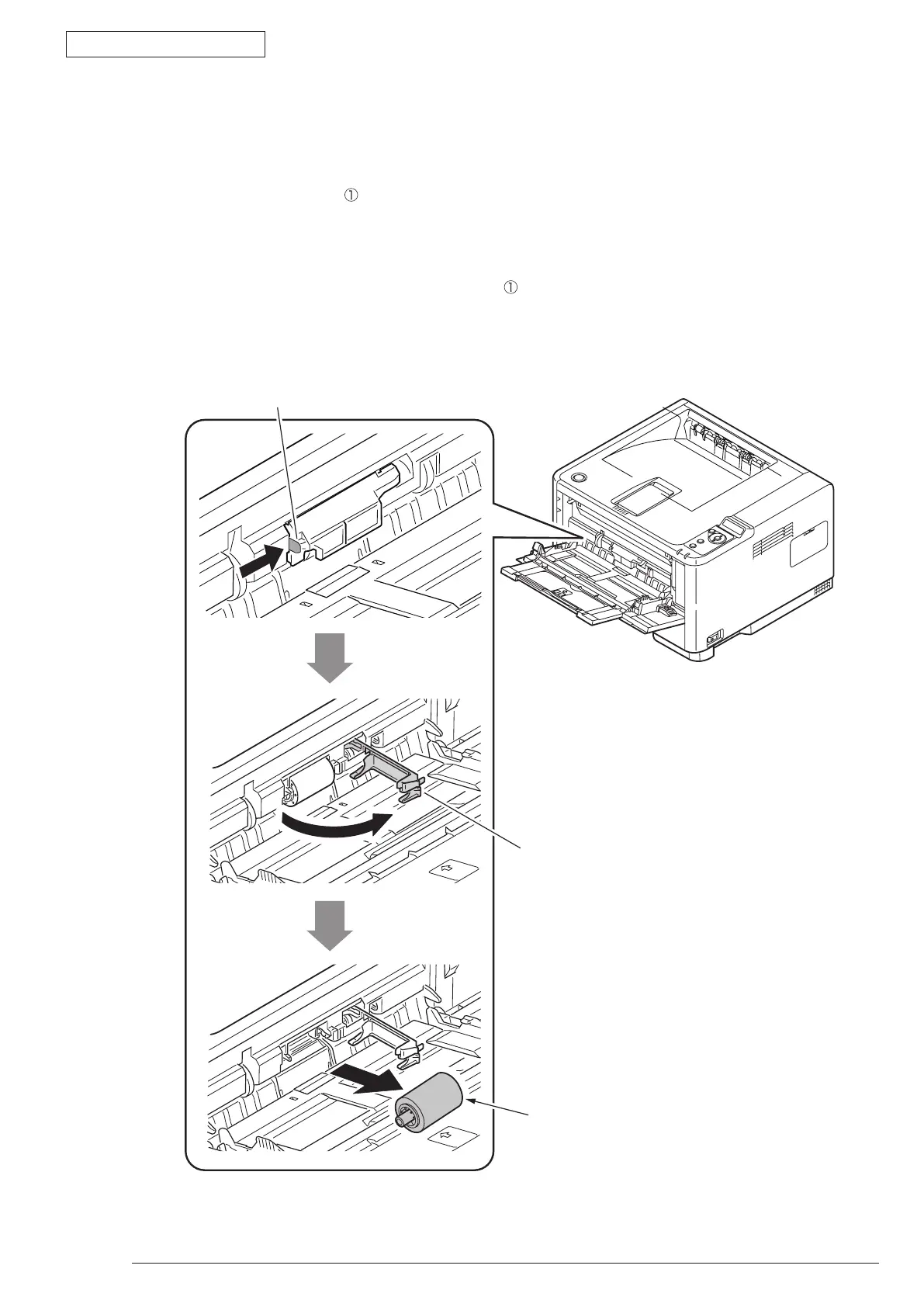

• In the case of Multi-purpose Tray ( B431dn)
(1) Turn off the printer.
(2) Open the multipurpose tray and the paper support.
(3) Open the feed roller cover by pushing its tab to the right.
(4) Remove the feed roller
by rotating it toward you.
(5 ) Installing is performed by the inverse procedure with removing.
(Note on removing / installing)
1. To install the feed roller (Roller-Assy-MPT)
, keep pushing the cover until the tab of the cover
clicks into place.
①
Feed roller cover
