3. Parts replacement
44983601TH Rev.1
3-35 /

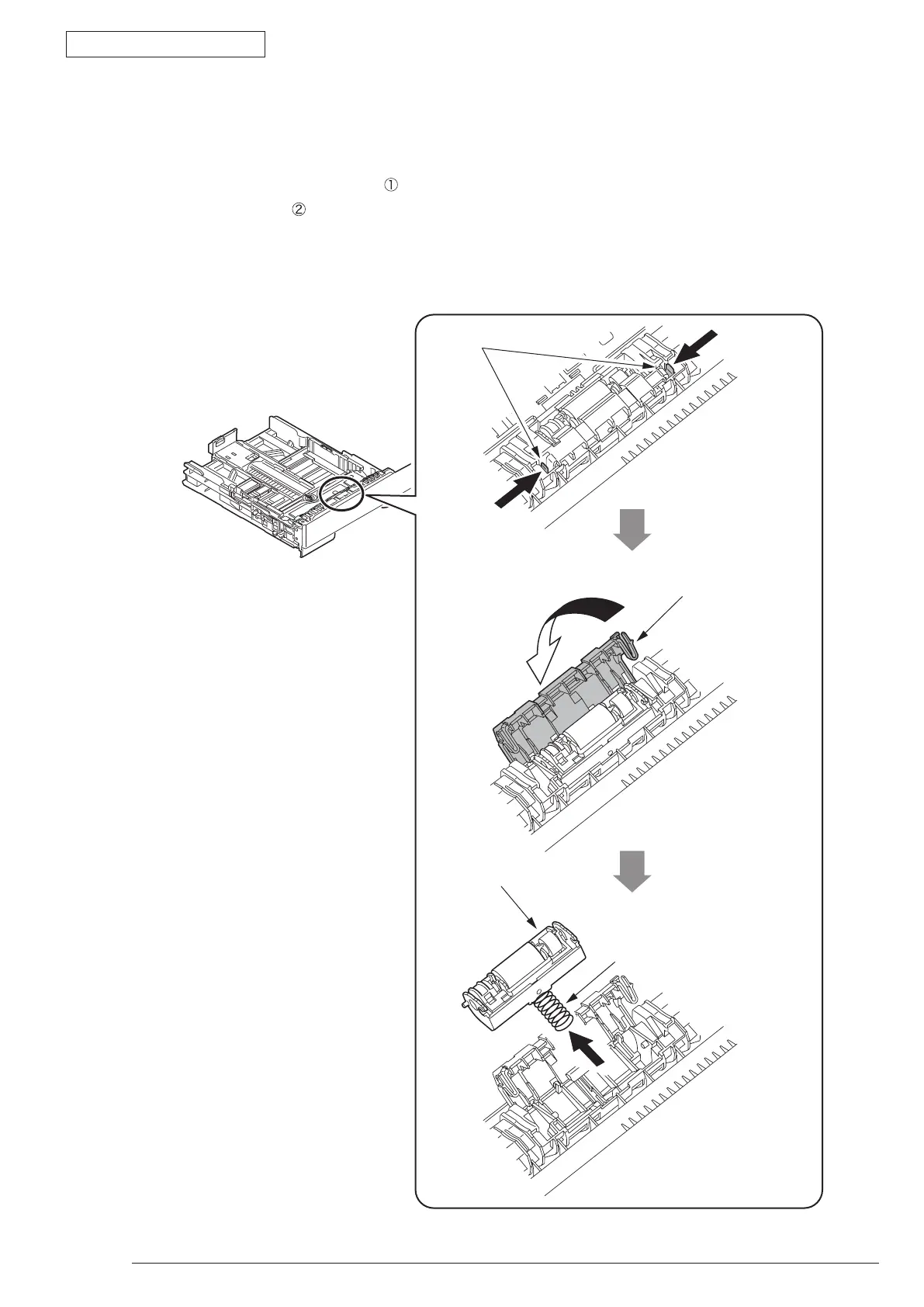

3.3.27 Frame-Assy-Retard , Spring-Retard
(1) Remove the cassette.
(2) Open the Retard-Cover by pushing two tabs in the directions of the arrows.
(3) Remove Frame-Assy-Retard
by pushing it in the direction of the arrow.
(Spring-Retard
is removed together.)
(4 ) Installing is performed by the inverse procedure with removing.
②
①
Retard-Cover
Tab
