3.4 Lubricating points
This subsection indicates the lubricating points of the printer. Conversely, it means that any other
parts than the specified lubricating points must not be lubricated.
There is no need to lubricate in the midst of a disassembling job. However, if lubricating oil has been
wiped off, supply the specified oil.
Lubricating work
(1) Symbols and names of oils
EM-30LP : MOLYKOTE EM-30LP
Tetra : Tetra C-9310 or C-5005

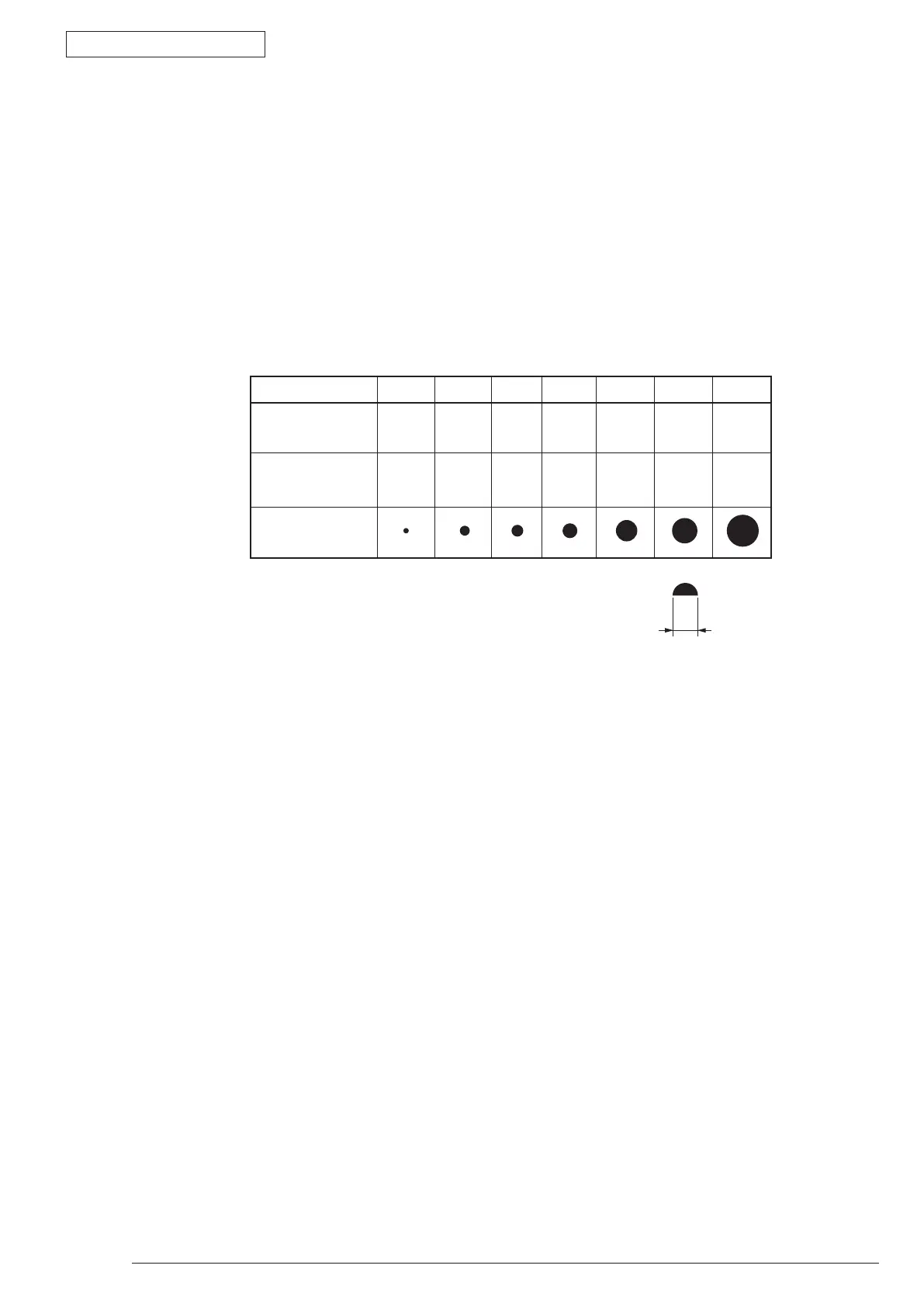

(2) Boundary samples of grease
Class
Amount of grease(cc)
W(mm)
Sample
SABC DEF
0.0005 0.003 0.0050.010.030.05 0.1
1.24 2.25 2.67 3.37 4.86 5.76
W
7.26
