3. Parts replacement
44983601TH Rev.1
3-49 /

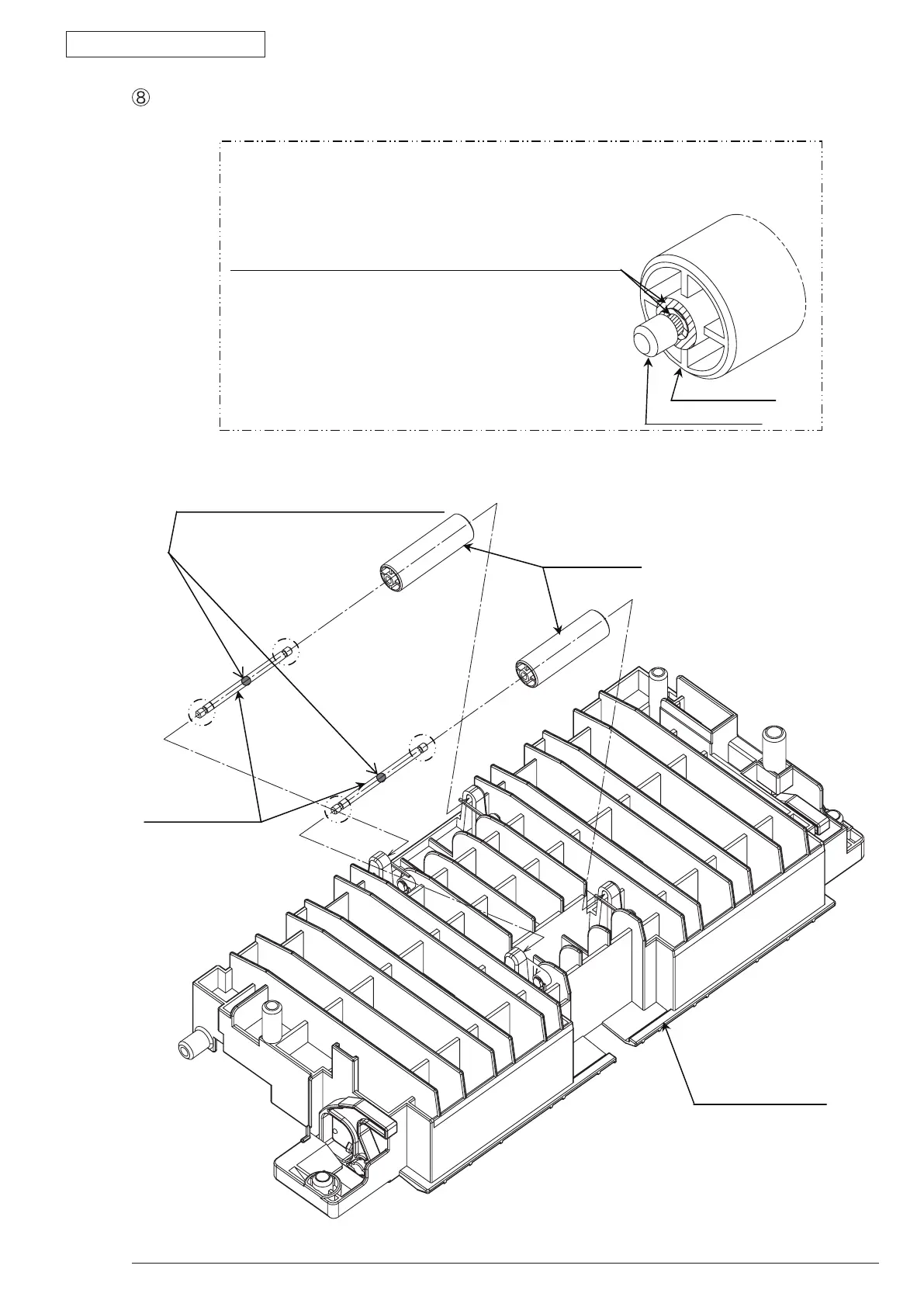

-2 Frame-Assy-TR
Note:1
EM-30LP Class A
Apply a normal amount of MOLYKOTE (EM-30LP)
to the hatched areas.
(Side of roller and ditch of shaft)
(The other side is also the same. : Four places in total)
EM-30LP Class B
Apply a normal amount of MOLYKOTE (EM-30LP)
to the hatched areas. (Center of shaft)
Roller-Pinch
Shaft-Idle-Dup
Roller-Pinch
Note:1
Note:1
Note:1
Shaft-Idle-Dup
Frame-Guide-TR
Note:1
