Oki B6500 Series User Manual

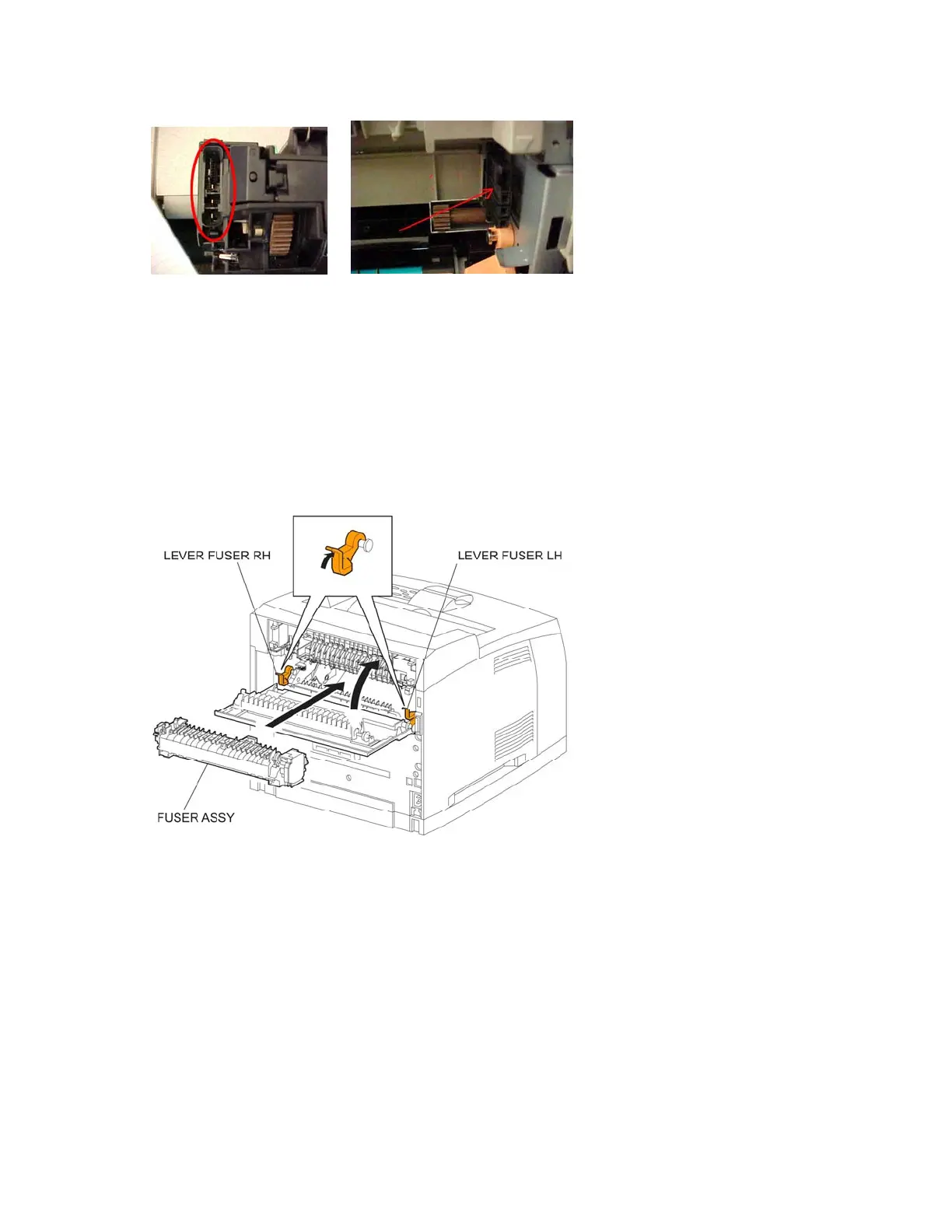

4. To install the new
fuser, align the
electrical
connector on the
right side of the
fuser with the
mating electrical
connector in the
printer unit. Then
slide the new fuser
into the printer.
NOTE – You may pivot the
fuser back and forth
slightly if it does not slide
in easily.
5. Lock the fuser in
position by pushing
up firmly on the
two orange tabs.
Close all covers,
including the
duplexer, if
installed.
Electrical Connector
on Fuser
Electrical Connector
in Printer
The following page contains the instructions to reset the fuser counter that is
stored within
B6500.
Oki Data B6500Support Guide Page 15

Oki B6500 Series Specifications

General

Print Technology	LED
Resolution	1200 x 1200 dpi
Processor	533 MHz
Duplex Printing	Standard
Maximum Paper Size	A3
Connectivity	USB 2.0, Ethernet, Parallel
Memory	256 MB
Type	Monochrome Printer
Operating System Compatibility	Windows, Mac OS, Linux
Monthly Duty Cycle	200, 000 pages
