Oki B710dn - Installation; Safety Precautions

4

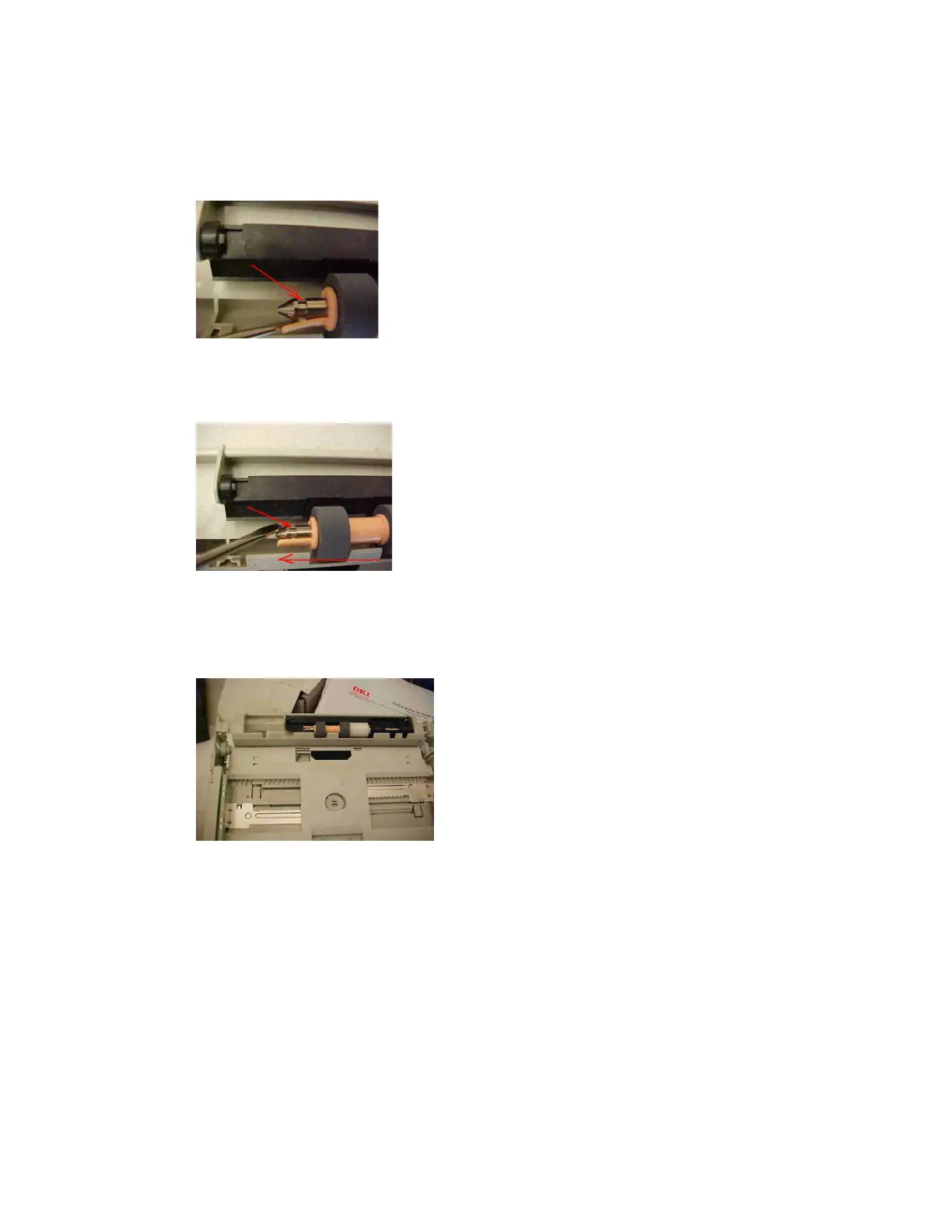

Replacing the Retard Rollers
1. Gently push the notch on the tab away from the groove in the shaft.
2. While holding the tab clear of the shaft move the roller toward the groove in to
remove.
3. Repeat the procedure to remove the rollers at all three locations shown below.
150 Paper Cassette Assembly
