Troubleshooting > 86

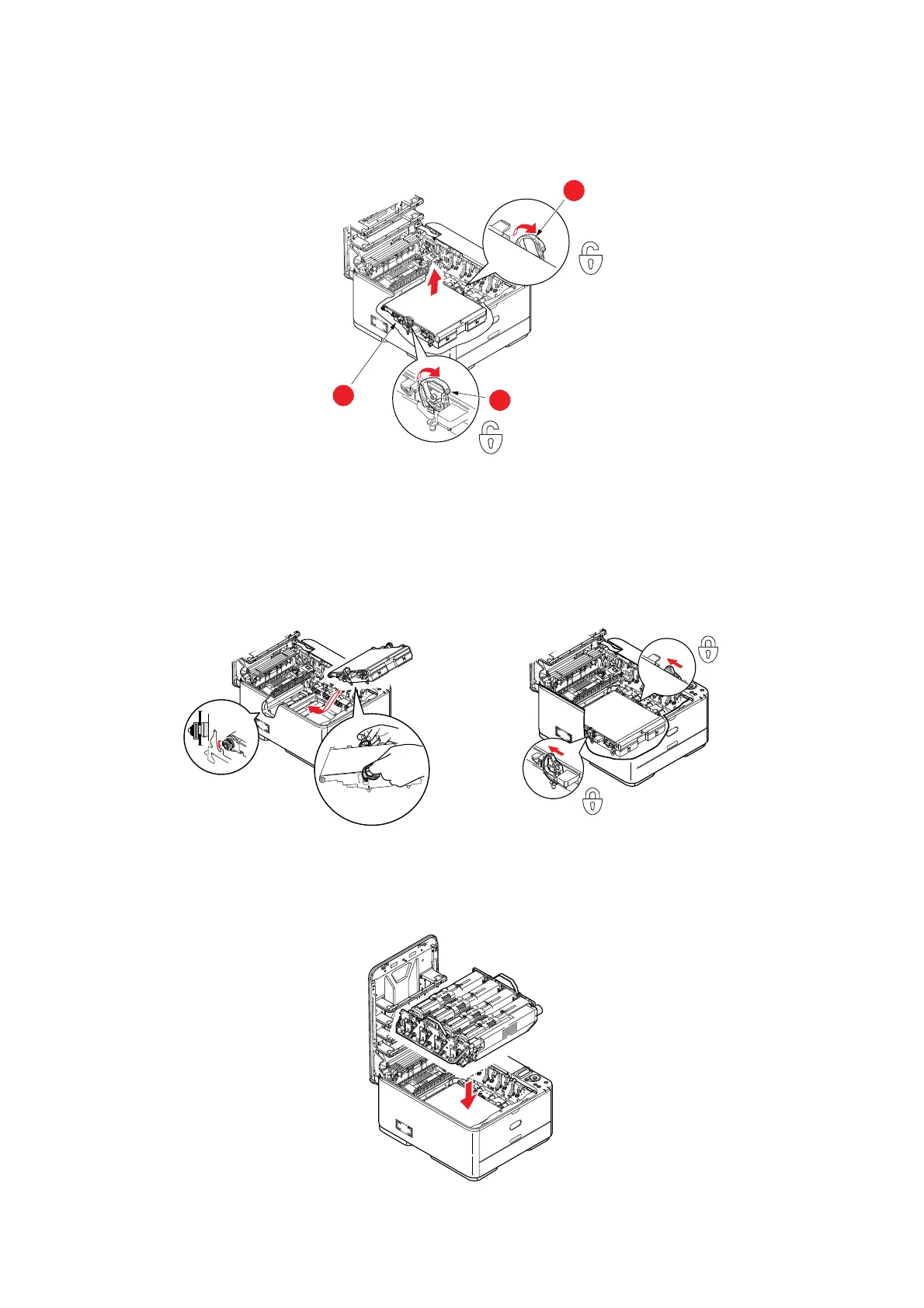

6. If you were duplex printing when the jam occurred, check the duplex paper path:
(a) Pull the locking levers at each side of the transfer belt up and towards the front
of the machine.
(b) Using the locking levers (a), lift the belt (b) upwards and withdraw from the
machine.
(c) Look into the printer to check whether any sheets of paper are visible on any
part of the paper path. Pull out any sheets found in this area.
(d) Lower the belt unit into place, with the drive gear towards the rear of the printer.
Locate the drive gear into the gear inside the printer by the rear right corner of
the unit, and lower the belt unit flat inside the printer.
(e) Push the locking levers towards the rear of the machine. This will secure the belt
unit in place.
7. Holding the image drum assembly by its handles, lower it into place in the machine,
locating the pegs at the sides into their slots in the sides of the printer cavity.
b
a
a
