Replacing consumable items > 39

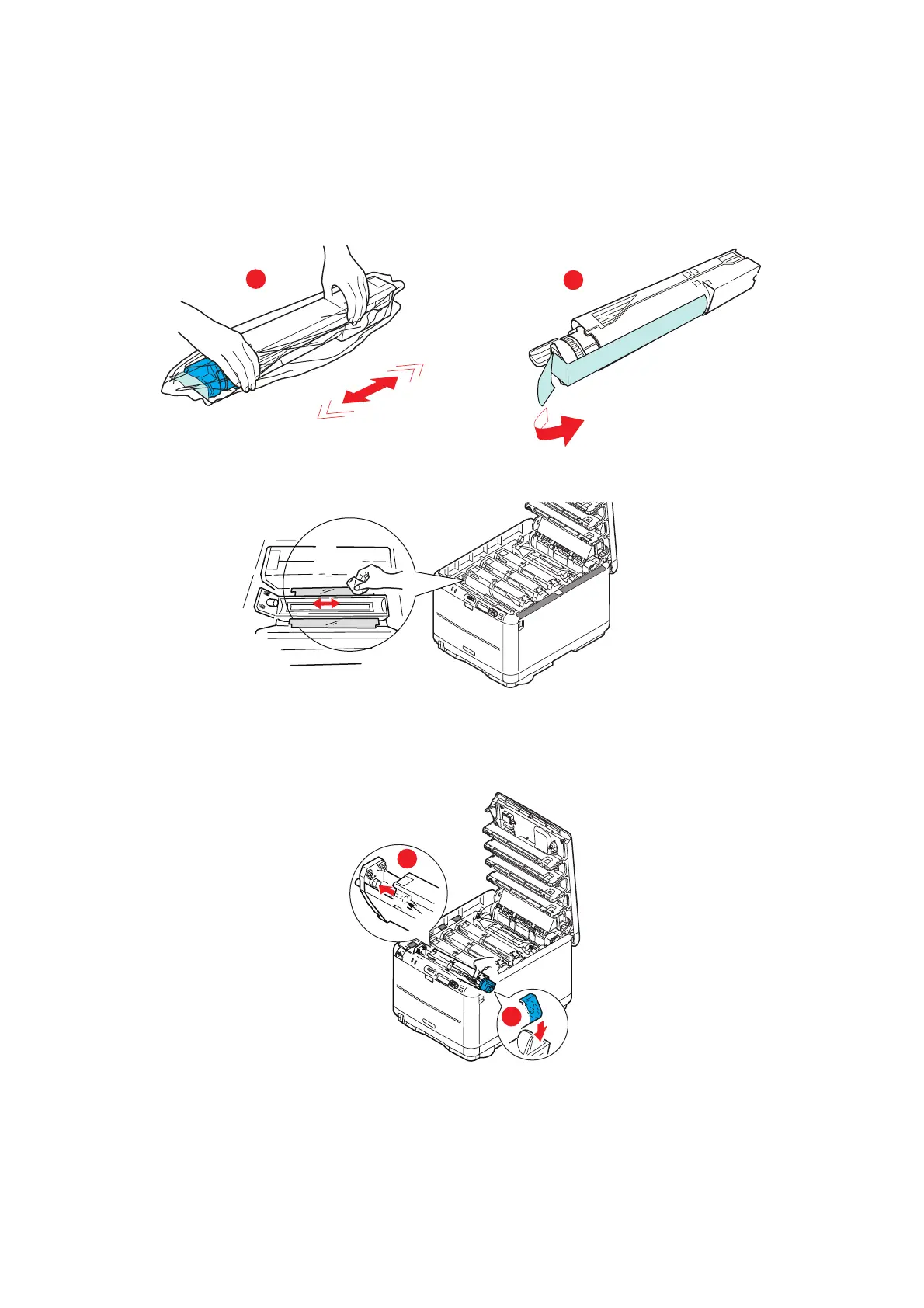

5. Remove the new cartridge from its box but leave its wrapping material in place for
the moment.
(a) Gently shake the new cartridge from end to end several times to loosen and
distribute the toner evenly inside the cartridge.
(b) Remove the wrapping material and peel off the adhesive tape from the
underside of the cartridge.
6. Clean the top surface of the image drum
7. Insert the left end of the cartridge into the top of the image drum unit
(a) first, pushing it against the spring on the drum unit,
(b) then lower the right end of the cartridge down on to the image drum unit.
b
a
a
b
