The LCD display language can be changed to show different languages. (See “Changing the
display language” on page 9.)

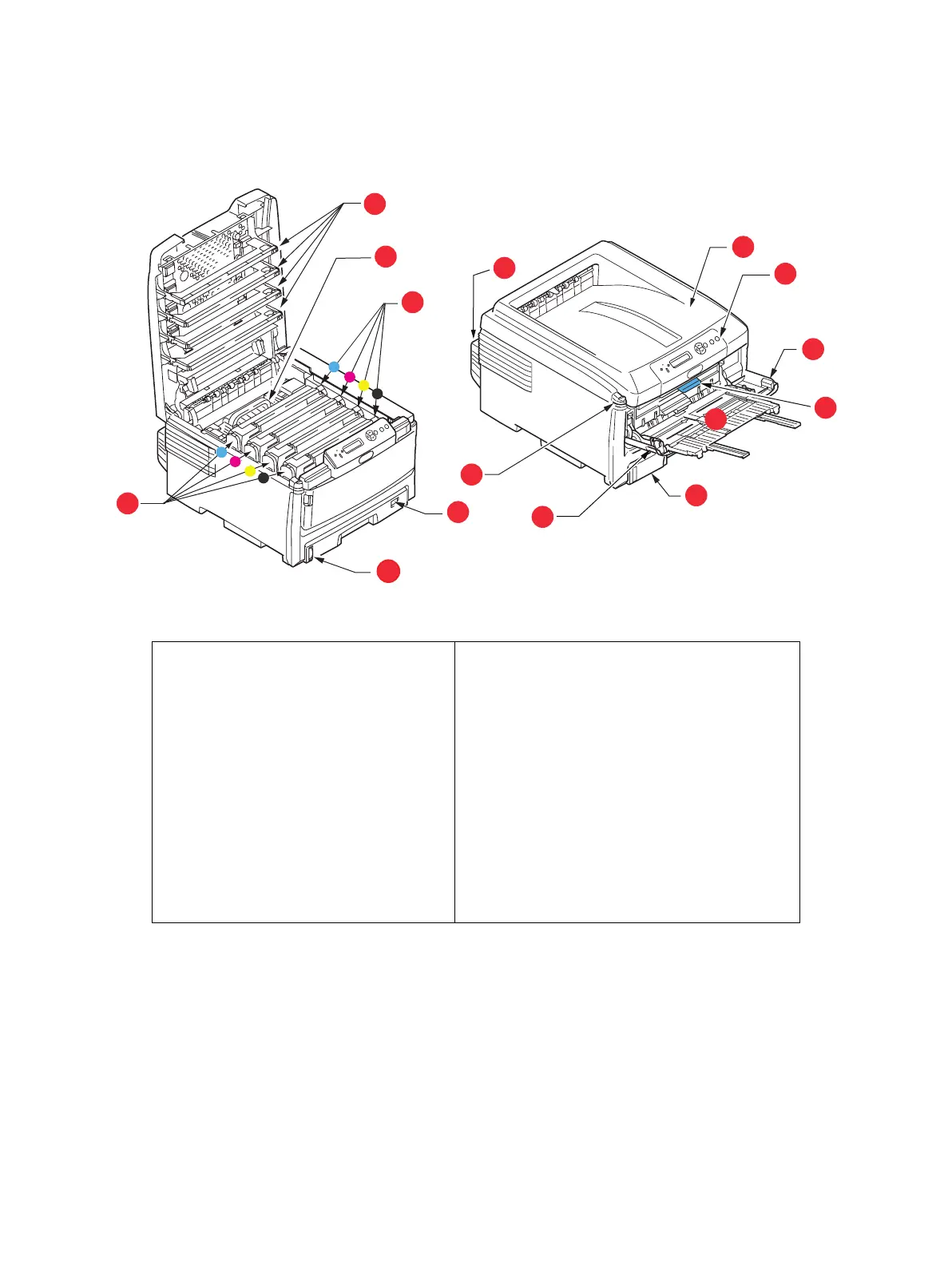

1. Output stacker (face down).
Standard printed copy delivery point.
Holds up to 250 sheets at 80g/m².
2. Operator panel.
Menu driven operator controls and LCD
display panel.
3. Paper tray.
Standard blank paper tray. Holds up to
300 sheets of 80g/m² paper.
4. Multi purpose tray.
Used for feeding heavier paper stocks,
envelopes and other special media. Also
for manual feeding of single sheets
when required.
5. Front cover release lever.
6. Multi-purpose tray release lever
7. Top cover release button.
8. LED heads
9. Fuser
10.Toner cartridges (C,M,Y,K).
11.ID units (C,M,Y,Y).
12.Duplex Unit (optional).
13.Paper size dial.
14.Paper level guage.
5
1
2
3
6
9
11
10
13
12
7
14
8
6
4
