7. Maintenance
6

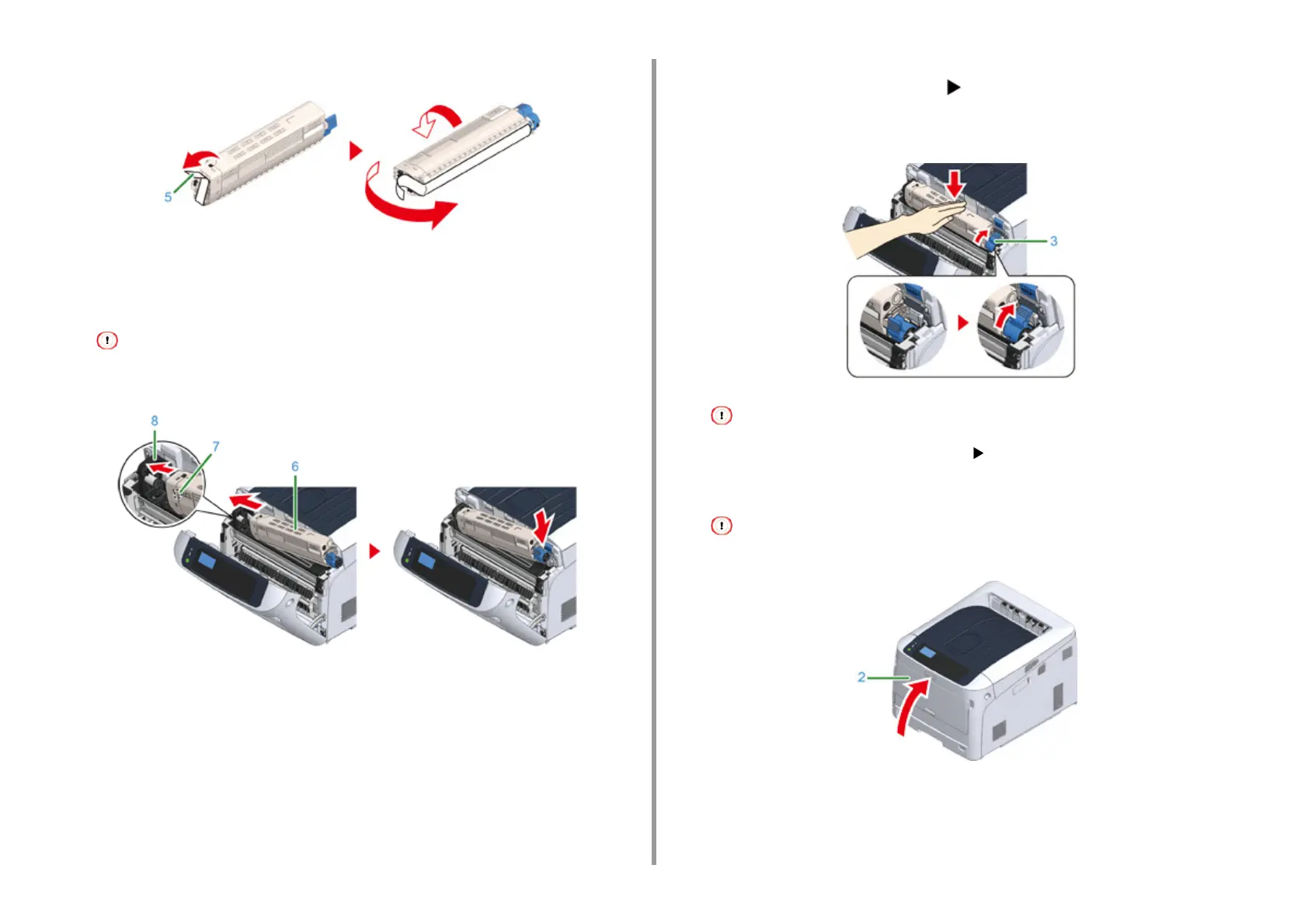

Remove the tape (5) from the toner cartridge.
7
Insert a new toner cartridge (6) by aligning its left side indentation (7) with the
protrusion (8) on the image drum so the toner cartridge and image drum [K]
color label align. Then insert the right side gently into place.
• Make sure to take off the tape from the toner cartridge before setting. Peel off the tape before setting the new
cartridge.
8
While pressing the toner cartridge, turn the toner cartridge lock lever (blue) (3)
backward until its to aligns on the mark, and lock the toner cartridge to the
image drum.
You will hear a click when it is locked in place.
• Closing the cover without turning the toner cartridge lock lever (blue) may cause a malfunction. Make sure to
turn the cartridge lock lever until it lines up with the in the far end.
9
Close the front cover (2).
• The front cover cannot be closed if the output tray is not closed securely.
10
Please recycle toner cartridges.
