7. Maintenance
7

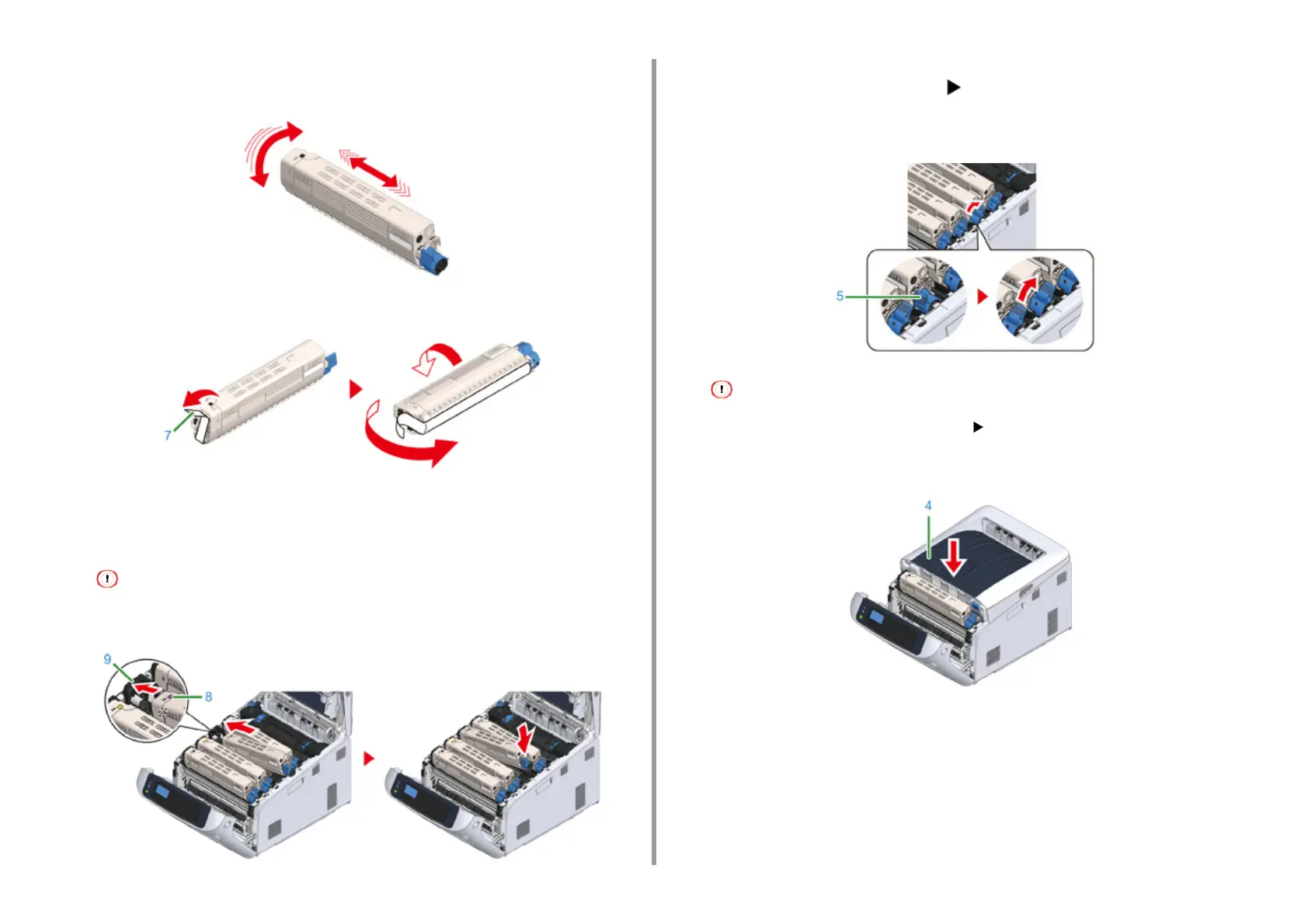

Unpack a new toner cartridge and shake it several times vertically and
horizontally.
8
Remove the tape (7) from the toner cartridge.
9
Insert the left indentation (8) of the toner cartridge to the protrusion (9) of the
image drum so that the labels of color attached to a new toner cartridge (6)
and image drum come to the same side and set the right side firmly.
• Make sure to take off the tape from the toner cartridge before setting. Peel off the tape before setting the new
cartridge.
10
While pressing the toner cartridge, turn the toner cartridge lock lever (blue) (5)
backward until its to aligns on the mark, and lock the toner cartridge to the
image drum.
You will hear a click when it is locked in place.
• Closing the cover without turning the toner cartridge lock lever (blue) may cause a malfunction. Make sure to
turn the cartridge lock lever until it lines up with the in the far end.
11
Close the output tray (4) by pushing the center of the output tray (4) firmly.
