2. Setup

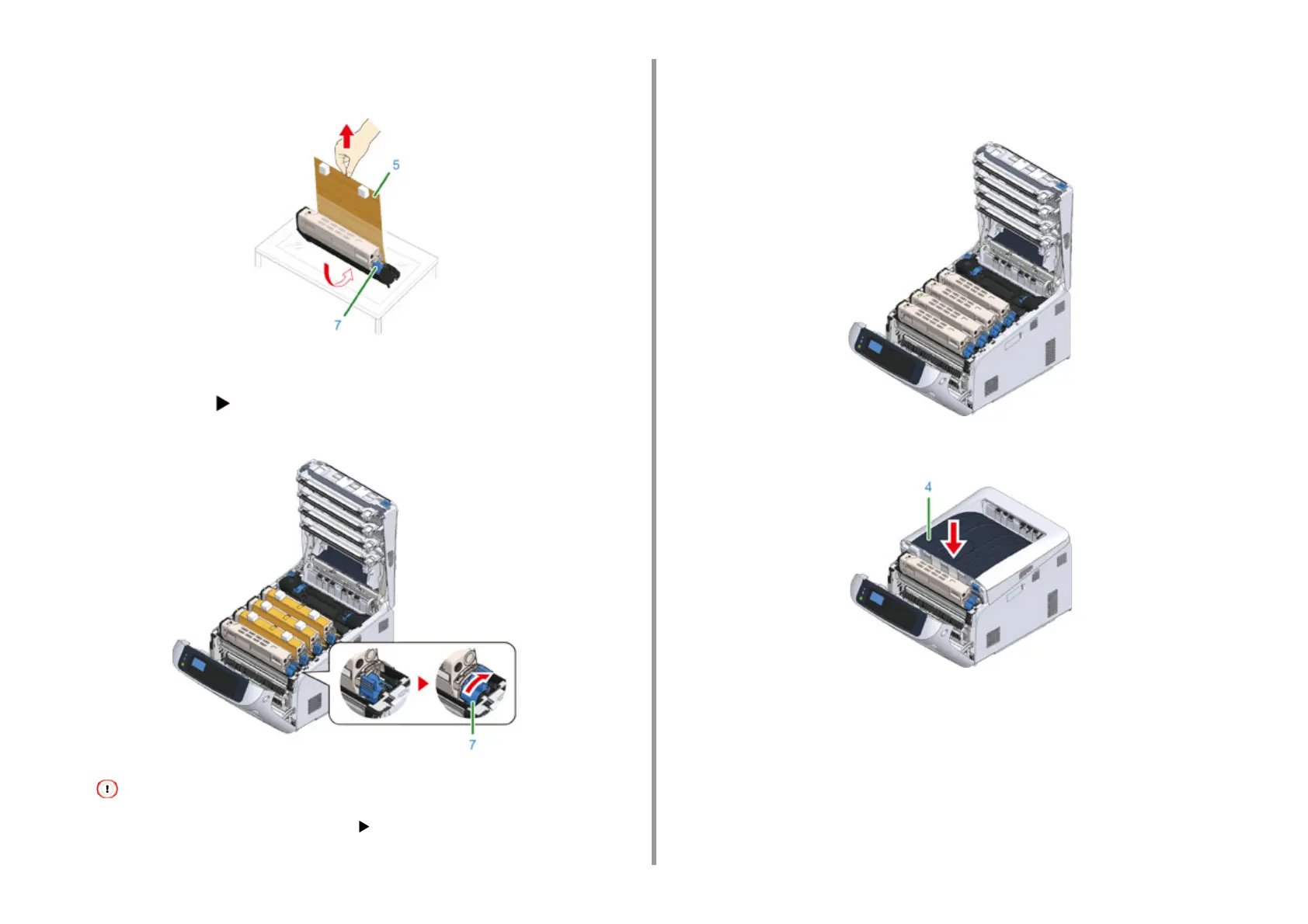

(2) Draw the protective sheet (5) in the direction of the arrow. Do not turn the
toner cartridge lock lever (7) (blue).
6
Put the image drum with the protective sheet removed into the printer unit and
turn the toner cartridge lock lever (7) (blue) in the direction of the arrow until it
lines up with the .
You will hear a click when it is locked in place.
• Closing the cover without turning the toner cartridge lock lever (blue) may cause a malfunction. Make sure to
turn the cartridge lock lever until it lines up with the in the far end.
7
Repeat from step 4 to step 6 to pull out all the image drum and remove all the
protective sheet in the order of "Y: Yellow", "M: Magenta", and "C: Cyan". And
put them back to the printer, then turn the toner cartridge lock lever.
8
Close the output tray (4) by pushing the center of the cover firmly.
9
Close the front cover (2).
