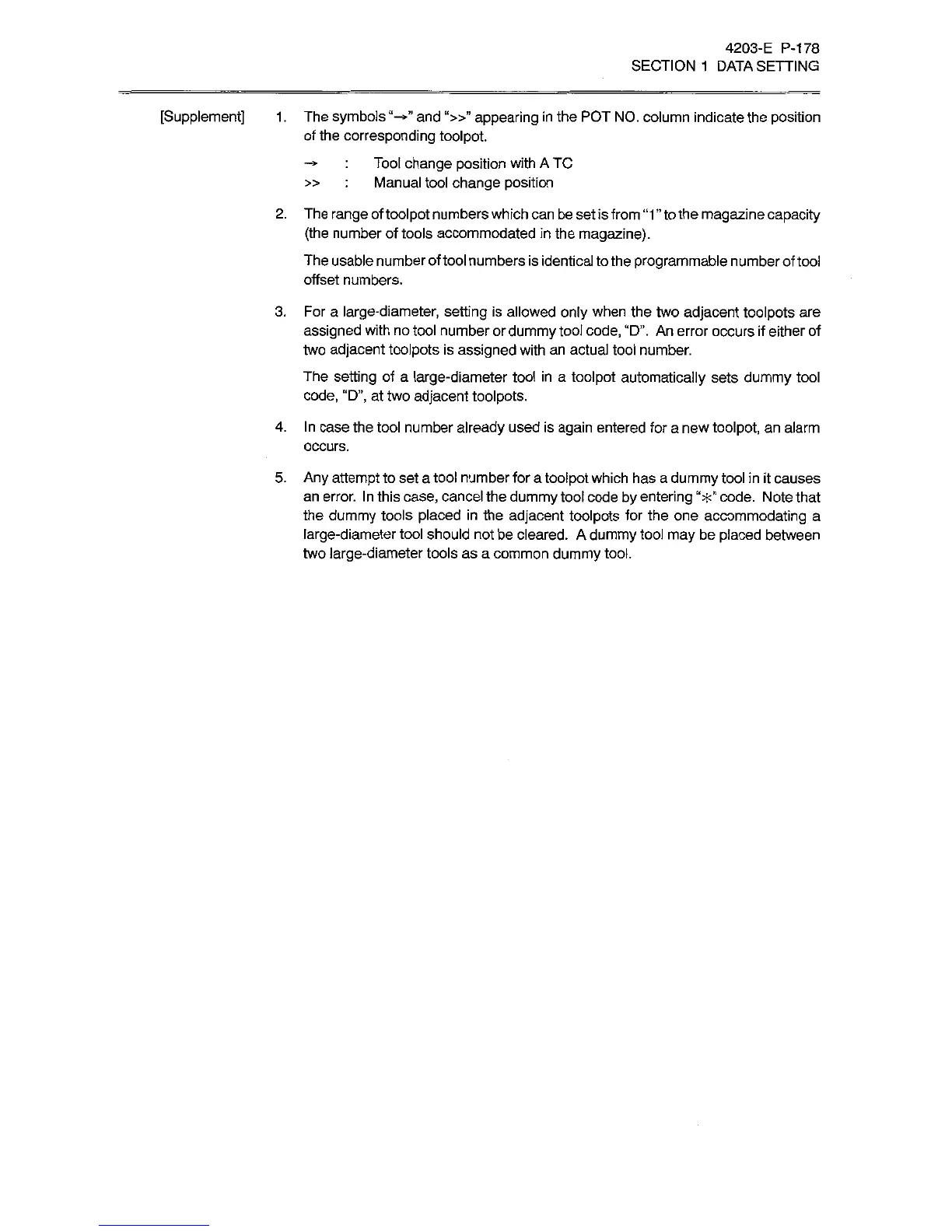

4203-E
P-178
SECTION
1
DATA
SETTING
[Supplement]
1
.
The
symbols
and
“»”
appearing
in
the
POT
NO.
column
indicate
the
position
of
the
corresponding
toolpot.
-*ÿ
:
Tool
change
position
with
A
TC
»
:
Manual tool
change
position
2.
The
range
of
toolpot
numbers
which
can
be
set
is
from
“1
”
to
the
magazine
capacity
(the
number
of
tools accommodated
in
the
magazine).
The
usable number
of
tool
numbers is
identical
to
the
programmable
number
of
tool
offset
numbers.
3.
For
a
large-diameter,
setting
is
allowed
only
when
the
two
adjacent
toolpots
are
assigned
with
no
tool
number
or
dummy
tool
code,
“D”.
An
error
occurs
if
either
of
two
adjacent
toolpots
is
assigned
with
an
actual tool
number.
The
setting
of
a
large-diameter
tool
in
a
toolpot
automatically
sets
dummy
tool
code,
“D”,
at two
adjacent
toolpots.
4.
In
case
the
tool
number
already
used is
again
entered
for
a new
toolpot,
an
alarm
occurs.
5.
Any
attempt
to
set
a
tool
number
for
a
toolpot
which
has
a
dummy
tool
in
it
causes
an
error.
In
this
case,
cancel the
dummy
tool
code
by
entering
code.
Note
that
the
dummy
tools
placed
in
the
adjacent
toolpots
for
the
one
accommodating
a
large-diameter
tool
should
not
be
cleared.
A
dummy
tool
may
be
placed
between
two
large-diameter
tools
as
a
common
dummy
tool.
