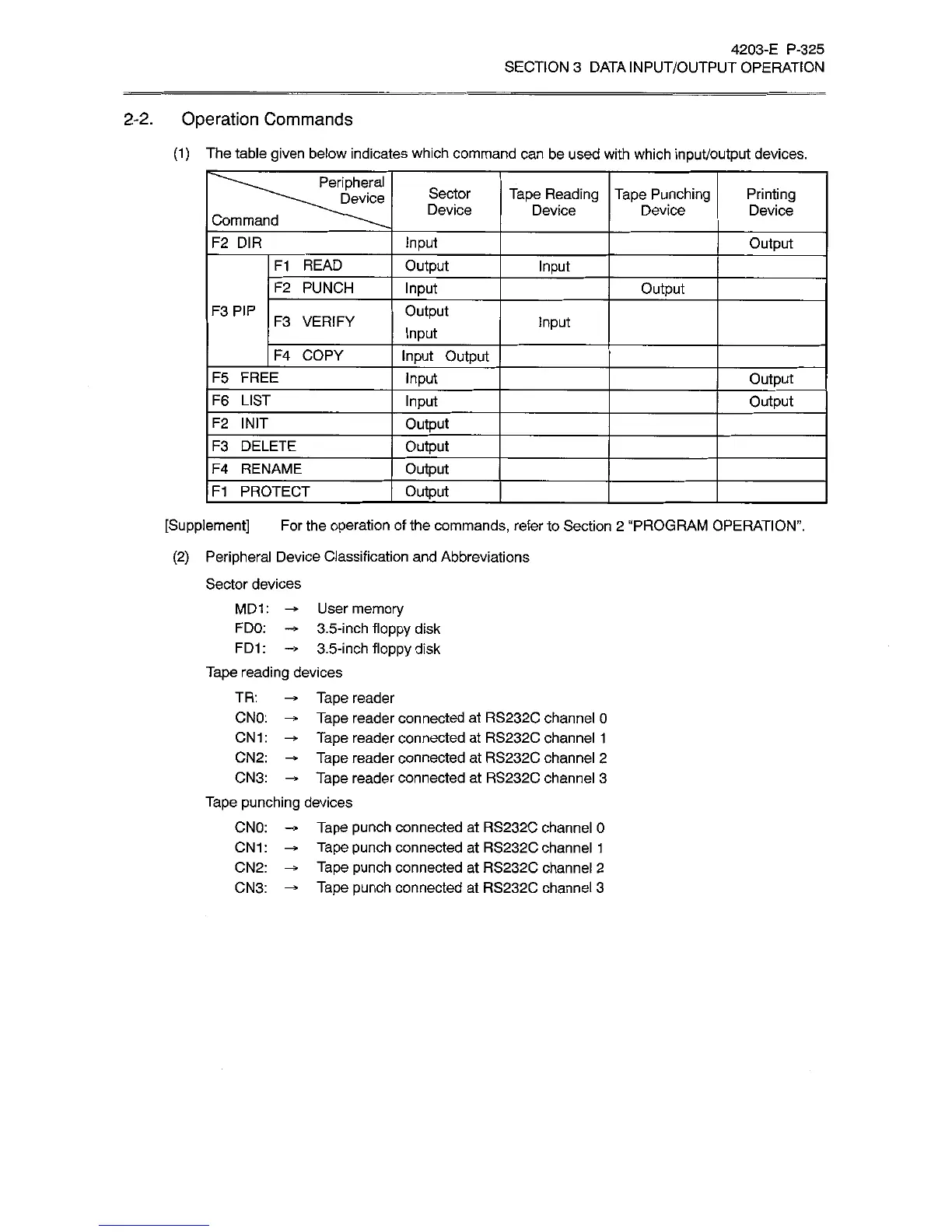

4203-E
P-325
SECTION
3
DATA
INPUT/OUTPUT
OPERATION
2-2.
Operation
Commands
(1)
The
table
given
below
indicates
which
command
can
be
used
with
which
input/output
devices.
Peripheral
Device
Sector
Device
Tape
Reading
Device
Tape
Punching
Device
Printing
Device
Command
F2
DIR
Input
Output
F1
READ
Output
Input
F2
PUNCH
Input
Output
Output
Input
F3PIP
F3
VERIFY
Input
F4
COPY
Input
Output
F5
FREE
Input
Output
F6
LIST
Input
Output
F2
INIT
Output
F3
DELETE
Output
F4
RENAME
Output
F1
PROTECT
Output
[Supplement]
For
the
operation
of
the
commands,
refer
to
Section
2
“PROGRAM
OPERATION”.
(2)
Peripheral
Device
Classification
and
Abbreviations
Sector
devices
MD1:
-*
User
memory
FDO:
3.5-inch
floppy
disk
FD1
:
-ÿ
3.5-inch
floppy
disk
Tape
reading
devices
TR:
-*
Tape
reader
CNO:
-*
Tape
reader
connected
at
RS232C
channel
0
CN1
:
-*
Tape
reader
connected
at
RS232C
channel
1
CN2:
-*
Tape
reader
connected
at
RS232C
channel
2
CN3:
-*
Tape
reader
connected
at
RS232C
channel
3
Tape
punching
devices
CNO:
-*
Tape
punch
connected
at
RS232C
channel
0
CN1:
Tape
punch
connected
at
RS232C
channel
1
CN2:
-*
Tape
punch
connected
at
RS232C
channel
2
CN3:
-*
Tape
punch
connected
at
RS232C
channel
3
