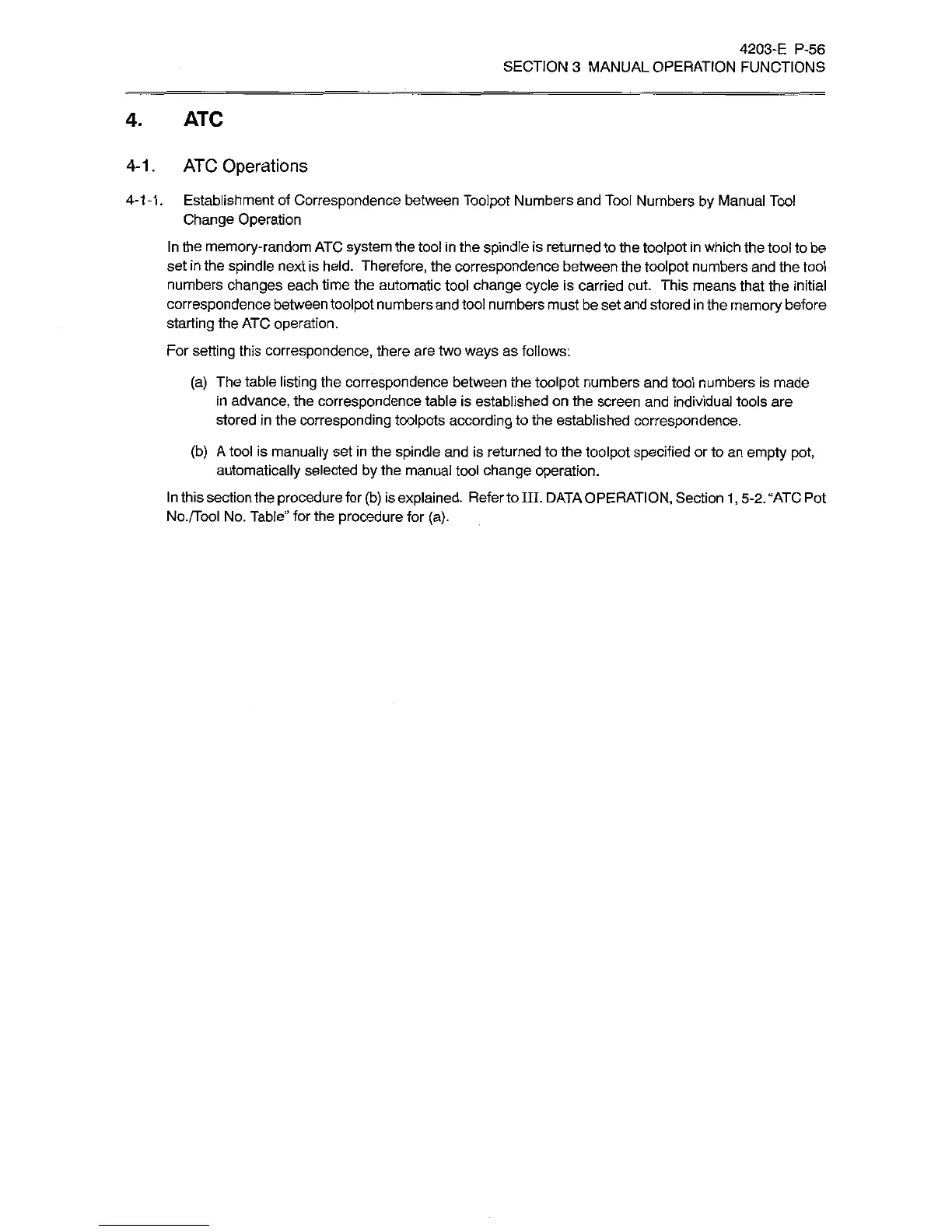

Okuma OSP-U100M - ATC Operations

4203-E
P-56
SECTION
3
MANUAL
OPERATION
FUNCTIONS
4.
ATC
4-1.
ATC
Operations
4-1
-1
.
Establishment
of
Correspondence
between
Toolpot
Numbers
and
Tool
Numbers
by
Manual
Tool
Change
Operation
In
the
memory-random
ATC
system
the
tool
in
the
spindle
is
returned
to
the
toolpot
in
which the
tool
to
be
set
in
the
spindle
next
is
held.
Therefore,
the
correspondence
between
the
toolpot
numbers
and the
tool
numbers
changes
each
time
the
automatic
tool
change
cycle
is
carried
out.
This
means
that the
initial
correspondence
between
toolpot
numbers
and
tool numbers
must
be
set
and
stored
in
the
memory
before
starting
the
ATC
operation.
For
setting
this
correspondence,
there
are
two
ways
as
follows:
(a)
The
table
listing
the
correspondence
between
the
toolpot
numbers
and
tool
numbers
is
made
in
advance,
the
correspondence
table is established
on
the
screen
and
individual
tools
are
stored
in
the
corresponding
toolpots
according
to
the
established
correspondence.
(b)
A
tool is
manually
set
in
the
spindle
and
is
returned
to
the
toolpot
specified
or
to
an
empty
pot,
automatically
selected
by
the
manual tool
change
operation.
In
this
section the
procedure
for
(b)
is
explained.
Refer
to
III.
DATA
OPERATION,
Section
1
,
5-2.
“ATC
Pot
No./Tool
No.
Table”
for
the
procedure
for
(a).
