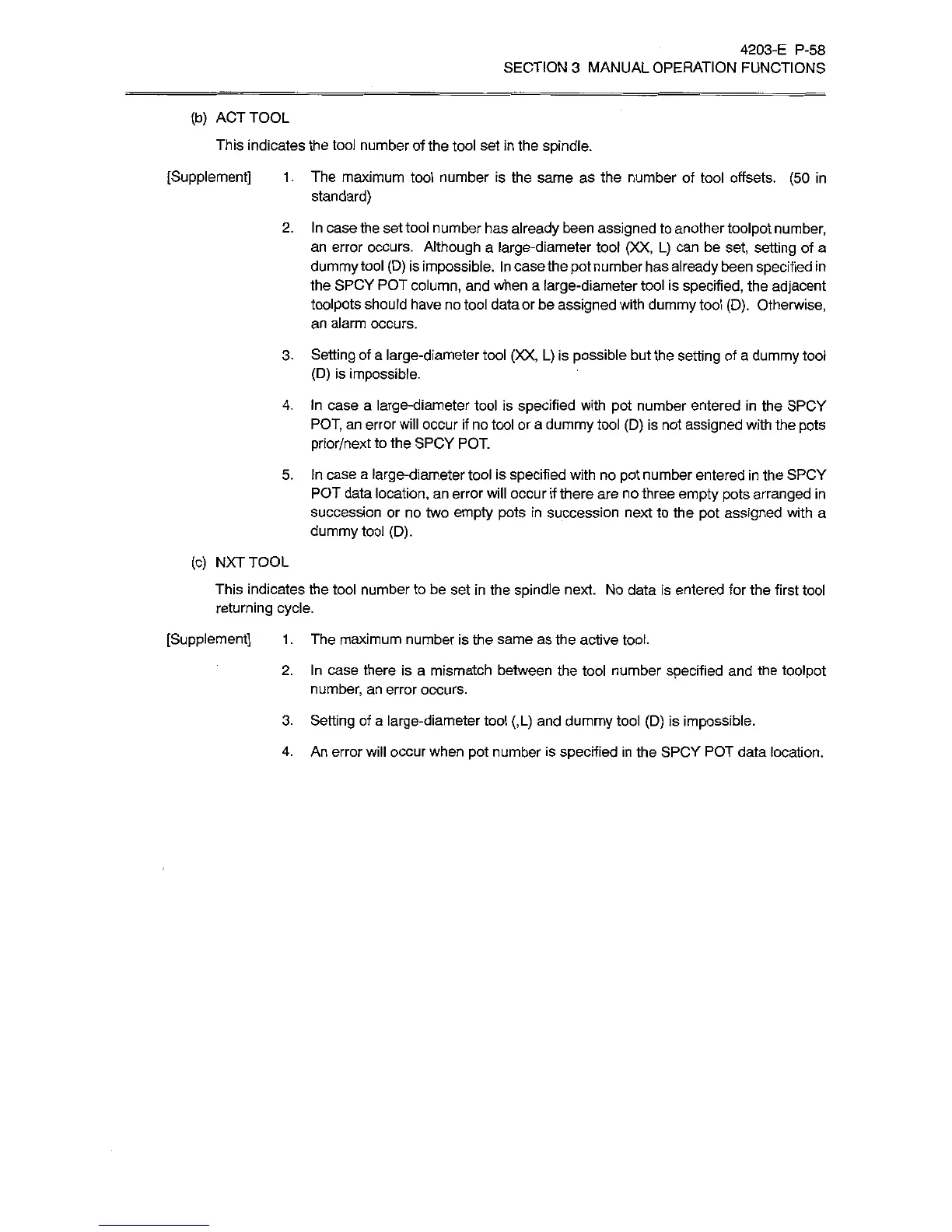

4203-E
P-58
SECTION
3
MANUAL
OPERATION
FUNCTIONS
(b)
ACT
TOOL
This
indicates
the
tool
number
of
the tool
set
in
the
spindle.
[Supplement]
1
.
The
maximum tool
number
is
the
same
as
the
number
of
tool
offsets.
(50
in
standard)
2.
In
case
the
set
tool
number
has
already
been
assigned
to
another
toolpot
number,
an
error
occurs.
Although
a
large-diameter
tool
(XX,
L)
can
be
set,
setting
of
a
dummy
tool
(D)
is
impossible.
In
case
the
pot
number has
already
been
specified
in
the
SPCY
POT
column,
and
when
a
large-diameter
tool is
specified,
the
adjacent
toolpots
should
have
no
tool data
or
be
assigned
with
dummy
tool
(D).
Otherwise,
an
alarm
occurs.
Setting
of
a
large-diameter
tool
(XX,
L)
is
possible
but
the
setting
of
a
dummy
tool
(D)
is
impossible.
In
case
a
large-diameter
tool
is
specified
with
pot
number
entered
in
the
SPCY
POT,
an
error
will
occur
if
no
tool
or
a
dummy
tool
(D)
is
not
assigned
with
the
pots
prior/next
to
the
SPCY
POT.
In
case a
large-diameter
tool
is
specified
with
no
pot
number entered
in
the
SPCY
POT
data
location,
an
error
will
occur
if
there
are
no
three
empty
pots
arranged
in
succession
or
no
two
empty
pots
in
succession
next
to
the
pot
assigned
with
a
dummy
tool
(D).
3.
4.
5.
(c)
NXT
TOOL
This
indicates
the
tool
number
to
be
set
in
the
spindie
next.
No
data
is
entered
for
the
first
tool
returning
cycle.
[Supplement]
1.
The
maximum
number is
the
same
as
the
active
tool.
2.
In
case
there
is
a
mismatch
between
the
tool
number
specified
and the
toolpot
number,
an error
occurs.
3.
Setting
of
a
large-diameter
tool
(,L)
and
dummy
tool
(D)
is
impossible.
4.
An
error
will
occur
when
pot
number is
specified
in
the
SPCY
POT
data
location.
