Oldham SV 4B - Description; Mounting of the Surveyor 4 B

7
I. DESCRIPTION
Surveyor 4B is equipped with a small "NORMAL" box (58 x 105 x 90 mm). It can be snap-fastened
onto a standard symmetrical DIN rail and is easily integrated in an electric equipment cabinet.
The components used in operation are located on the front of the appliance:
- adjustments and tests on the top (item 1),
- indicator lights on the FRONT face (item 2),
- connections at the bottom (item 3).
II. MOUNTING OF THE SURVEYOR 4B
The surveyor 4B appliance fitted on its symmetrical DIN rail can be installed in a box in any
electrical equipment cabinet and has no special installation requirements.
The Surveyor 4B can be installed in safe area only.
It should preferably be located in a monitored location (such as a guardhouse, control room or
instrumentation room).

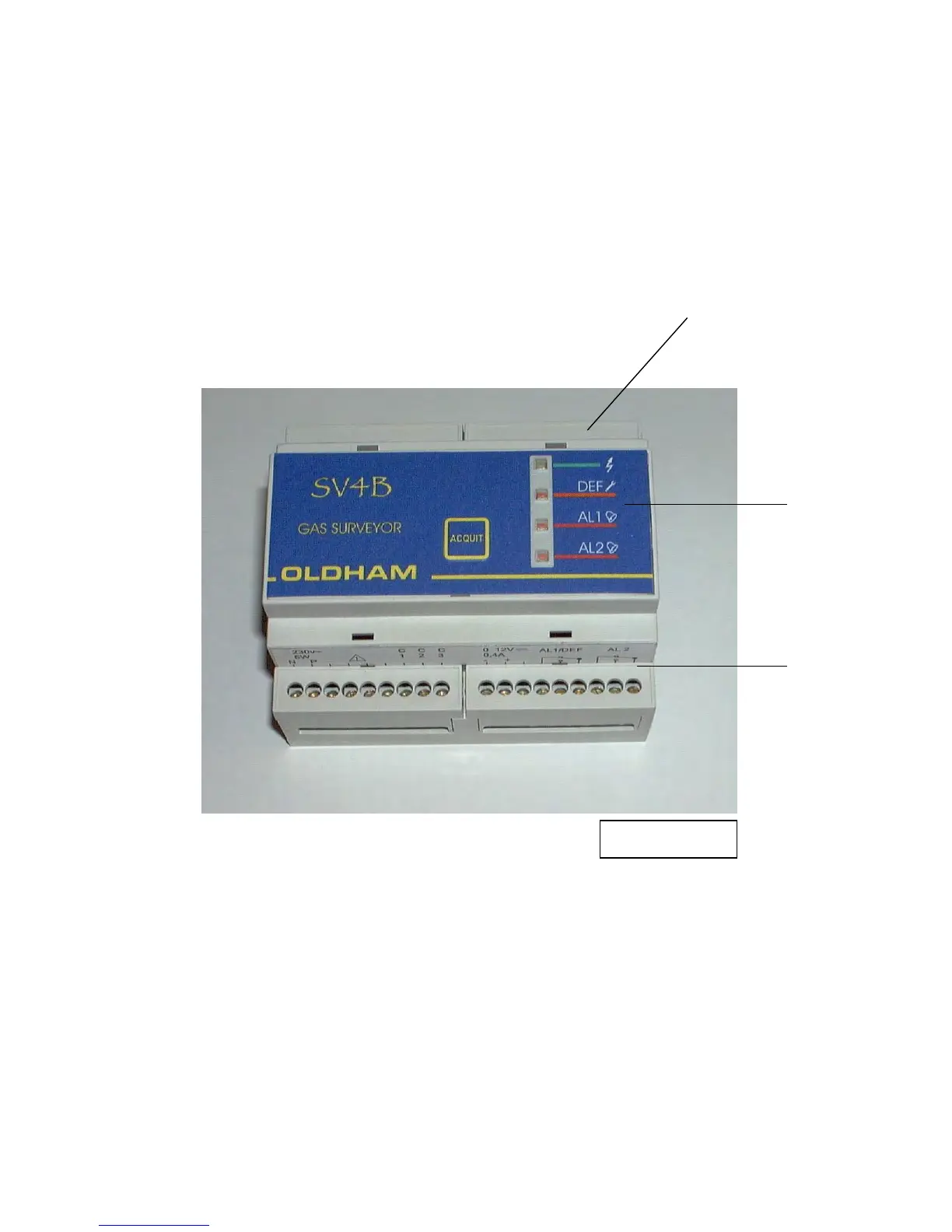

FIGURE 1
Item 1
Item 2
Item 3
