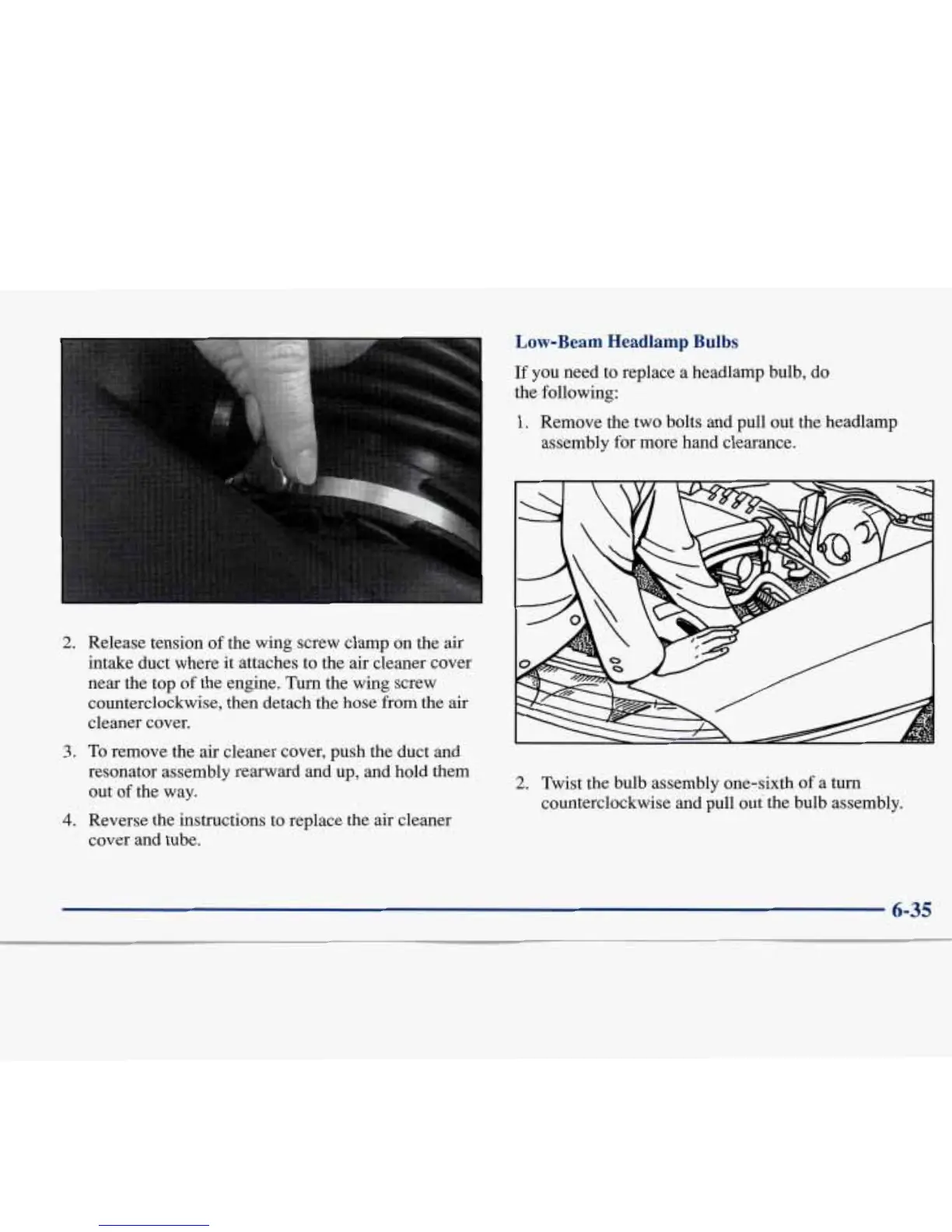

2.
Release tension of the wing screw clamp on the air
intake duct where it attaches to the air cleaner cover
near the top of the engine.
Turn
the wing screw
counterclockwise, then detach the hose
from
the air
cleaner cover.
3.
To remove the air cleaner cover, push the duct and
resonator assembly rearward and up, and hold them
out
of
the way.
cover and tube.
4.
Reverse the instructions to replace the air cleaner
Low-Beam Headlamp Bulbs
If
you need to replace a headlamp bulb, do
the following:
1.
Remove the two bolts and pull out the headlamp
assembly for more hand clearance.
2.
Twist the bulb assembly one-sixth of a
turn
counterclockwise and pull out the bulb assembly.
6-35
