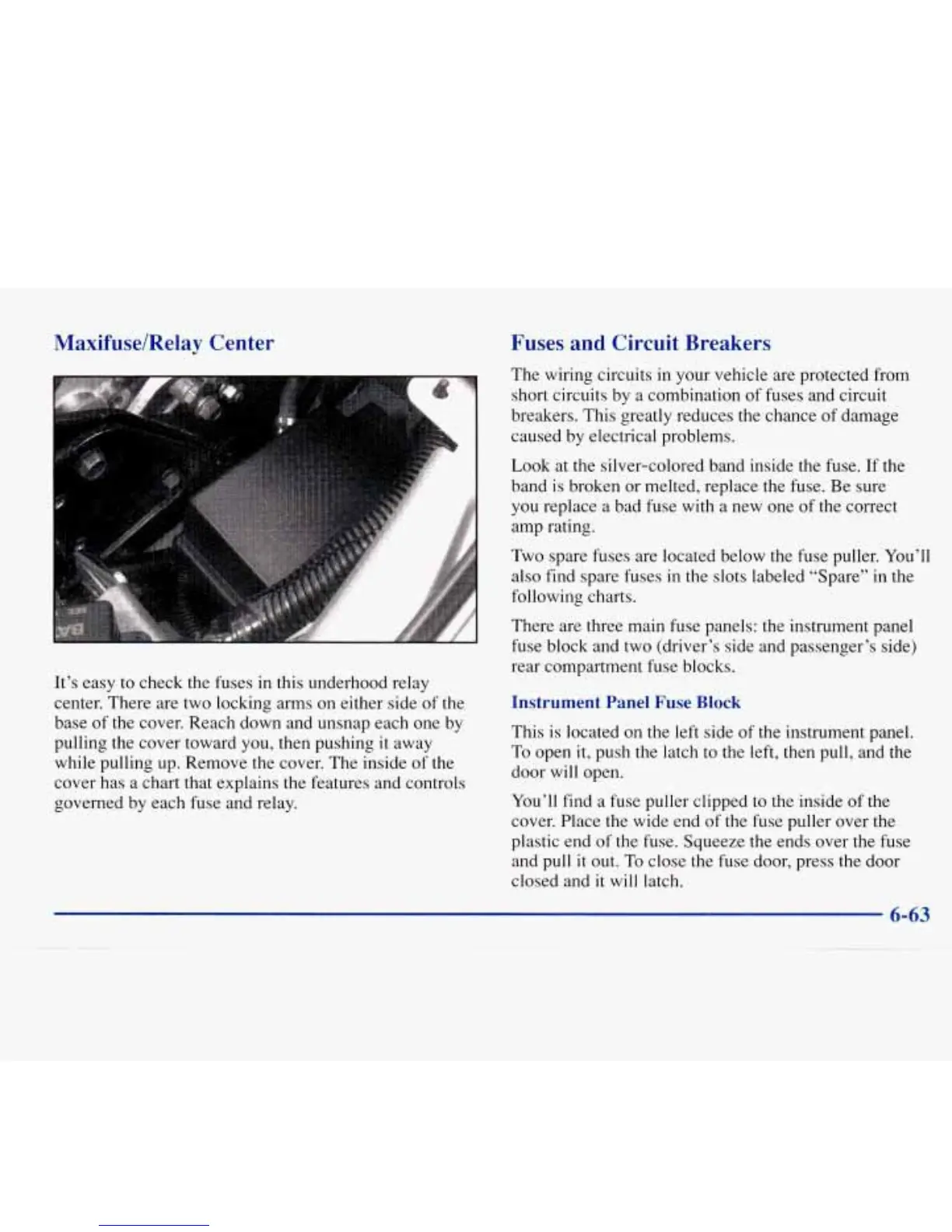

Maxifuse/Relay Center
It’s easy to check the fuses in this underhood relay
center. There are two locking arms on either side
of
the
base of the cover. Reach down and unsnap each one by
pulling
the
cover toward you, then pushing
it
away
while pulling up. Remove the cover.
The
inside of the
cover has a chart that explains the features and controls
governed by each fuse and relay.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits
by
a combination
of
fuses and circuit
breakers. This greatly reduces the chance of damage
caused by electrical problems.
Look
at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure
you replace a bad fuse with a new one of the correct
amp rating.
Two spare fuses are located below the fuse puller.
You’ll
also find spare fuses in the slots labeled “Spare” in the
following charts.
There are three main fuse panels: the instrument panel
fuse block and two (driver’s side and passenger’s side)
rear compartment fuse blocks.
Instrument Panel Fuse Block
This is located on the left side
of
the instrument panel.
To
open it, push the latch to the left, then pull, and the
door will open.
You’ll find a fuse puller clipped to the inside of the
cover. Place the wide end of the fuse puller over the
plastic end
of
the fuse. Squeeze the ends over the fuse
and pull
it
out. To close the
fuse
door, press the door
closed and it will latch.
