Oldsmobile 2003 Bravada

A
I
I
B
C
-

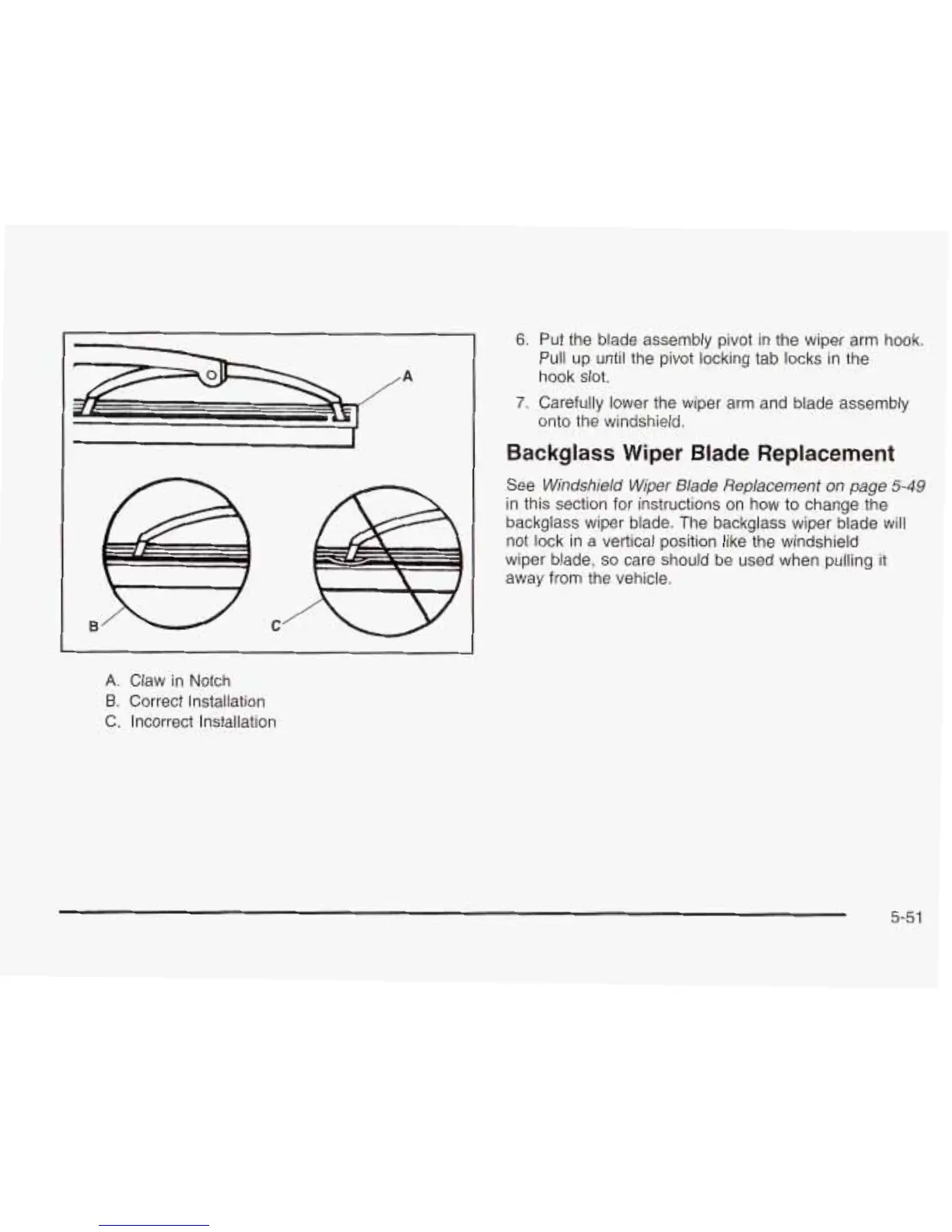

A. Claw in Notch
B. Correct Installation
C. Incorrect Installation
6. Put the blade assembly pivot in the wiper arm hook.
Pull up until the pivot locking tab locks
in the
hook slot.
7. Carefully lower the wiper arm and blade assembly
onto the windshield.
Backglass Wiper Blade Replacement
See Windshield Wiper Blade Replacement on page 5-49
in this section for instructions on how to change the
backglass wiper blade. The backglass wiper blade will
not lock in a vertical position like the windshield
wiper blade,
so care should be used when pulling it
away from the vehicle.
5-51
