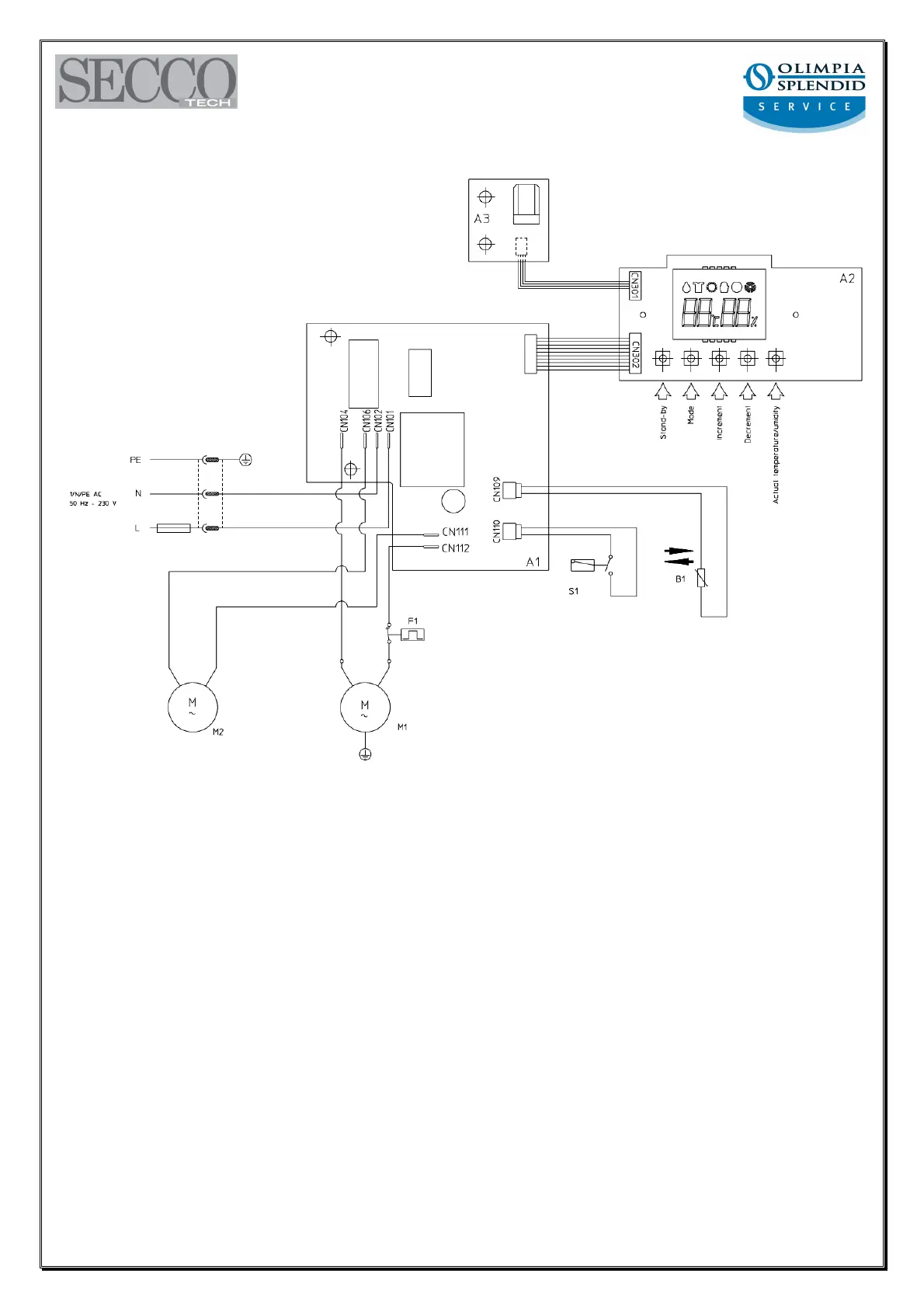

SECCO TECH WIRING DIAGRAM
A1 - Power board
A2 - Control board
A3 - Humidity/temperature sensor board
B1 - Evaporator temperature probe
F1 - Overload protector
M1 - Compressor
M2 - Fan motor
S1 - Microswitch
