797-N BREAD SLICER
0797S20023 3-3

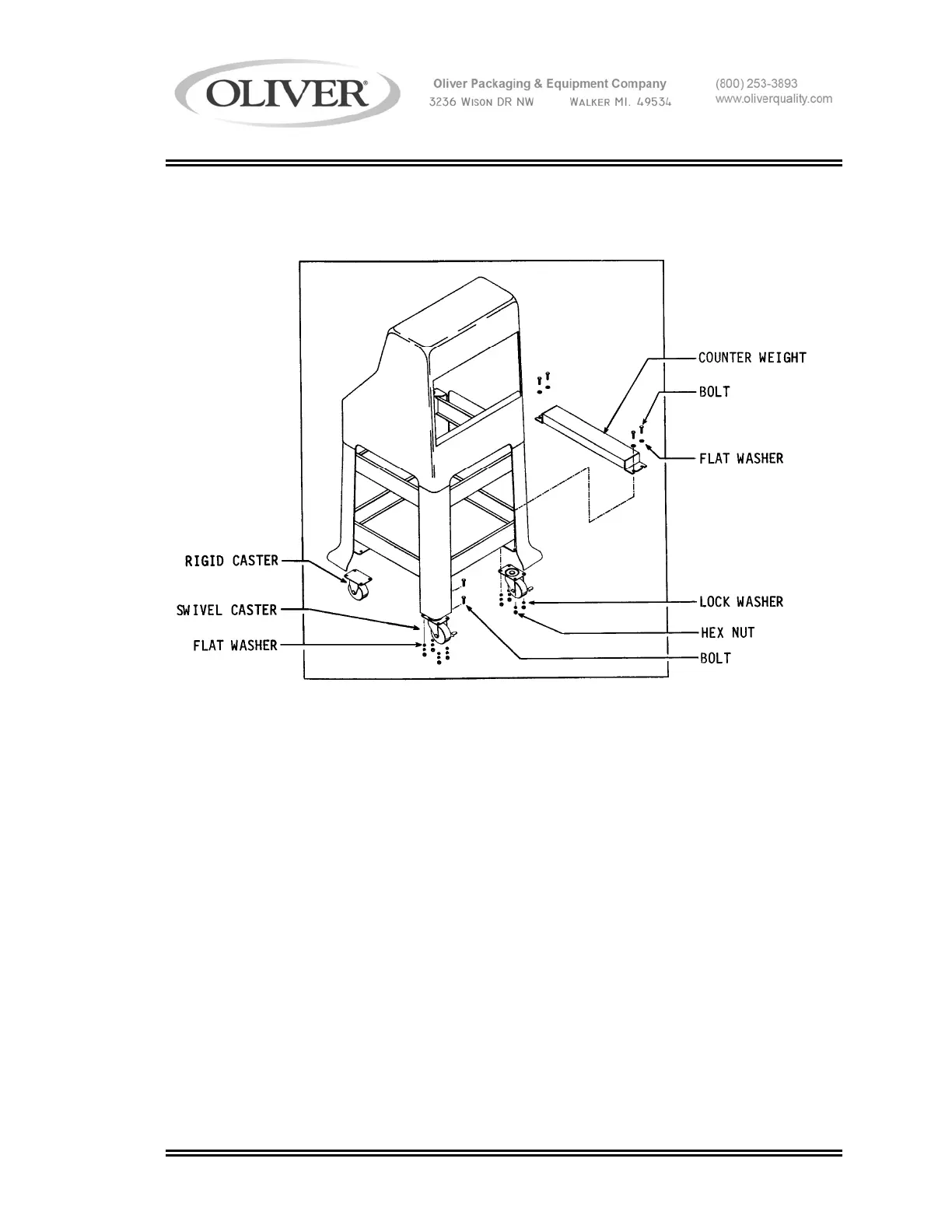

On all slicers equipped with either the Power Belt infeed chute option, or a Model 1179S
bagger, a counterweight must be attached to the caster brackets on the right-hand side
of the machine, (as viewed from the outfeed side of the slicer). See the above
illustration. This counterweight must not be removed. Use the same hardware used to
secure the weight to attach the casters when both are used. Add additional bolts,
washers and nuts on those caster plate holes not involved with the weight mounted as
shown. Install one rigid caster and one swivel caster on the right-hand side of the
machine, (the weight side). Remember, the rigid casters must be installed on the infeed
side of the machine.
Install the remaining two casters as previously described, setting their brakes tightly.
After completing the installation, chock the locked wheels using a 2 x 4 to ensure that
they will not roll or skid when lifting the slicer back to the upright position. Once the
machine is upright release the brakes and roll the slicer to its desired location.
Rev. 8/3/04
