797-N BREAD SLICER
0797S20026 6-11
Adjusting the Blade Frames When Slices Vary in Thickness
WARNING
ALWAYS DISCONNECT THE SLICER FROM THE POWER SUPPLY BEFORE
ATTEMPTING ANY TYPE OF MAINTENANCE TASK.

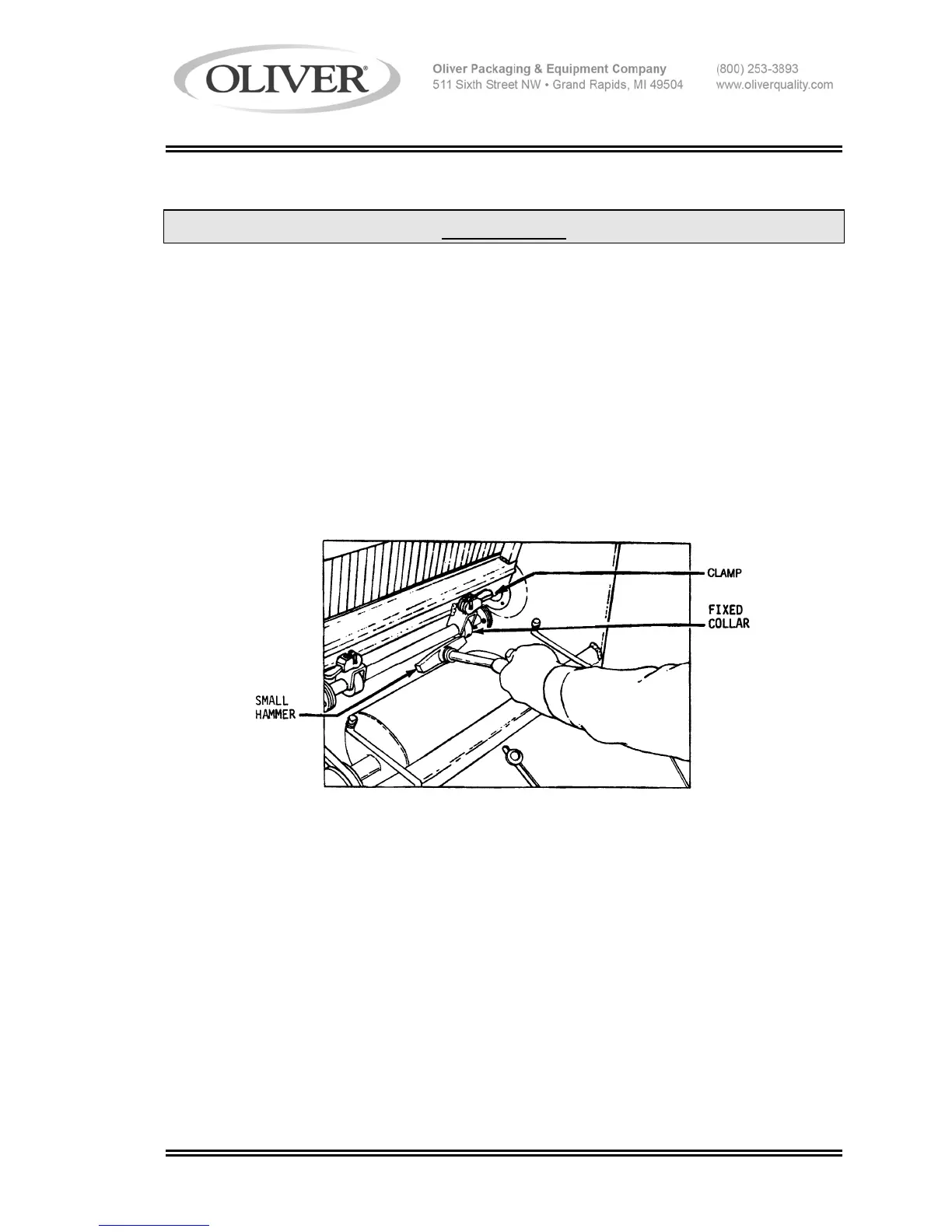

Swing out the discharge table of the slicer. Loosen, but do not remove the two locking
cams, (clamps), which secure the blade frame to the swing shaft. Remove the plastic
plug over the set screw in the fixed collar, see below. Using an allen wrench, loosen; but
do not remove, the set screw in the fixed collar. Using a ruler, (15” maximum), measure
the distance between the blades. Gently tap the collar with a small mallet either to the
right or left until the distances between the blades is equal. When satisfied with the
location tighten the fixed collar’s set screw and replace the plastic plug. Lastly tighten
the two locking cams which secure the blade frame.
