(2) Detaching and refitting the MP separation, MP paper feed and MP forwarding pulleys

Follow the procedure below to replace the MP separation, MP paper feed and MP forwarding pulleys.

Procedure

Removing the MP unit

1. Remove two screws and remove the scan-

ner right cover.

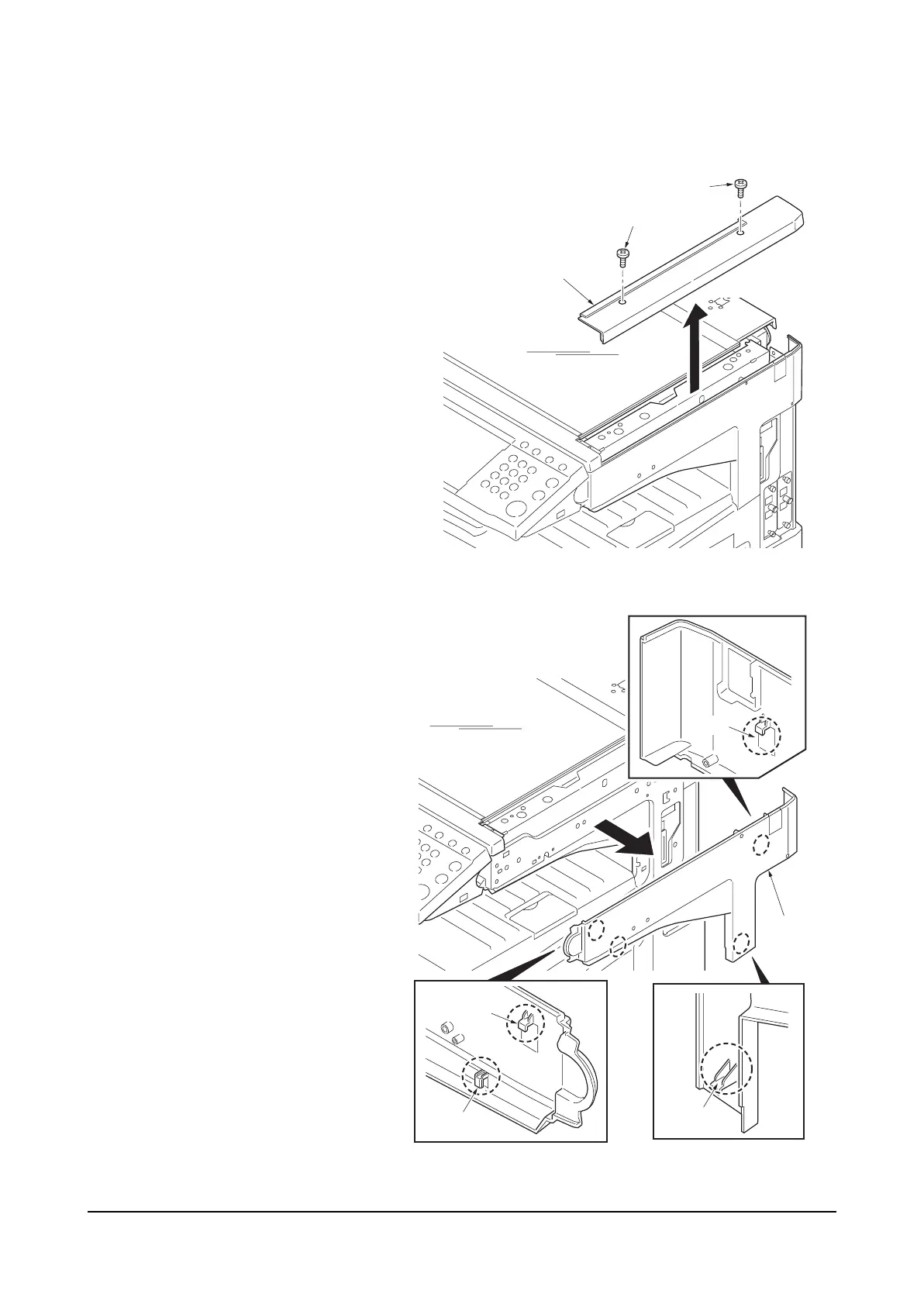

Figure 1-5-7

2. Remove four hooks and remove the right

upper cover.

Figure 1-5-8

Screw

Scanner right cover

Right upper

cover

Hook

Y108620-5 Service Manual
