4 from 21
921116000
Date
File
Code
Page
BS-116 connection
ATTENTION!!
ONLY 4 PANELS BS-116 CAN
BE CONNECTED IN ONE
INSTALLATION. To connect
the panels use ONLY the +A
and -A terminals. DON’T USE the
+ and - terminals.
BS-116
panel
BS-116
panel
BS-116
panel
BS-116
panel
The maximum possible configuration consists of one BS-114 control keyboard, four BS-116
panels , three BS-115 repeaters, four BS-117 relay devices and eight BS-118 extinguishing
devices. Each device has it’s own address number. The connection between all of these
devices is shown in figure 2. Each panel can also accept a BS-620 megaphone driving
device.
Any configuration between the minimum and maximum described is possible. In this way a
fire detection panel with the required capabilities can be configured.

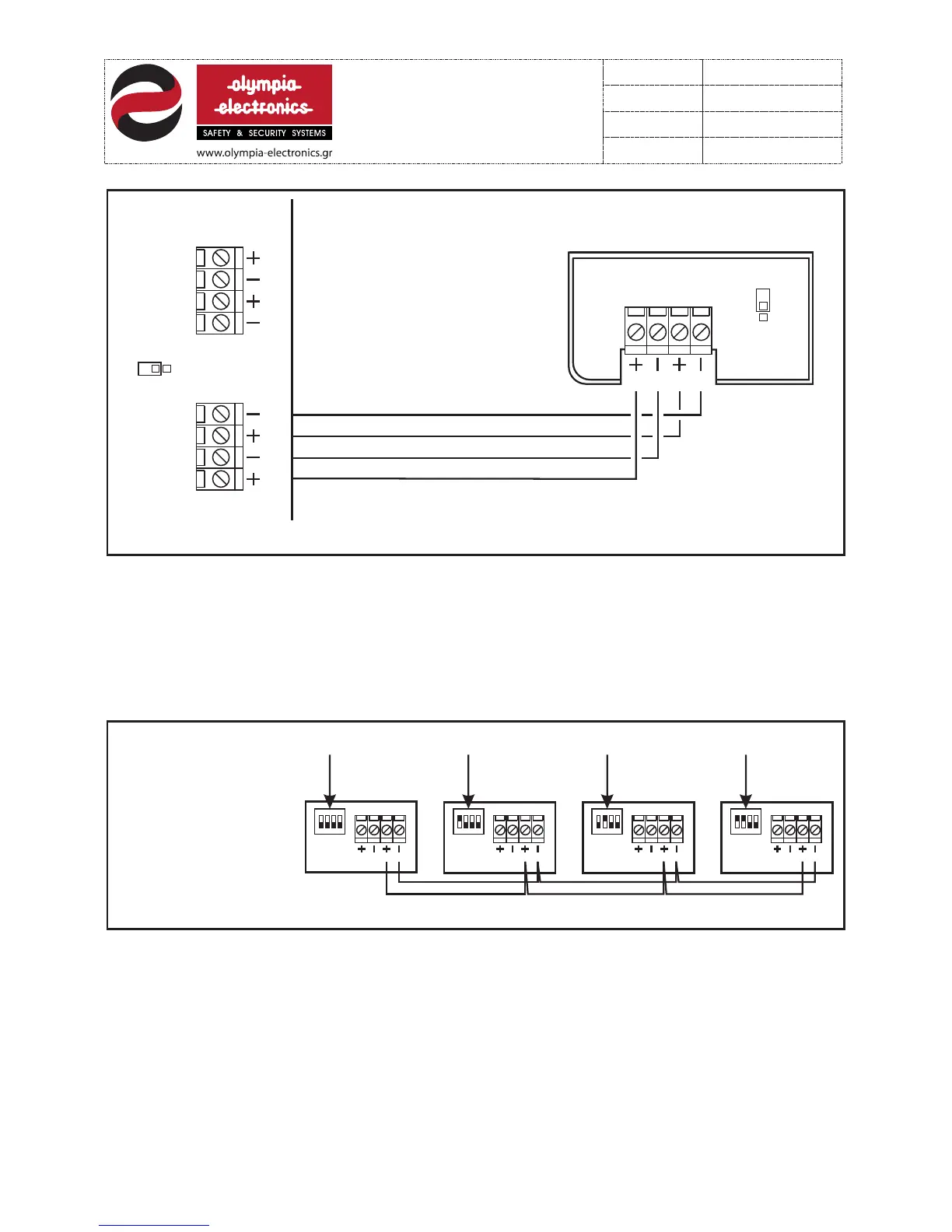

Figure 1 Connection of a BS-114 control keyboard with a BS-116 panel
BS-114
Programming and
control keyboard
BS-116
Fire detection panel
-Connection between panels.
The make a network between pan only the +A, -A must be connected. Below picture shows
the connection between panels.
Attention!!! To give an address to each panel use the dip-switches as shown in the
following diagram (Address 1,2,3 and 4).
A
A
A
A
A
A
1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4
A
A
Address 1 Address 2 Address 3 Address 4
921116000_09_016
13/03/2013
A
A
A
A
Siren 1 Siren 2
JP 1
J 6
To Next Page
