230V AC
Page 17 from 18

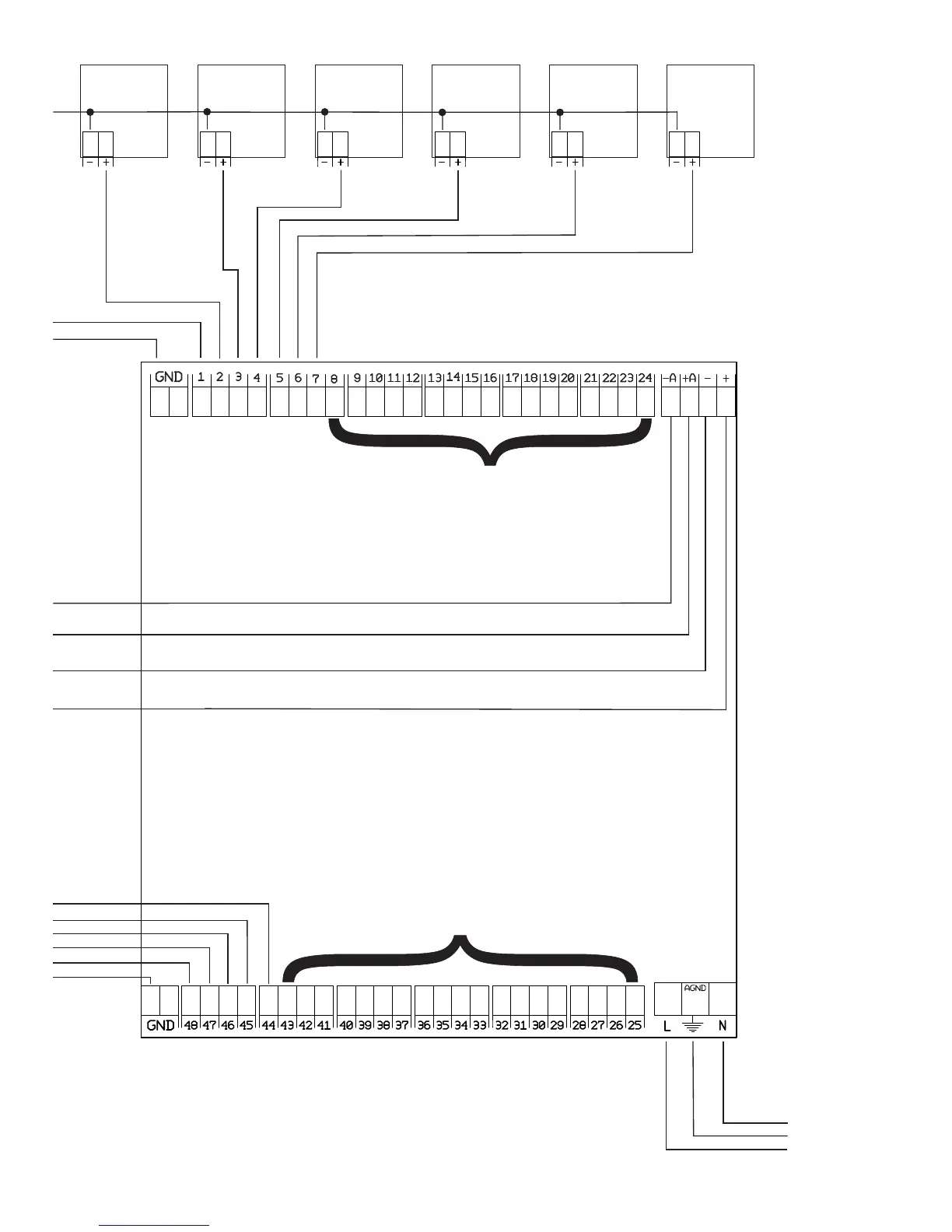

Call point Call point Call point Call point Call point Call point
The call points that are connected to the terminal blocks
8-24 are connected in the same manner as the
call points on the terminal blocks 1-7
The call points that are connected to the terminal blocks 25-43 are
connected in the same manner as the
call points on the terminal blocks 44-48
921746000_09_003
To Next Page
