Olympia LT-80 - Fuel Filter

P O W E R
automatic operation
manual operation
burner s/w turns on
burner s/w turns on
auto/man s/w : auto
auto/man s/w : manual
lock release
inter lock release
blower/gear pump operate
blower/gear pump/ ignition transformer operation
operation of ignition bar
low combustion s/w : on
low combustion valve : on
high combustion s/w : on
flame detecter check the ignition
hydraulic cylinder or damper motor operates
hydraulic cylinder or damper motor operates
safety device does not operate in the manual mode,
use manual mode for emergency operation only.
continue to check conditions of flame during manual
operation
high combustion valve : on
automatic operation by inter lock
☞ auction: take care of the ignition transformer as high voltage is applied to the
ignition transformer.
7) FUEL FILTER.

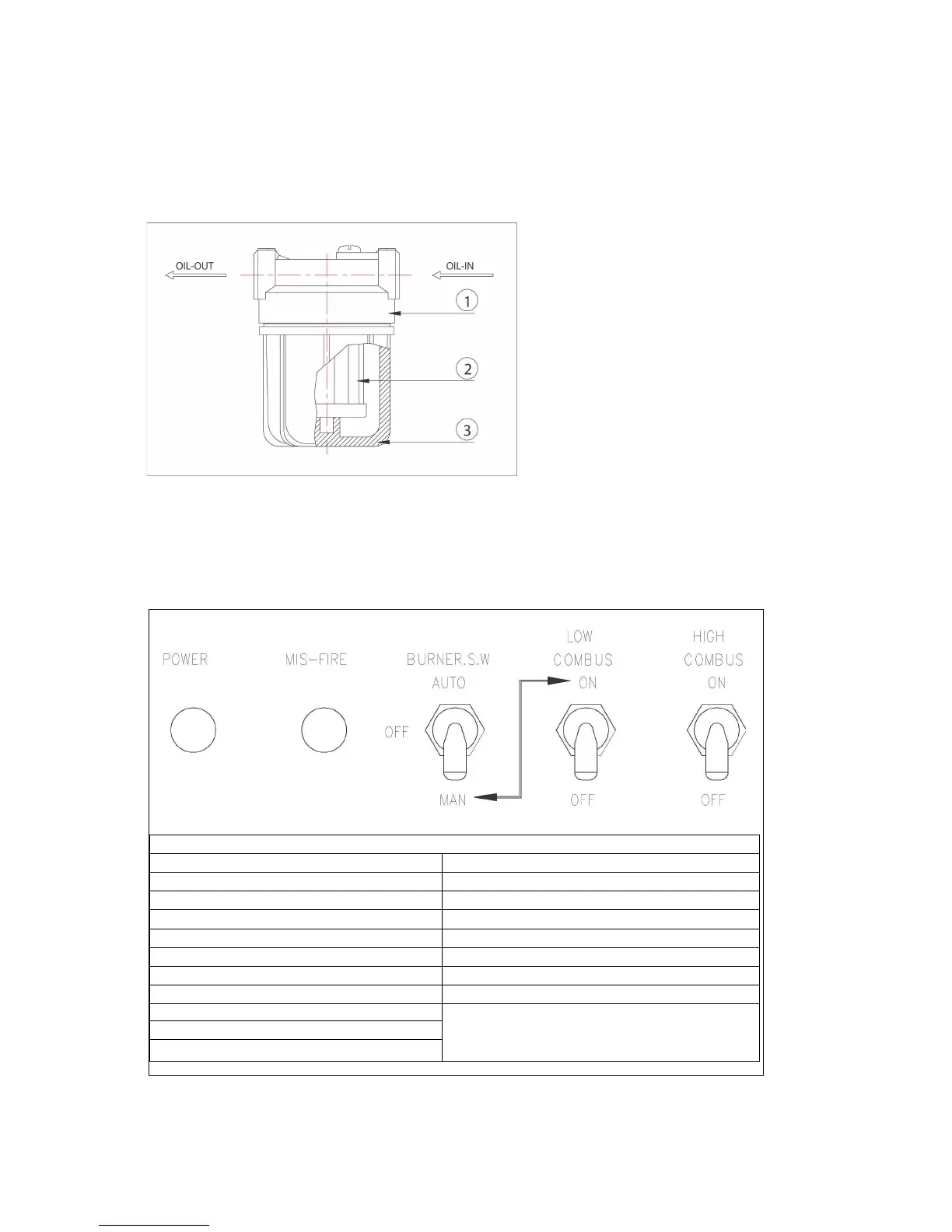

▶ how to handle fuel filter
․ the fuel filter removes foreign
substance from fuel.
․ when burner does not generate
flame as no fuel is fed even if
oil pipe is contained in the fuel
tank, clean the fuel filter.
․ when fulling out a container ③
below the plastic cap①, you
find a filter② in the container.
․ clean the filter using kerosene
or light oil, replace filter.
◉ fully tighten the filter to prevent penetration of air after cleaning the filter.
