Technical data
10 Technical data
10.1 General dimensions
10.1.1 Telescope
Working length
WA2T400A ..................................................................... 280.2 mm
WA2T412A ..................................................................... 280.0 mm
WA2T430A ..................................................................... 282.2 mm
WA2T470A ..................................................................... 284.0 mm
WA2T43WA ....................................................................283.3 mm
WA2T412P ..................................................................... 280.0 mm
WA2T430P ..................................................................... 282.2 mm
WA2T470P ..................................................................... 284.0 mm
Maximum insertion portion width
WA2T400A, WA2T412A, WA2T430A, WA2T470A,
WA2T43WA, WA2T412P, WA2T430P, WA2T470P .......... 4.05 mm

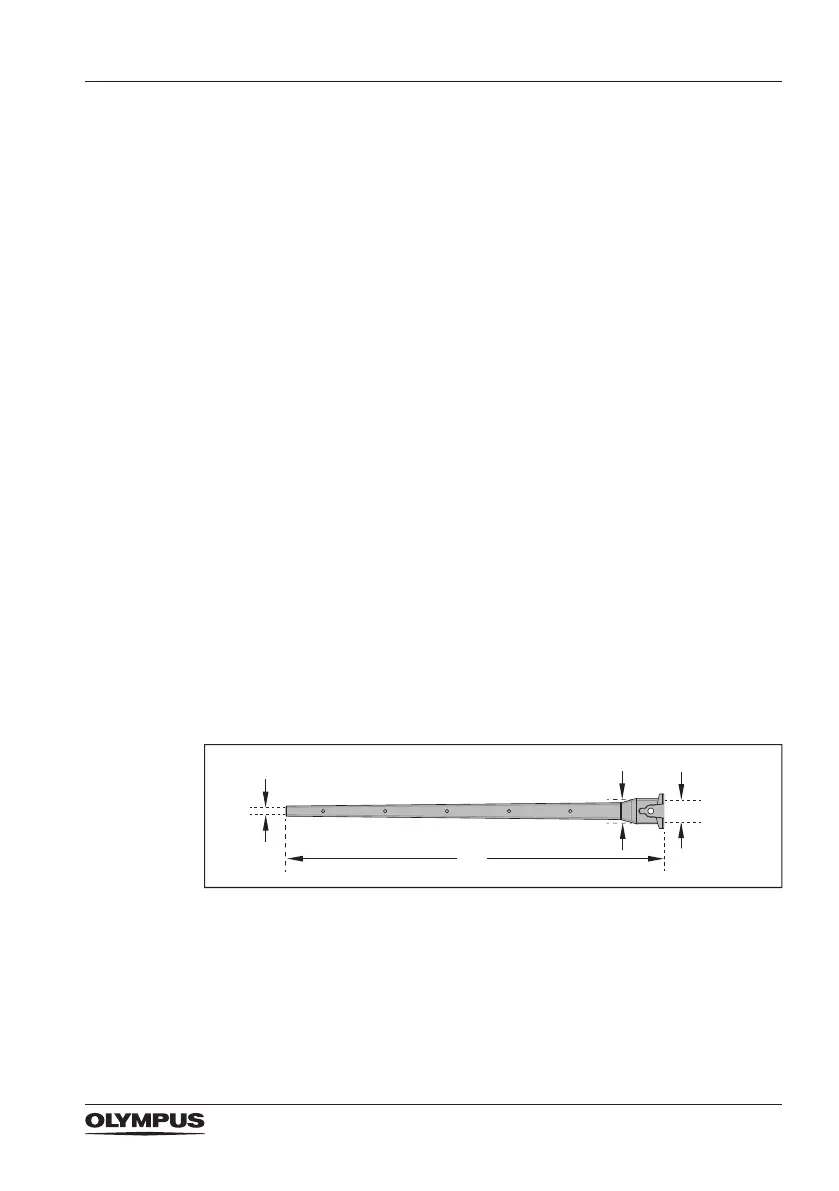

10.1.2 Protective tube
WA2P400A
L1: Length .........................................................................305 mm
D1: Inner diameter 1 .......................................................... 5.0 mm
D2: Inner diameter 2 ........................................................ 10.0 mm
D3: Inner diameter 3 ........................................................ 17.3 mm
D1
D2
D3
L1
