Technical data
10.2 Dimensions for reprocessing
This section lists all relevant dimensions for reprocessing the
product. For reprocessing the product, refer to the chapter
“Reprocessing” on page 27.

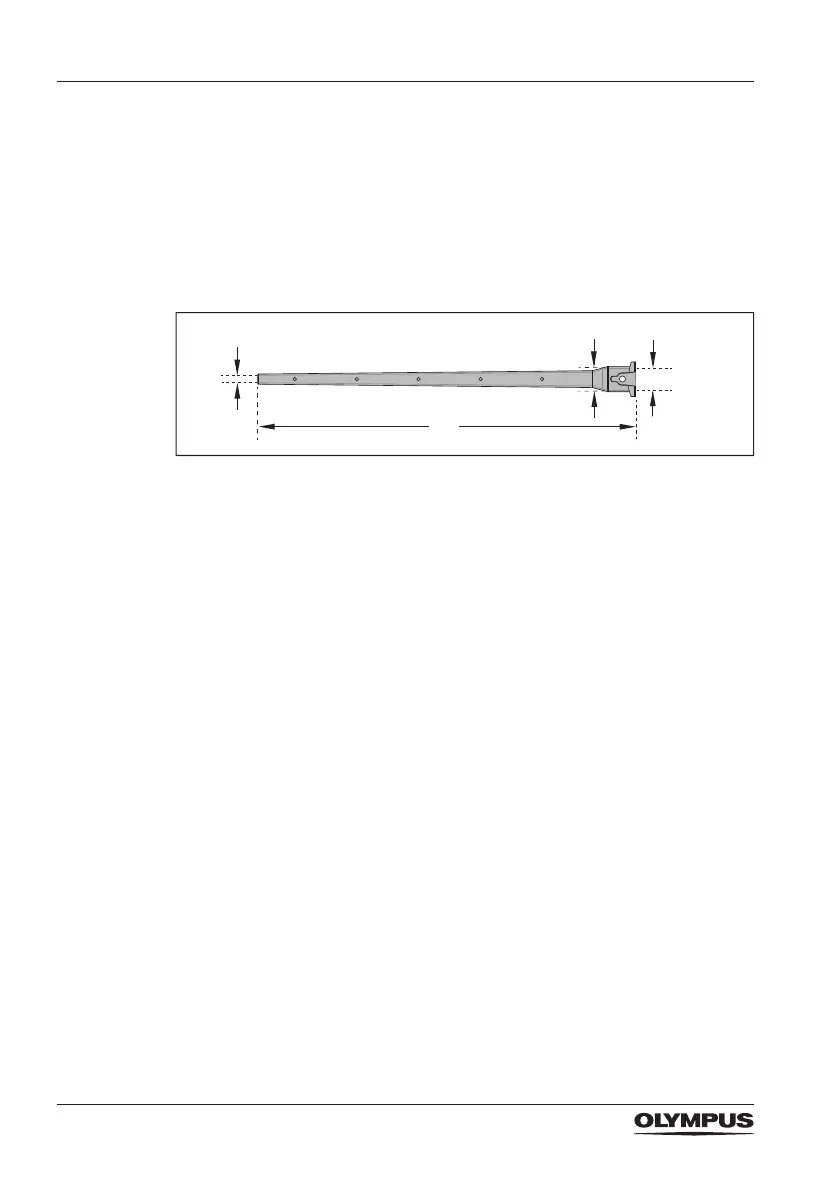

Protective tube WA2P400A
L1: Length .........................................................................305 mm
D1: Inner diameter 1 .......................................................... 5.0 mm
D2: Inner diameter 2 ........................................................ 10.0 mm
D3: Inner diameter 3 ........................................................ 17.3 mm
10.3 Specications
Direction of view
WA2T400A .................................................................................0°
WA2T412A ...............................................................................12°
WA2T430A ...............................................................................30°
WA2T470A ...............................................................................70°
WA2T43WA ..............................................................................30°
WA2T412P ...............................................................................12°
WA2T430P ...............................................................................30°
WA2T470P ...............................................................................70°
10.4 Ambient conditions
Operating conditions
Ambient temperature ............................10 to 40 °C (50 to 104 °F)
Relative humidity ............................................................ 30 to 85%
Atmospheric pressure ..........................................700 to 1060 hPa
D1
D2
D3
L1
