Chapter 3 Preparation for use
FLUSHING PUMP OFP-2
29
15. Instrument channel connection (MAJ-1606/7): Refer to Figure 3.9 and connect the Luer
lock connector on the MAJ-1607 water tube to the MAJ-1606 instrument channel adaptor
attached to the instrument channel port on the endoscope.
16. Auxiliary channel connection (with MAJ-1608/MAJ-855): Refer to Figure 3.10 and
connect the Luer lock connector on the MAJ-1608 water tube to the MAJ-855 auxiliary water
tube attached to the auxiliary channel port on the endoscope.

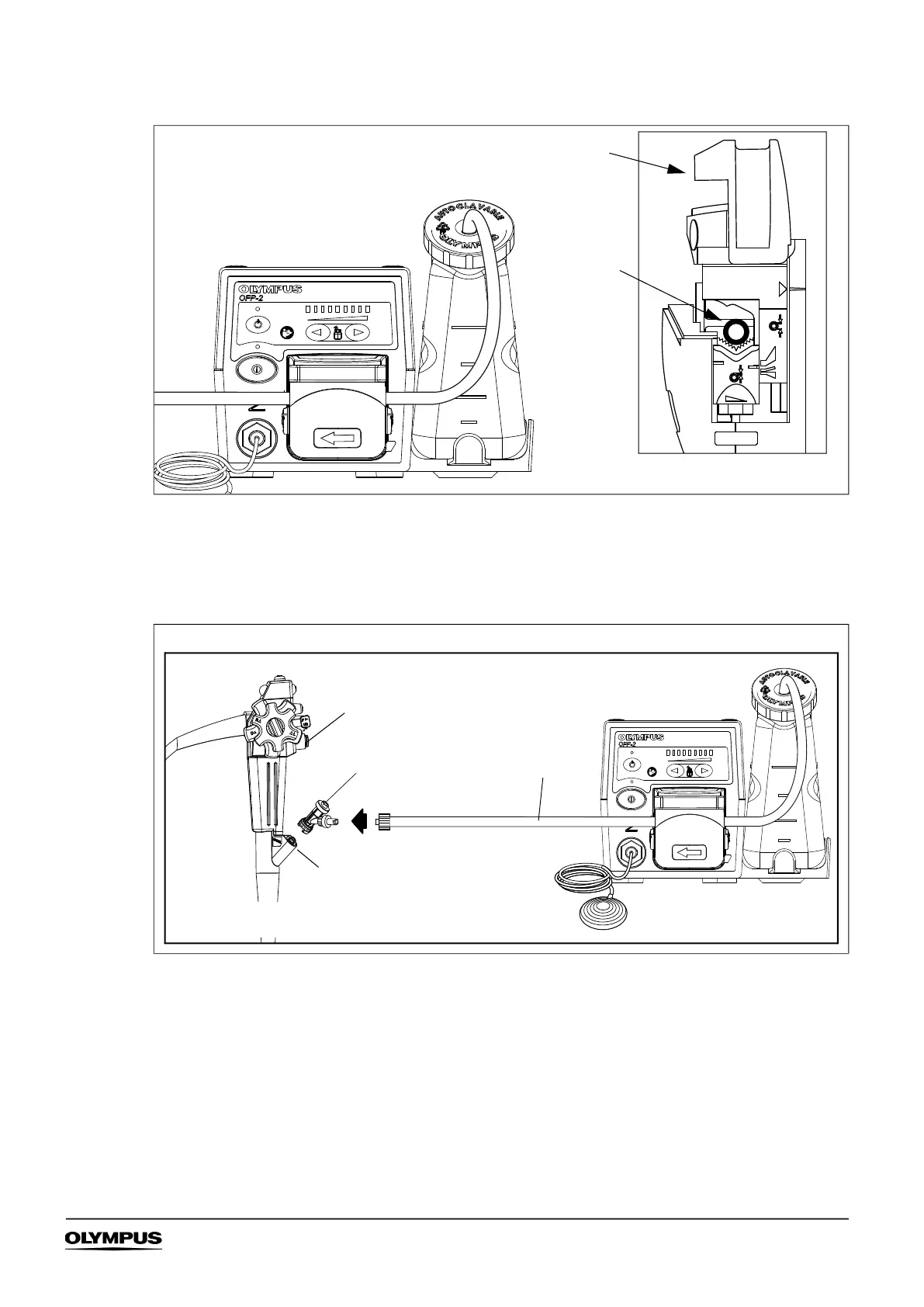

Figure 3.8
Figure 3.9
Pump head
lever
Pump head - side view
Tube
MAJ-1607
Endoscope
MAJ-1606
Instrument channel port
Instrument channel use
To Next Page
