Chapter 7 Maintenance and Repair
FLUSHING PUMP OFP-2
47
2. Attach the pump head

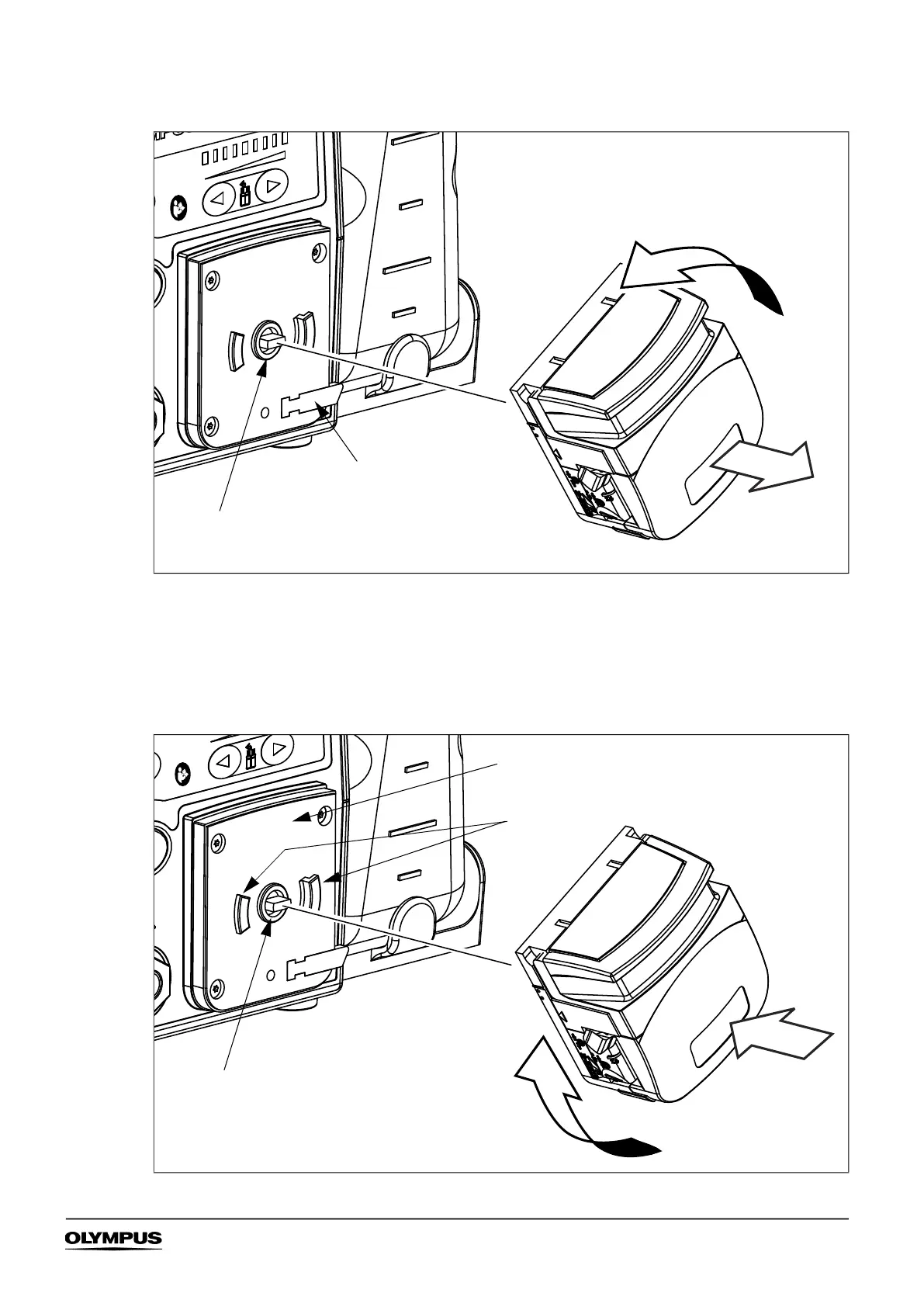

Tilt the pump head approximately 45° as shown in Figure 7.2, and attach it to the mounting
plate. Align the pump drive shaft with the drive slot on the back of the pump head (Figure
7.3). Then rotate the pump head clockwise until it locks into an upright position.
Figure 7.1
Figure 7.2
Pump head release lever
Pump drive shaft
Pump head
Pump drive shaft
Pump head
Mounting plate
Bayonet
