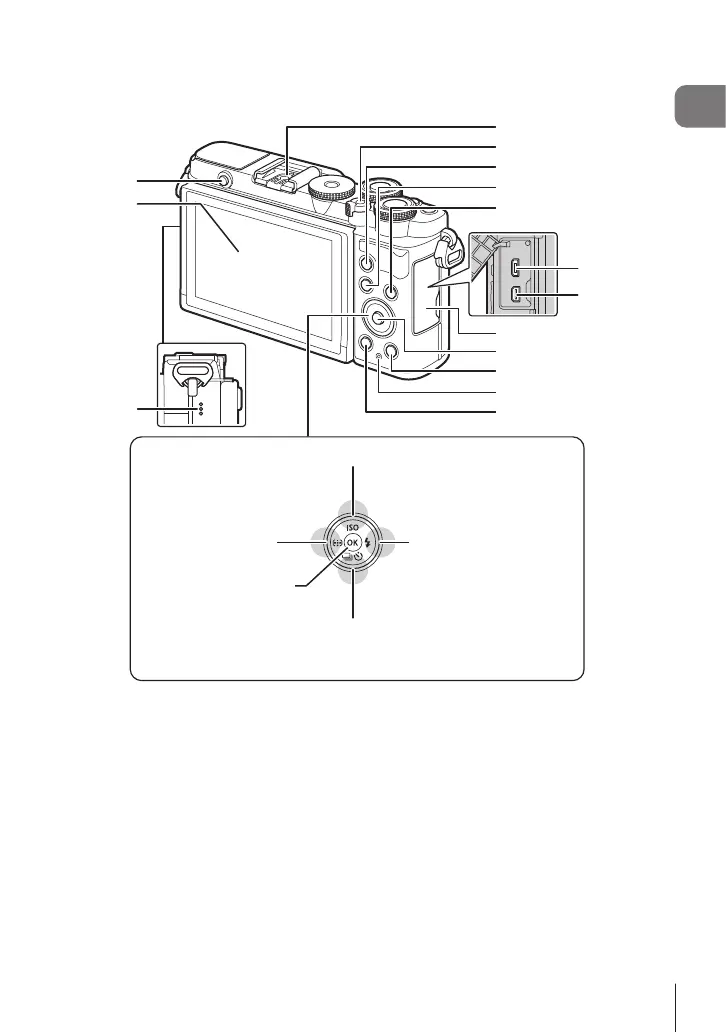

Names of parts
13 EN
1
3
2
4
7
8
b
c
d
a
e
5
6
9
0
F (Up) / ISO button (P. 83)
G (Down) / jY (Sequential shooting/Self-timer)
button (P. 86)
H (Left) /
N (AF target) button
(P. 81)
I (Right) /
# (Flash) button (P. 84)
Q button (P. 90, 118)
f
1 Flash pop-up button ........................P. 84
2 Monitor (Touch screen)
............................ P. 26, 32, 89, 116, 126
3 Speaker
4 Hot shoe .......................................P. 169
5 ON/OFF lever ................................P. 22
6 AEL/AFL button .......... P. 112, 113, 151
7 MENU button ...............................P. 128
8 INFO button ................... P. 28, 117, 152
9 Micro-USB connector....................P. 164
0 HDMI micro connector ..................P. 153
a Connector cover
b Q button ................................P. 91, 118
c q (Playback) button ....................P. 118
d CHARGE (battery charge) lamp ....P. 18
e D (Erase) button ..........................P. 121
f Arrow pad* ................. P. 23, 81 – 86, 118
* In this manual, the FGHI icons represent operations performed using the arrow pad.
