3. Install the digital camera
Open the Case

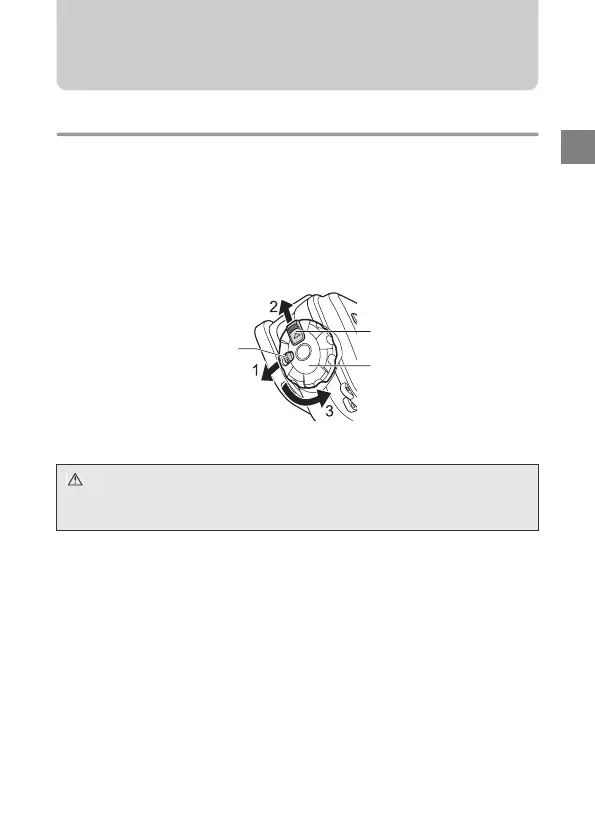

1 Slide the lock knob towards the arrow direction (1 of figure below).
2 Slide and hold the slide lock towards the arrow direction (2 of figure
below) and turn the open/close dial counter clockwise (3 of figure
below).
3 Turn the open/close dial to the position where it cannot be turned
further.
4 Open the rear lid of the Case gently.
CAUTION:
Do not exert too much force while turning the open/close dial. Doing so may
damage the dial.
Slide lock
Open
Open/close dial
Lock knob
