WM--P1 SERIES WORKSTATIONS
8 ILLUSTRATED PARTS LIST - ACCESSORIES
8.1 MAJ- 155 UNIVERSAL DISPLAY ARM - LCD

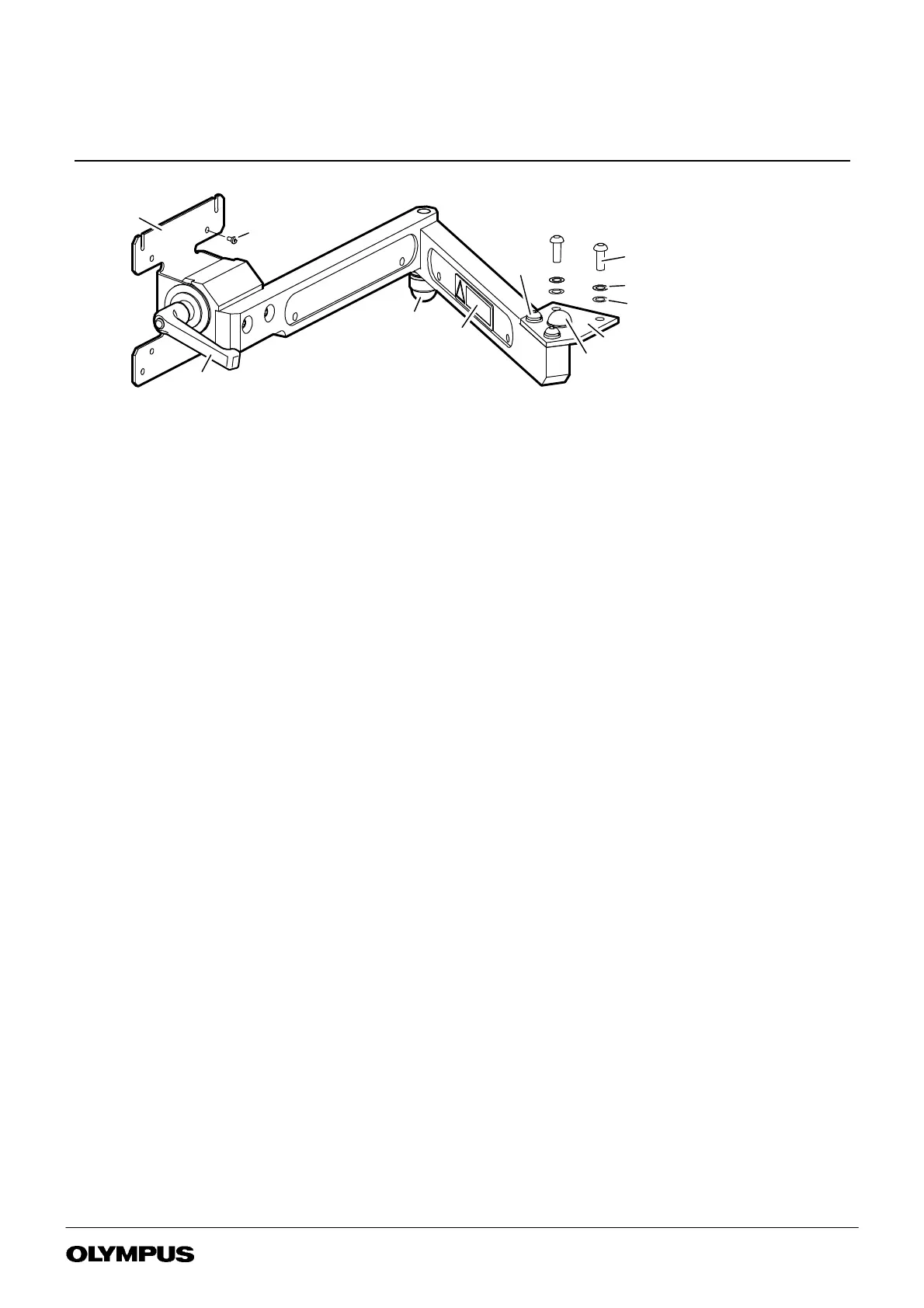

FIGURE 8-1
MAJ--155 UNIVERSAL DISPLAY
ARM -- LCD
5
15
33
23
2
27
4
13
26
26Nm
9
24
2
1
23
2
26
2
24
2
MAJ- 155 UNIVERSAL DISPLAY ARM - LCD p/no K7505210
Item Description Part No Qty
Torque
Remarks
1 BRACKET--UNIVERSALDISPLAYLCD ................... K7505259 1 -- --
2--4 SPARE
5 MAJ--132LCDBRACKET ............................. K7504769 1 -- --
6SPARE
7 BOLTCOACHM10x75L ............................. K3921545 1 -- A, NS
8SPARE
9 FOOT ........................................... 3021521 1 -- --
10, 11 SPARE
12 NUTNORMALM10 ................................. 3038564 1 -- A, NS
13 M10PROTECTIONCAP.............................. K3921359 1 -- --
14 CABLE TIE RELEASABLE ............................ K3921530 4 -- NS
15 HANDLE ADJUSTABLE LEVER FEMALE .................. K3921195 1 -- A
16--19 SPARE
20 WASHERPLAINM10 ................................ K3921197 1 -- A, NS
21 WASHERBELVILLE ................................. K3921196 1 -- A, NS
22 WASHER--CORKLCD .............................. K7504371 2 -- A, NS
23 WASHERM6SINGLECOIL ........................... 3072771 6 -- --
24 WASHERM6 ...................................... 3117138 6 -- --
25 SPARE
26 SCREWM6x25HEXSKTBUTTHD .................... 3920369 6 -- --
27 SCREWM4x10PHILLIPSFLANGEPANHD .............. K3921655 4 -- --
28 SPARE
29 ALLENKEY4MMA/FSHORT.......................... 3066011 1 -- NS
30 INSTRUCTIONS FOR MAJ--155 (ENG) ................... K5070429 1 -- NS
31 SPARE
33 LABEL--CAUTION ARM .............................. K7505319 1 -- --
Remarks
NS Not shown
A Used on REPAIR KIT TILT FOR MAJ--132 p/no K7504865
AlsoprintedinWM--SC/TI--3
