Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.9 MAJ- 190 EQUIPMENT SUPPORT RAIL

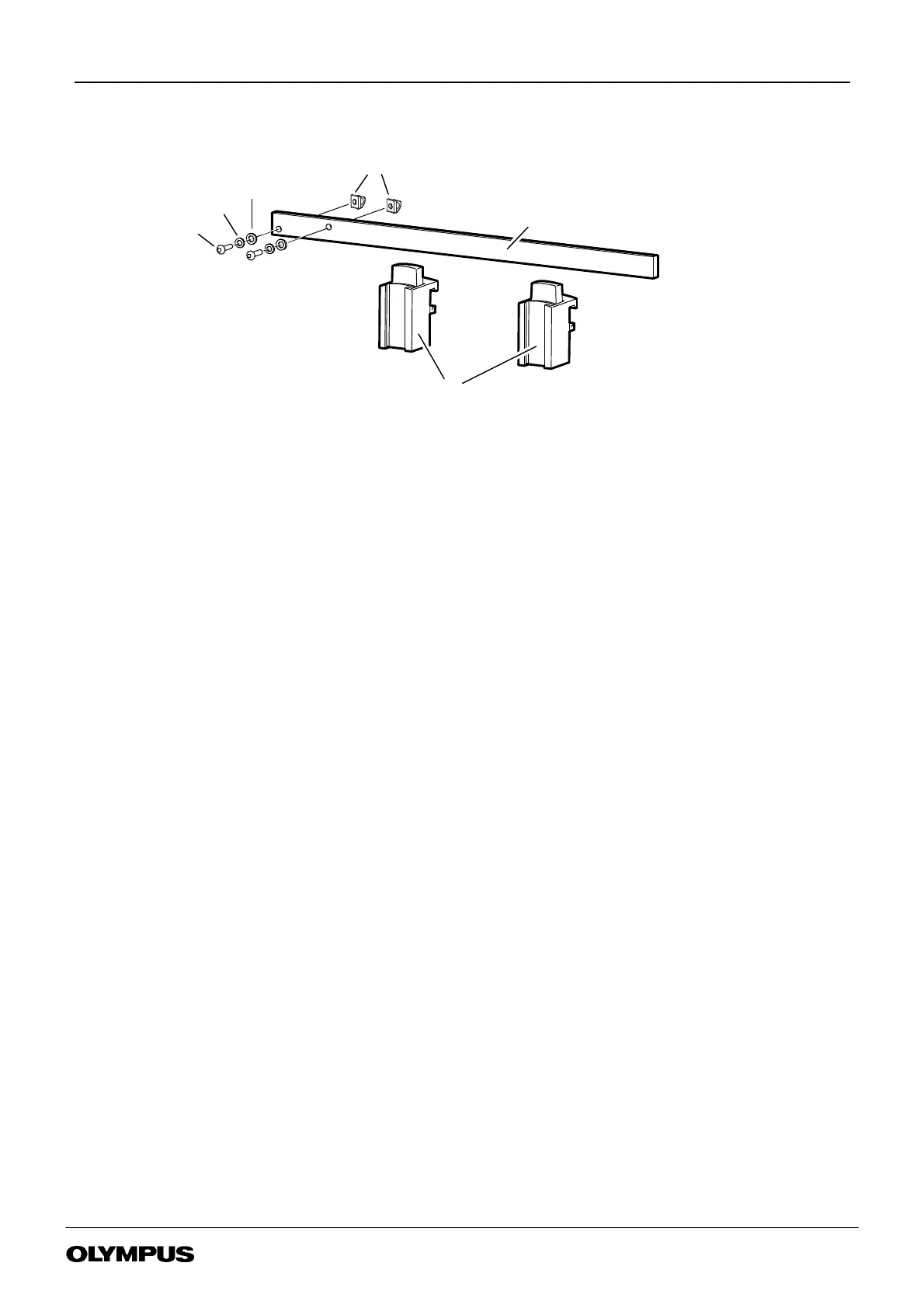

FIGURE 8-9
MAJ--190 EQUI PMENT SUPPORT RAI L
4
2
5
2
6
2
7
2
1
MAJ- 190 EQUIPMENT SUPPORT RAIL p/no K10001115
Item Description Part No Qty
Torque
Remarks
1 ACCESSORY BAR ................................... -- 1 -- A
2 EQUIPMENTRAILCLAMP ............................. K10002819 2 -- --
3SPARE
4 SCREWM6x20HEXSKTBUTTHD ..................... K10001098 2 -- --
5 WASHERM6 ....................................... 3920333 2 -- --
6 WASHERCRINKLEM6 ............................... 3072622 2 -- --
7 SPRINGNUTM6 .................................... K7503840 2 -- --
8 ALLENKEY4MMA/FSHORT........................... 3066011 1 -- NS
9SPARE
10 SPARE
11 MAJ--190 INSTRUCTIONS FOR USE ..................... K10002820 1 -- NS
12 SPARE
REMARKS
NS Not Shown
A Repair by replacing whole accessory.
