Olympus WM-DP1 - Maj- 192 Side Shelf; Maj- 195 Cable Retaining Hook

Page 53 of 76
Issue 20 : July 2012
WM--P1 SERIES WORKSTATIONS
8.10 MAJ- 192 SIDE SHELF

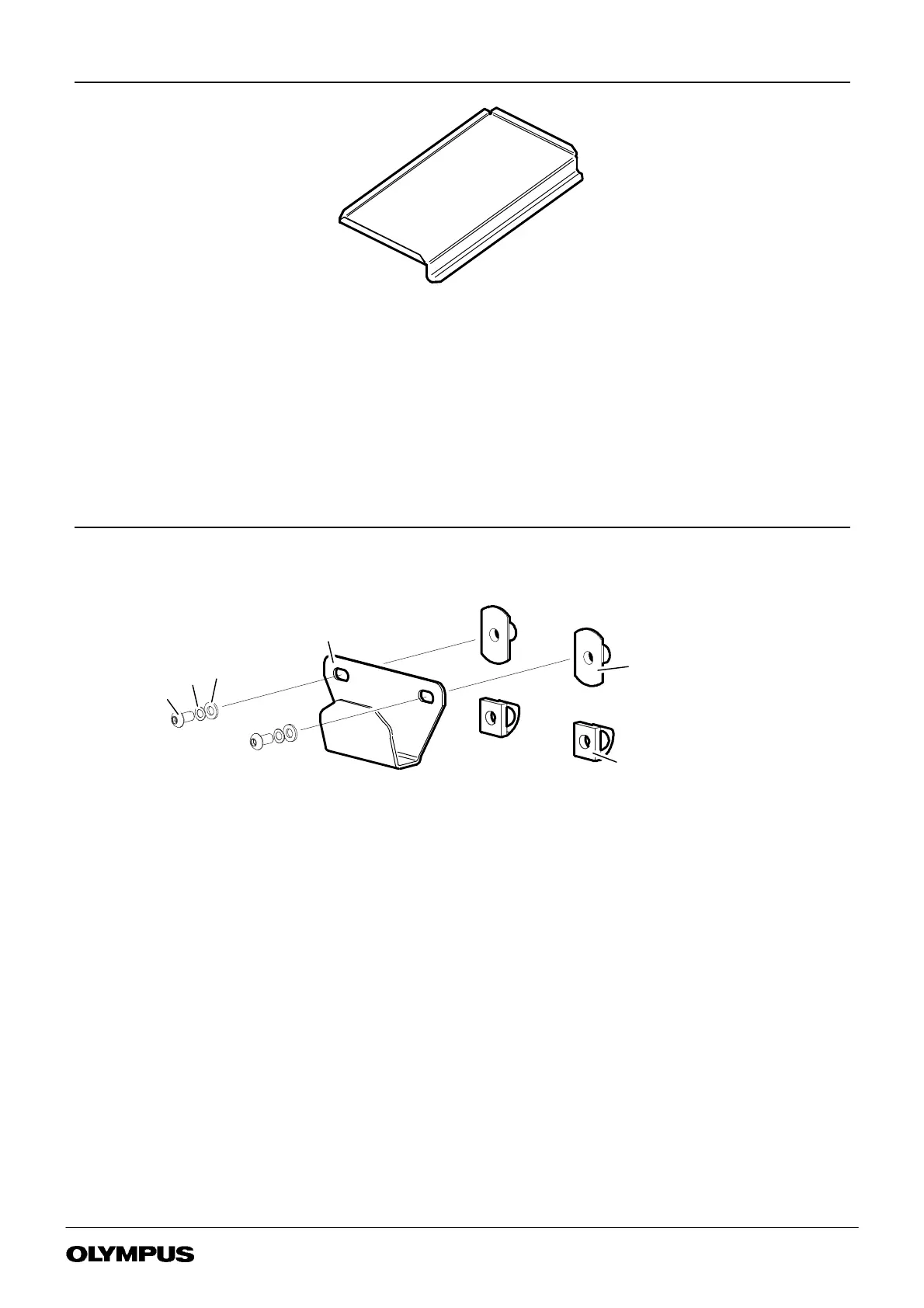

FIGURE 8-10
MAJ--192 SI DE SHELF
MAJ- 192 SIDE SHELF p/no K10001117
Item Description Part No Qty
Torque
Remarks
1 SIDESHELFSCREENPRINTED ........................ K10001117 1 -- --
2 INSTRUCTIONS FOR USE MAJ--192 ..................... K10003583 1 -- NS
REMARKS
NS Not Shown
8.11 MAJ - 195 CABLE RETAINING HOOK
FIGURE 8-11
MAJ--195 CABLE RETAINING HOOK
3
2
4
2
2
2
1
7
2
5
2
MAJ- 195 CABLE RETAINING HOOK p/no K10001120
Item Description Part No Qty
Torque
Remarks
1 CABLEHANGERBRACKET ............................ K10001120 1 -- A
2 SCREWM6x12HEXSKTBUTTHD ..................... 3920326 2 -- --
3 WASHERM6 ....................................... 3920333 2 -- --
4 WASHERCRINKLEM6 ............................... 3072622 2 -- --
5 SPRINGNUTM6 .................................... K7503840 2 -- --
6 ALLENKEY4MMA/FSHORT........................... 3066011 1 -- NS
7 JETNUTM6SINGLENUTPLATE ........................ 3920573 2 -- --
8 MAJ--195 INSTRUCTIONS FOR U SE ..................... K10002790 1 -- NS
REMARKS
A Repair by replacing whole accessory.
NS Not Shown
