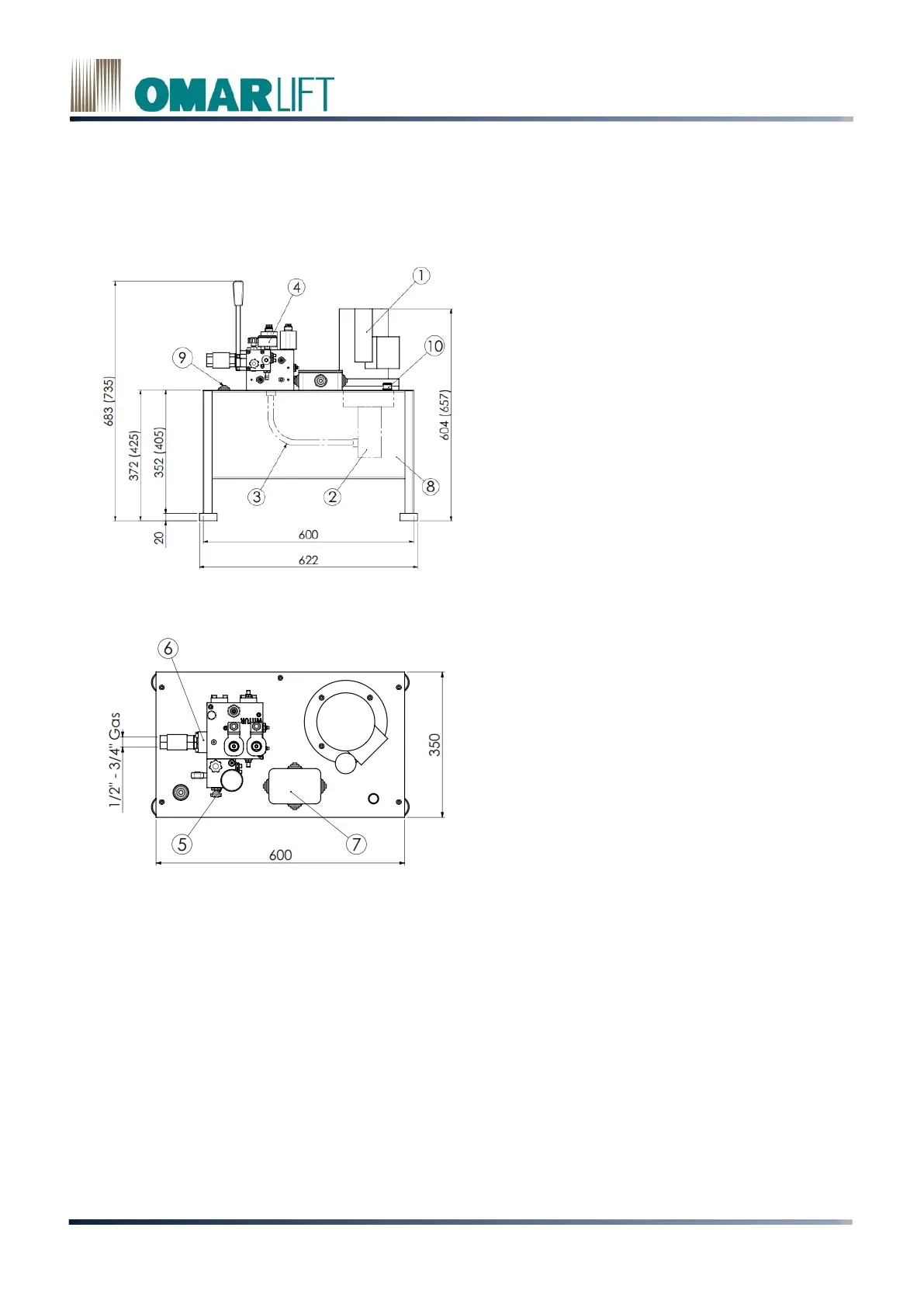

2.2 Dimensions, Homelift System Range
2.2.1 Homelift control unit
Figure 2
The dimensions for the C50 tank are shown between brackets.
Main components:
1 Outer motor
2 - Pump
3 Delivery pipe
4 Pressure gauge
5 Hand pump
6 Filter block
7 Electrical box
8 - Tank
9 - Oil filling plug
10 Oil dipstick
Figure 1
Figure 2
