Possibili cambiamen
ti senza preavviso!
D846MGB -Rev. 04
6/
14
2.2.2

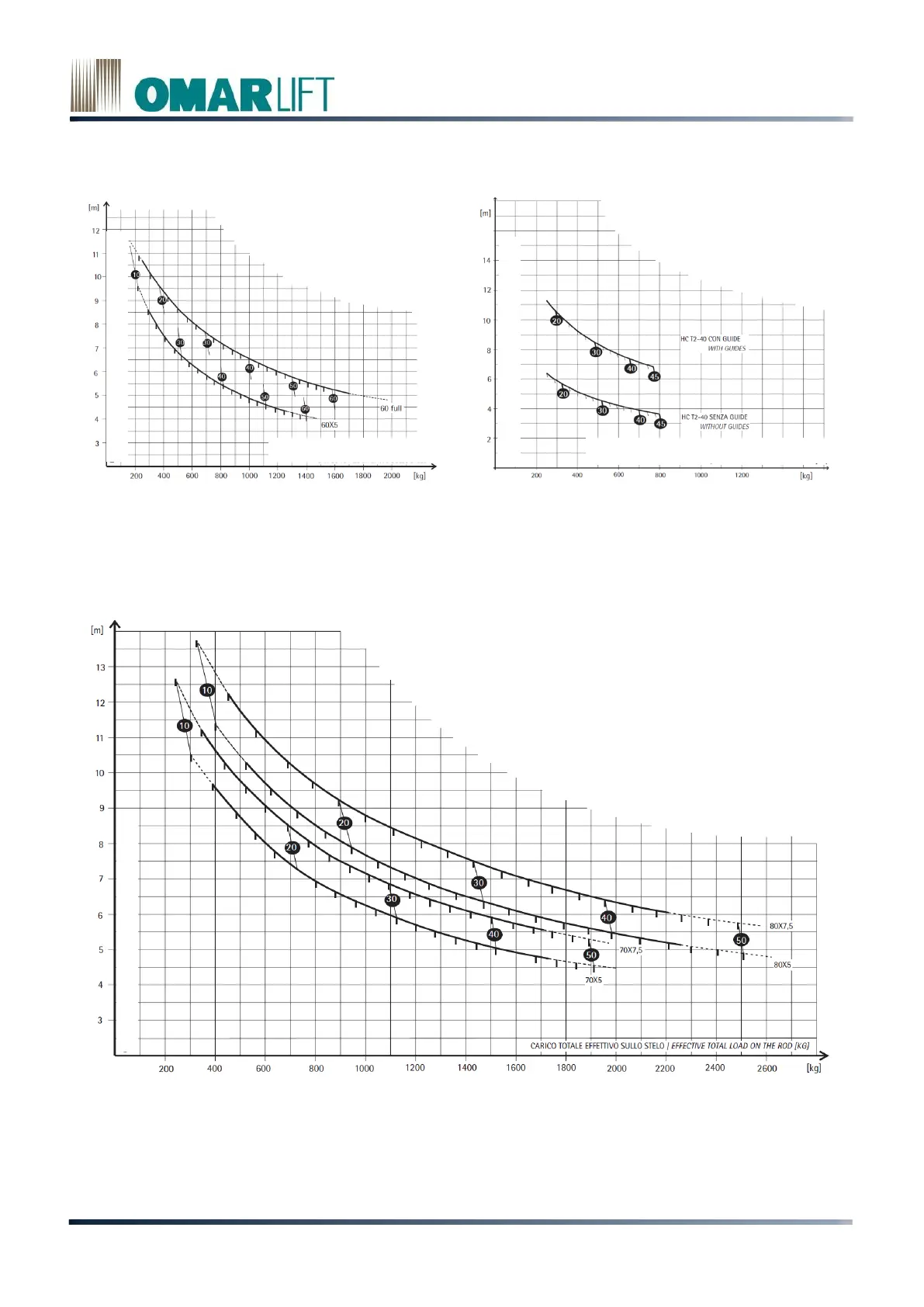

System range
Figure 3
Figure 4
Static pressure
[
b
a
r]
Rod total stroke + any pulley until axis
Effective total load on the rod
[k
g]
Rod total stroke + any pulley until axis
Effective total load on the rod [kg]
Rod total stroke + any pulley until axis
Static pressure
[
b
a
r]
Static pressure
[
b
a
r]
5
7
Table of Contents
Table of Contents
2
Contents
2
General Information before Installation
3
Description of the Terminology
3
Description and Operating Principle
3
Responsibility and Warranty
3
Health and Safety Warnings
3
Cleaning and Pollution Precautions
4
Installation Manual
4
Installation Manual - Mechanical Installation
4
General Information
4
Dimensions, Homelift System Range
5
Homelift Control Unit
5
System Range
6
1-Speed HOMELIFT - Hydraulic and Speed Diagram
8
Diagram of 1-Speed Descent-Ascent Homelift
9
Diagram of 2-Speed Descent-Ascent Homelift
9
Use and Maintenance
9
Piping and Hydraulic Connections
9
Maintaining the Hydraulic System
9
Wiring
9
Connection Box
9
The Connection Box Is Situated on the Control Unit Cover Next to the Valve Block
9
Calibration and Adjustment of HOMELIFT Valve
10
Homelift Valve, 1 Speed
10
Homelift Valve, 2-Speed
10
Maintenance, Inspection, Repair and Safety Emergency
11
General Points
11
EM Manual Emergency Valve
11
Emergency Manoeuvre with Hand Pump
12
Leaks Inside the Valves Unit
12
Replacing VBP Valve Seal
12
