OmarLift C40 User Manual

Possibili cambiamenti senza preavviso!
D846MGB -Rev. 04 8/14

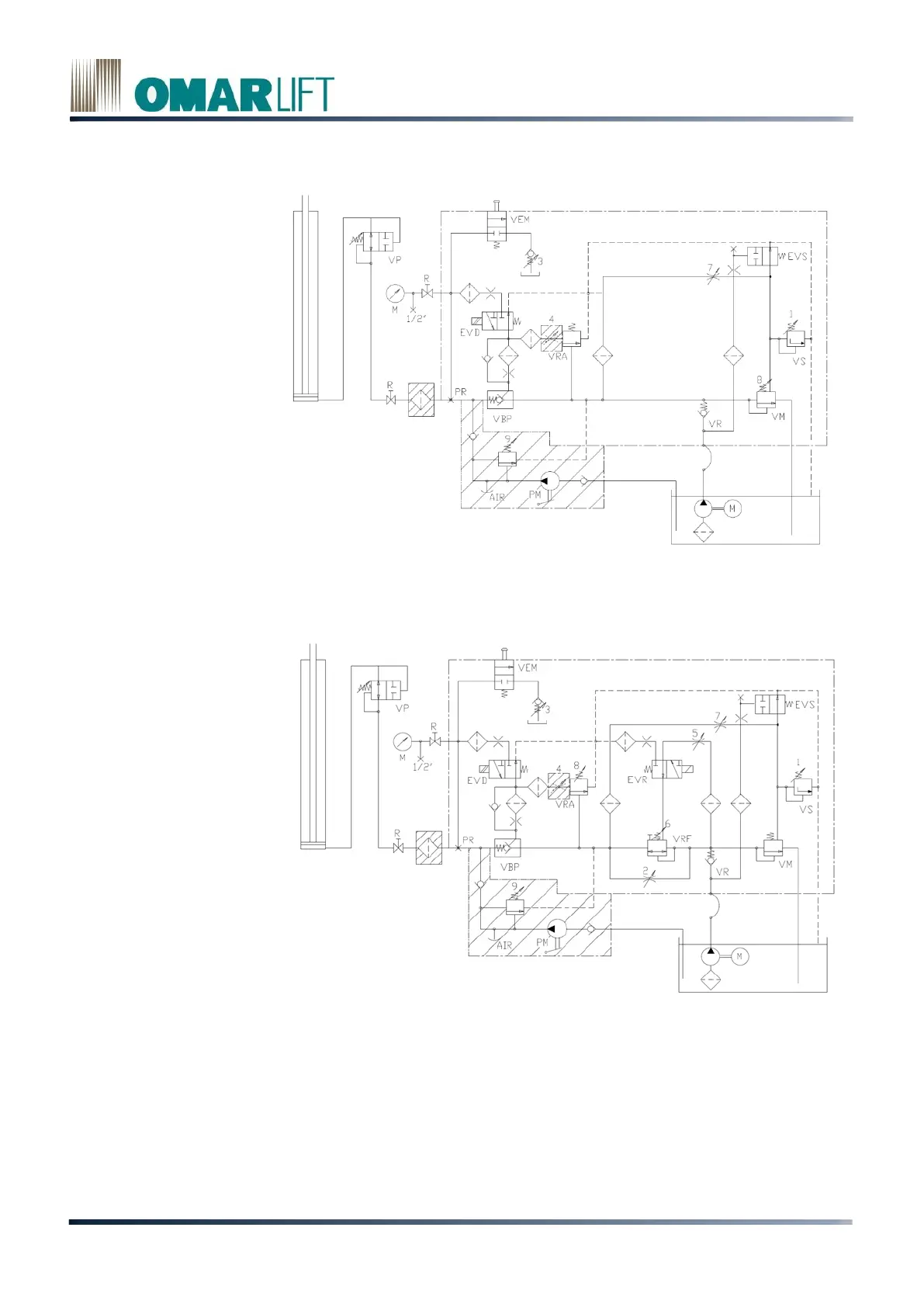

2.2.3 1-speed HOMELIFT - Hydraulic and speed diagram
Figure 5
2.2.4 2-speed Homelift - Hydraulic and speed diagram
Figure 6
<
LEGEND:
1-
MAXIMUM PRESSURE
VALVE CALIBRATION
2-
LOW SPEED
ADJUSTMENT
3-
ADJUSTMENT OF
COUNTERPRESSURE
AND ROPE ANTI-
FLEETING
4-
PRESSURE VALVE
REACTION TEST
5-
CHOKE DEVICE FOR
DECELERATING
FROM HIGH TO LOW
SPEED
6-
ASCENT SPEED
LIMITER
7-
CHOKE DEVICE FOR
PRESSURISING AND
ASCENT START
8-
DESCENT SPEED
ADJUSTMENT
9-
CALIBRATION OF
HAND PUMP
PRESSURE
