Omega Digitech M202 - Device Elements Overview; Connectivity Ports; Front Panel Interface

USER MANUAL
PAGE 4
Ωmegadigitech ©2018
M202

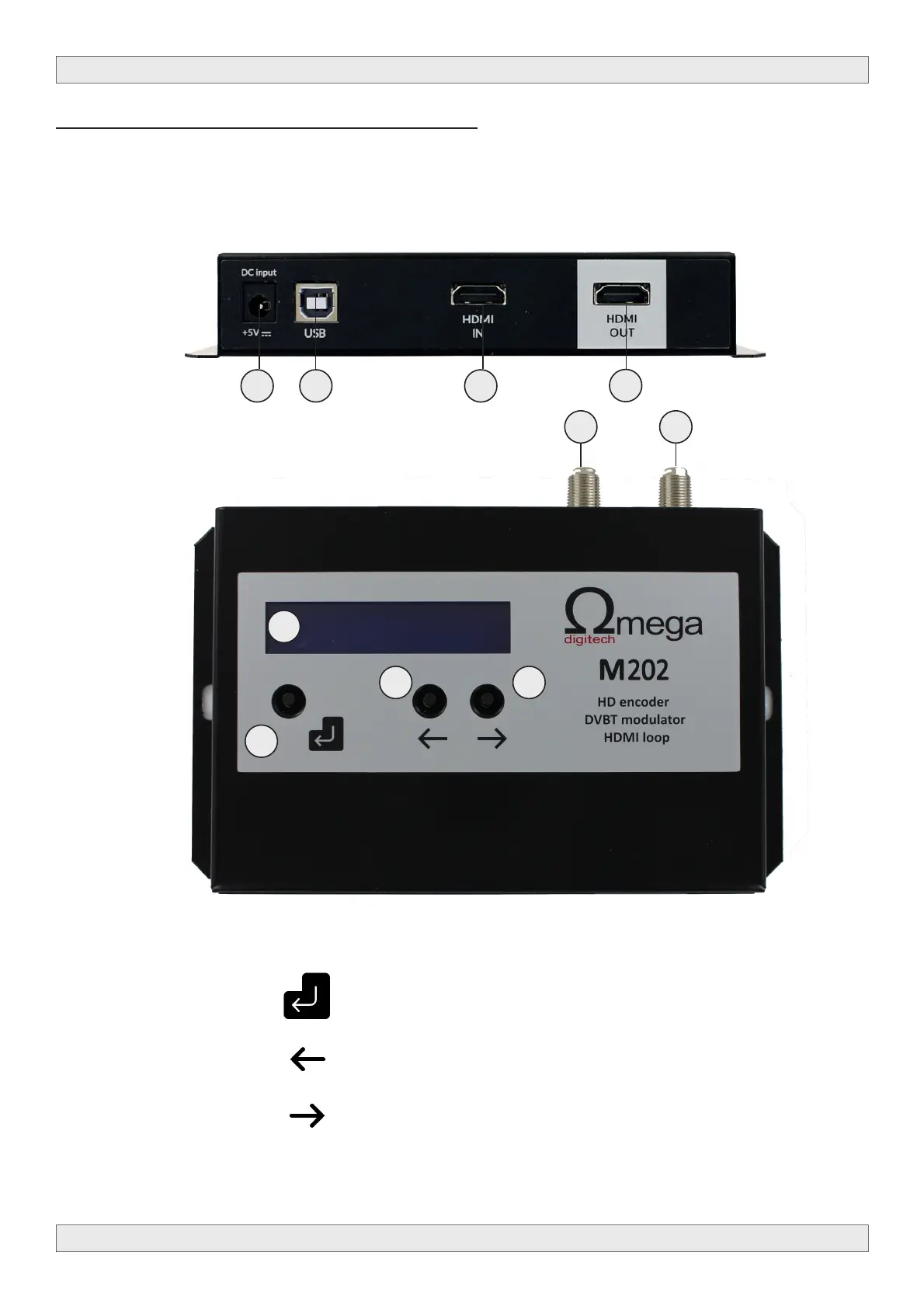

2 - Description of the different elements
A1 Display
T1 ENTER button
T2 LEFT button
T3 RIGHT button
C1 Power supply input (5V/2A)
C2 USB input (PC programming)
C3 RF input
C4 RF output
C5 HDMI input
C6 HDMI output
C1 C2 C5
C6
T1
T2 T3
A1
C4 C3
