Assembly - Chronograph module for Calibre 3220
OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-024-E - C - 3220

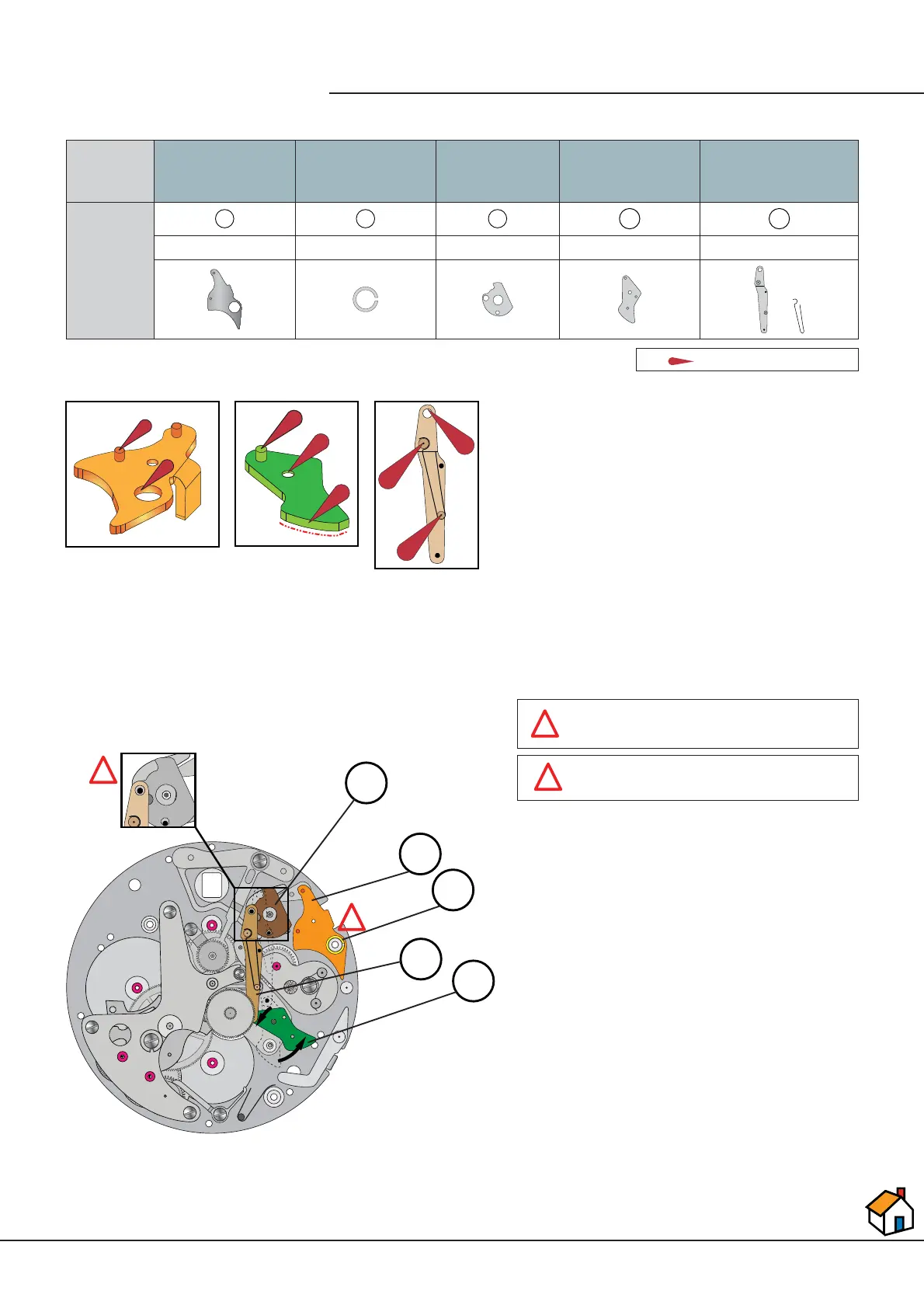

1.0 Parts for assembling
Movement
holder
Operating lever,
2 functions
Maintaining ring Fixing shuttle Fly-back yoke bolt
Connecting rod +
Connecting yoke
lever spring
Ref.
1
2
3
4 5
Ref. 55.041 Ref. 1175 Ref. 55.186 Ref. 55.341 Ref. 55.269 + 65.074
2.0 Pre-lubrication
3.0 Order of assembly
5
2
3
4
1
!
!
Make sure the connecting rod is
positioned correctly
Molycote DX
!
Check that the control is free after
fitting the maintaining ring.
!
